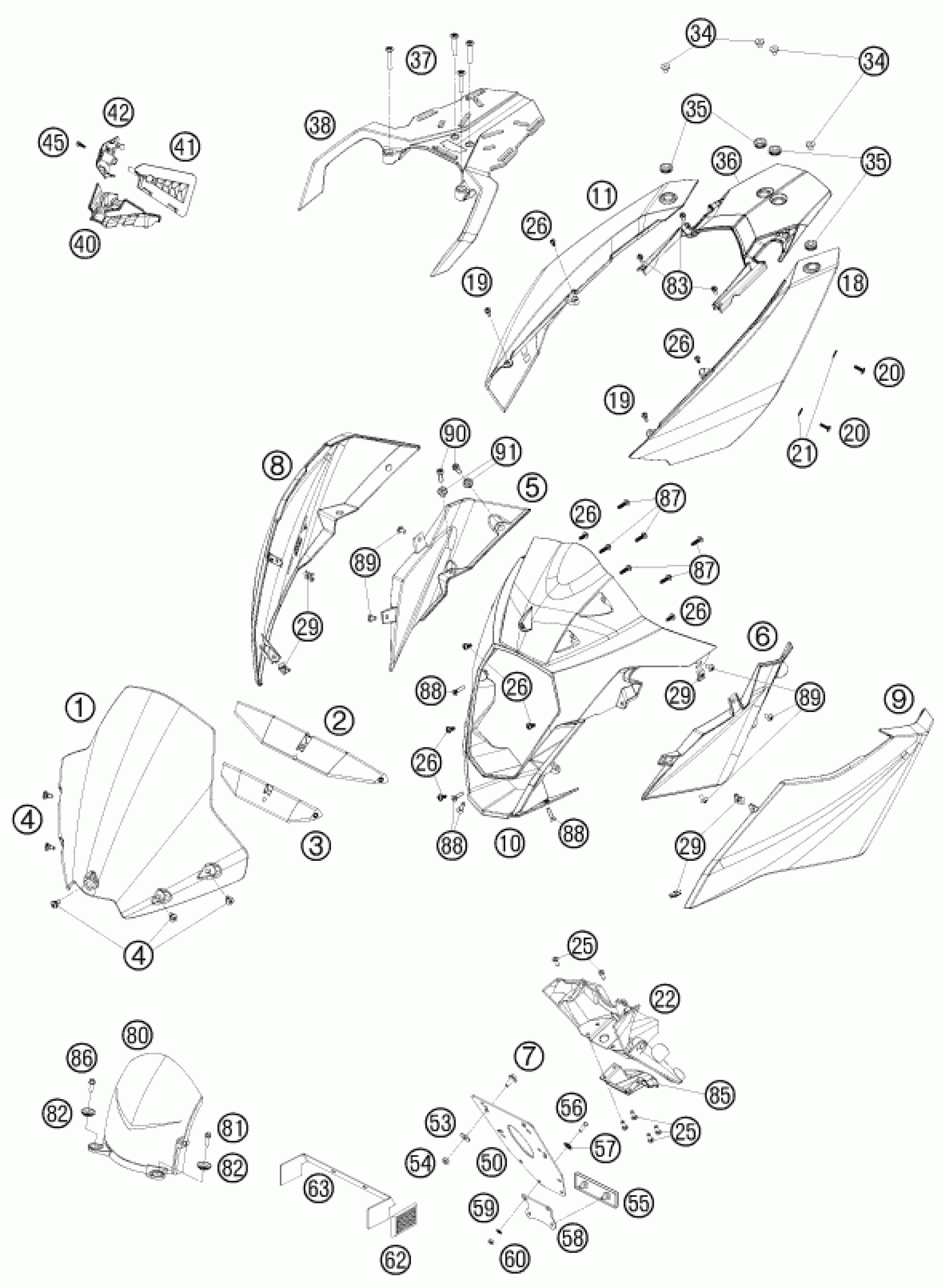

KTM 990 Supermoto T orange 09 <2009> MASK, FENDERS Diagram

#

Description
Price

5

MASKSPOILER INNER PART R/S 09

62008003050

Unavailable

9

MASK SPOILER L/S

6200800200033A

Unavailable

8

MASK SPOILER R/S

6200800300033A

Unavailable

11

SIDE COVER R/S REAR

6260804210033A

Unavailable

18

SIDE COVER L/S REAR

6260804110033A

Unavailable

19

special screw M5x17

69008021060

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

Unavailable

25

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

26

EJOT PT screw K50x12

0081050121

Unavailable

29

clip nut M5

69008021080

Unavailable

2

WIND SHIELD SUPPORT UPPER

62008008050

Unavailable

3

WIND SHIELD SUPPORT LOWER

62008008060

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

Unavailable

36

FENDER REAR BLACK 08

6260801300030

Unavailable

37

countersunk screw M8x45 TX45

0019080456

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

41

COVER STEARING HEAD UP.L/S

62603085000

Unavailable

42

COVER STEARING HEAD UP.R/S

62603086100

Unavailable

45

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

50

license plate mouning plate

60012081200

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable

80

SPLASH PROTECT. 05

61008014000

Unavailable

81

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

82

BUCKET

72210079000

Unavailable

83

HH collar screw M6x12 TX30

0025060126

Unavailable

85

COVER NUMB. PLATE CARRIER

62608015001

Unavailable

86

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

6

MASKSPOILER INNER PART L/S 09

62008002050

Unavailable

10

HEADLIGHT MASK

6200800100030

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

COLLAR BUSHING 8,2X12X20X9 03

60012008002

Unavailable

87

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

88

COUNTERSUNK SCREW ISA25 M5X20

0019050201

Unavailable

89

SCREW TORX M5X10 05

58605083010

Unavailable

90

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

91

BUSHING MUD FLAP 07

75001094010

Unavailable

38

BAGGAGE CARRIER CPL

62012010033

Unavailable

63

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

62

SIDE REFLECTOR RED REAR

16512180100

Unavailable

23

HH collar screw M6x13 TX30

0024060136

Unavailable

4

special screw M5x12

69008021160

Unavailable

1

WIND SHIELD

62008008000

Unavailable

20

EJOT ALTRACS SCHR.WN5151 50X16

62008043000

Unavailable

21

Washer tail section UT D=14mm

75008023000

Unavailable
