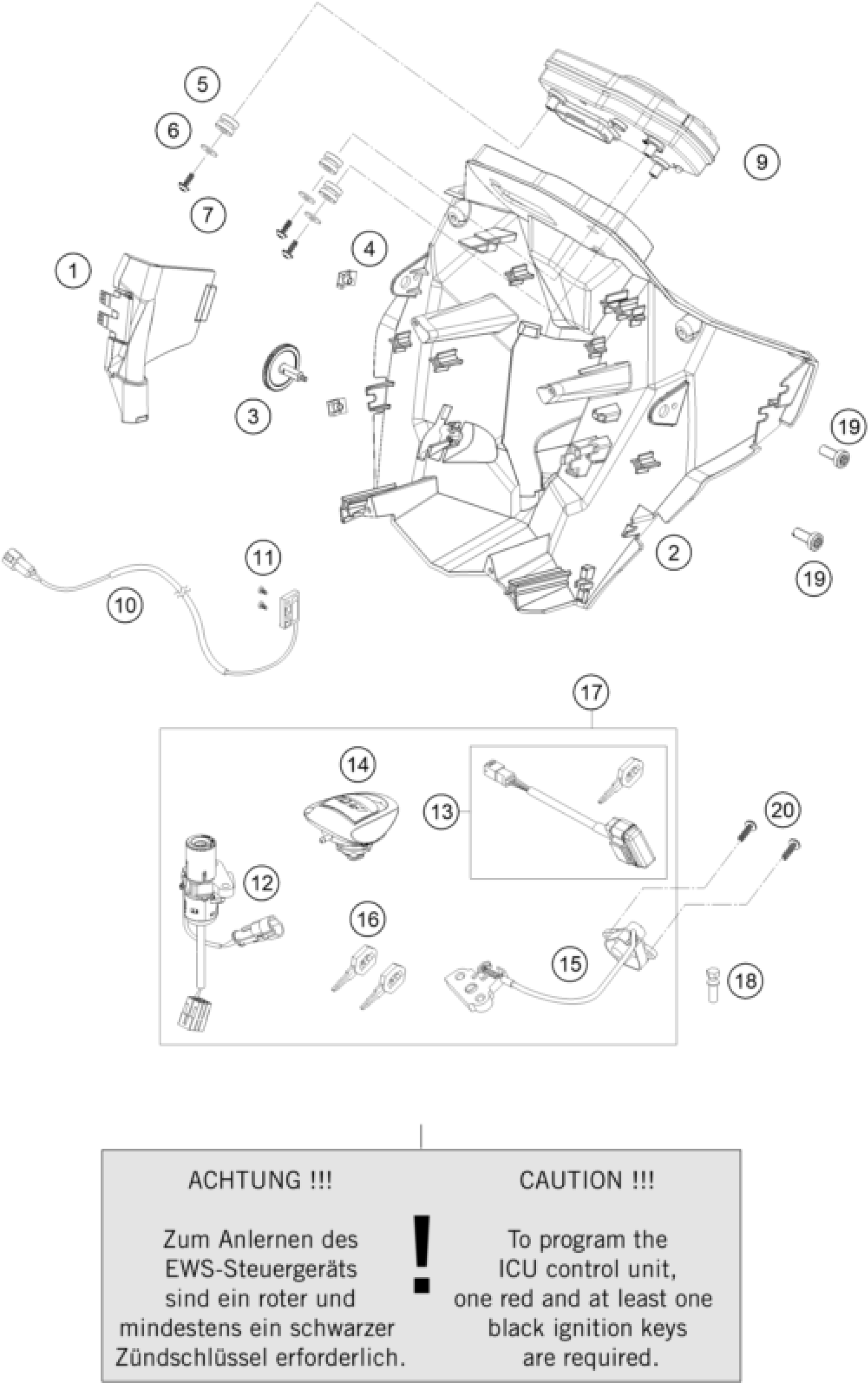

KTM 990 Supermoto T orange 09 <2009> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

20

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

1

COVER COCKPIT SUPPORT

62014010050

Unavailable

2

COCKPIT SUPPORT

62014010000

Unavailable

3

ADJUSTING KNURL COCKP. SUPPORT

62014010060

Unavailable

4

clip nut M5

69008021080

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable

7

EJOT PT screw K50x12

0081050121

Unavailable

9

SPEEDOMETER 07

61114069100

Unavailable

10

SPEEDOMETER SENSOR 06

62514068100

Unavailable

11

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

12

IGNITION LOCK

62011066000

Unavailable

13

IMMOBILIZER 990SM W. MASTERKEY

62611021000

Unavailable

14

TANK PLUG

58407008300

Unavailable

15

SEAT LOCK

62607050000

Unavailable

17

LOCK SET

62011066044

Unavailable

18

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

19

SHCS M8x20 TX45

0035080206S

Unavailable

16

KEY WITH TRANSPONDER

62611067000

Unavailable
