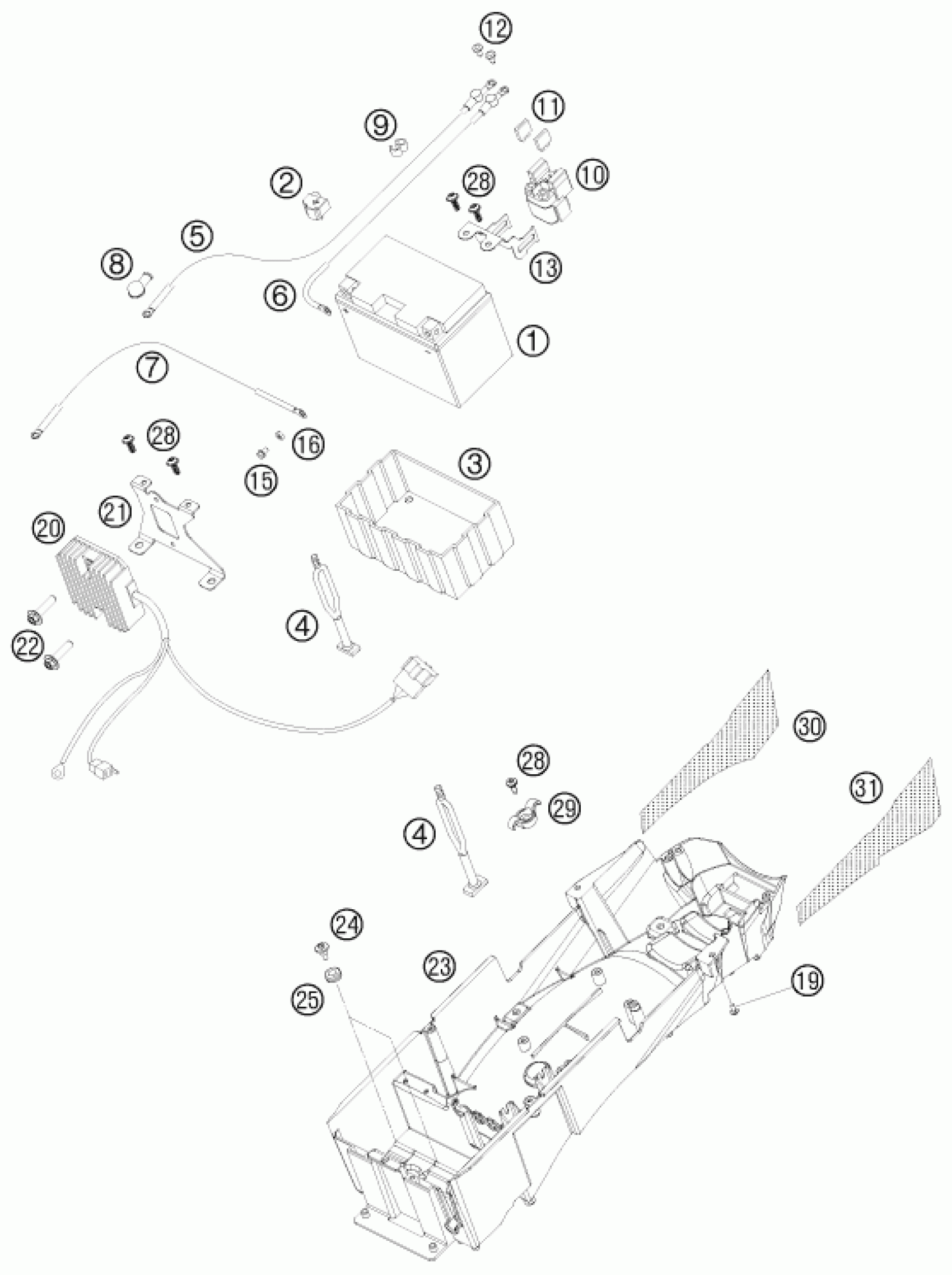

KTM 990 Supermoto T orange 09 <2009> BATTERY Diagram

#

Description
Price

19

HH collar screw M6x13 TX30

0024060136

Unavailable

28

EJOT PT screw K50x12

0081050121

Unavailable

29

SUPPORT TOOL SET 05

62508021000

Unavailable

30

THERMAL PROTECTON FOIL R/S 07

62508019360

Unavailable

31

THERMAL PROTECTON FOIL L/S 07

62508019250

Unavailable

24

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

25

RUBBER SLEEVE D=12MM

41001052000

Unavailable

23

REAR END LOWER PART 08

62508019400

Unavailable

1

BATTERY 12V/11AH 03

60011053000

Unavailable

2

COVER POSITIVE POLE 06

62511059160

Unavailable

3

BATTERY COVER 96

58411053050

Unavailable

4

RUBBER L=145MM

50303018000

Unavailable

5

STARTER CABLE L=650MM 05

62511059000

Unavailable

6

BATTERY CABLE L=125MM 05

62511059050

Unavailable

7

GROUND CABLE L=650MM 05

62511097000

Unavailable

8

Rubber grommet, starter port 0

60040009000

Unavailable

9

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

10

Starter reley 12V 99

58211058000

Unavailable

11

Plug-in fuse, big 30A

58011109130

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

13

BRACKET START RELAY 05

62511058050

Unavailable

15

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

16

Hex. nut DIN 934 M6

0934060003

Unavailable

20

VOLTAGE REGULATOR

62511034100

Unavailable

21

BRACKET VOLTAGE REGULATOR 05

62511037000

Unavailable

22

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable
