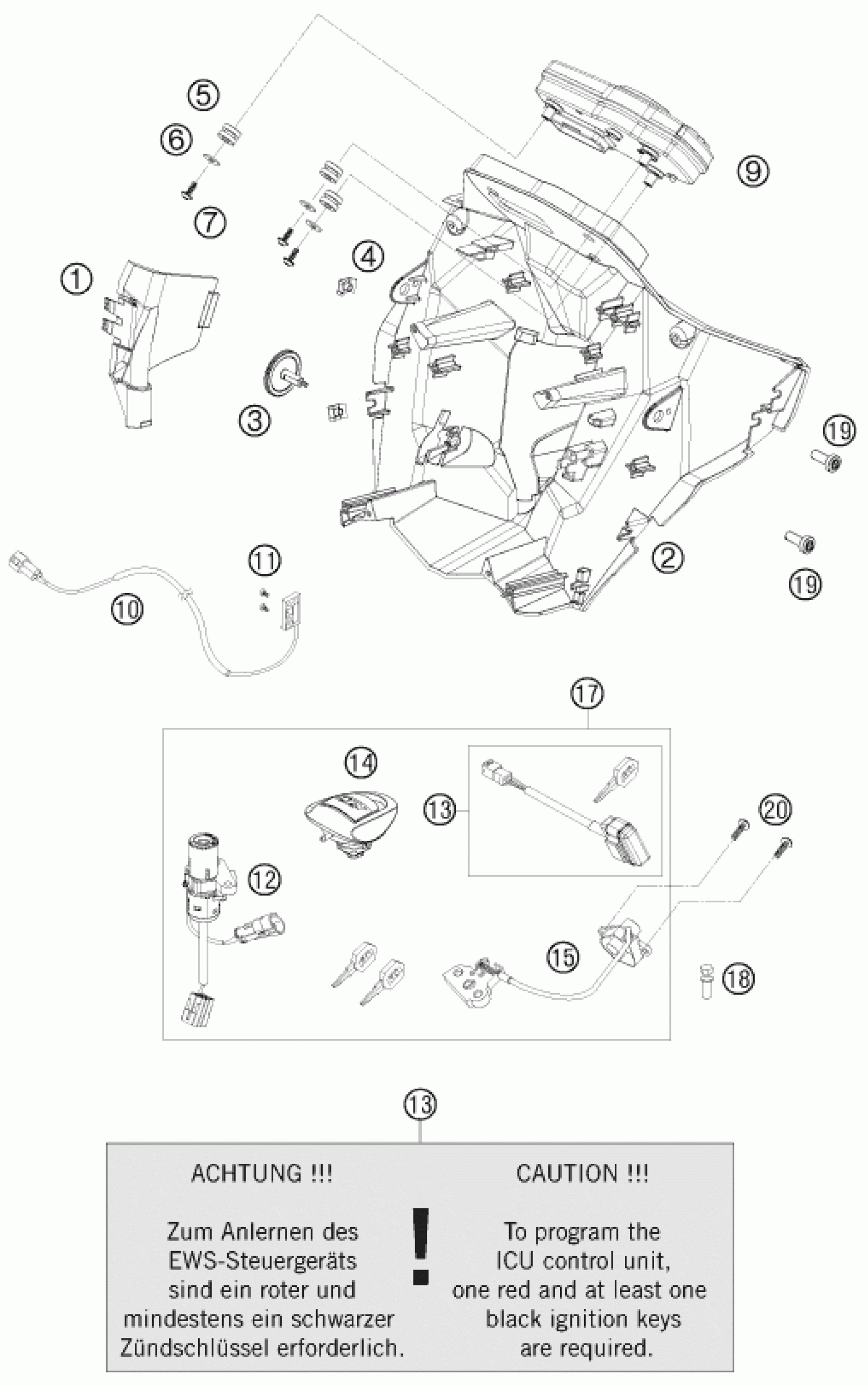

KTM 990 SUPERMOTO T LIM. EDIT. 10 <2010 INSTRUMENTS / LOCK SYSTEM Diagram

COVER COCKPIT SUPPORT

62014010050

$9.15

COCKPIT SUPPORT

62014010000

$52.73

ADJUSTING KNURL COCKP. SUPPORT

62014010060

$19.16

clip nut M5

69008021080

$3.08

rubber grommet 16x10.8x3

58214069051

$5.23

washer DIN 9021 A - 5.3

0021050003

$1.49

EJOT PT screw K50x12

0081050121

$2.05

SPEEDOMETER 10

61114169300

$517.05

SPEEDOMETER SENSOR 06

62514068100

$94.52

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

IGNITION LOCK

62011066000

Unavailable

IMMOBILIZER 990SM W. MASTERKEY

62611021000

$463.46

TANK PLUG

58407008300

$287.22

SEAT LOCK

62607050000

Unavailable

LOCK SET

62011066044

$574.39

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

SHCS M8x20 TX45

0035080206S

$5.32

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

KEY WITH TRANSPONDER

62611067000

Unavailable
