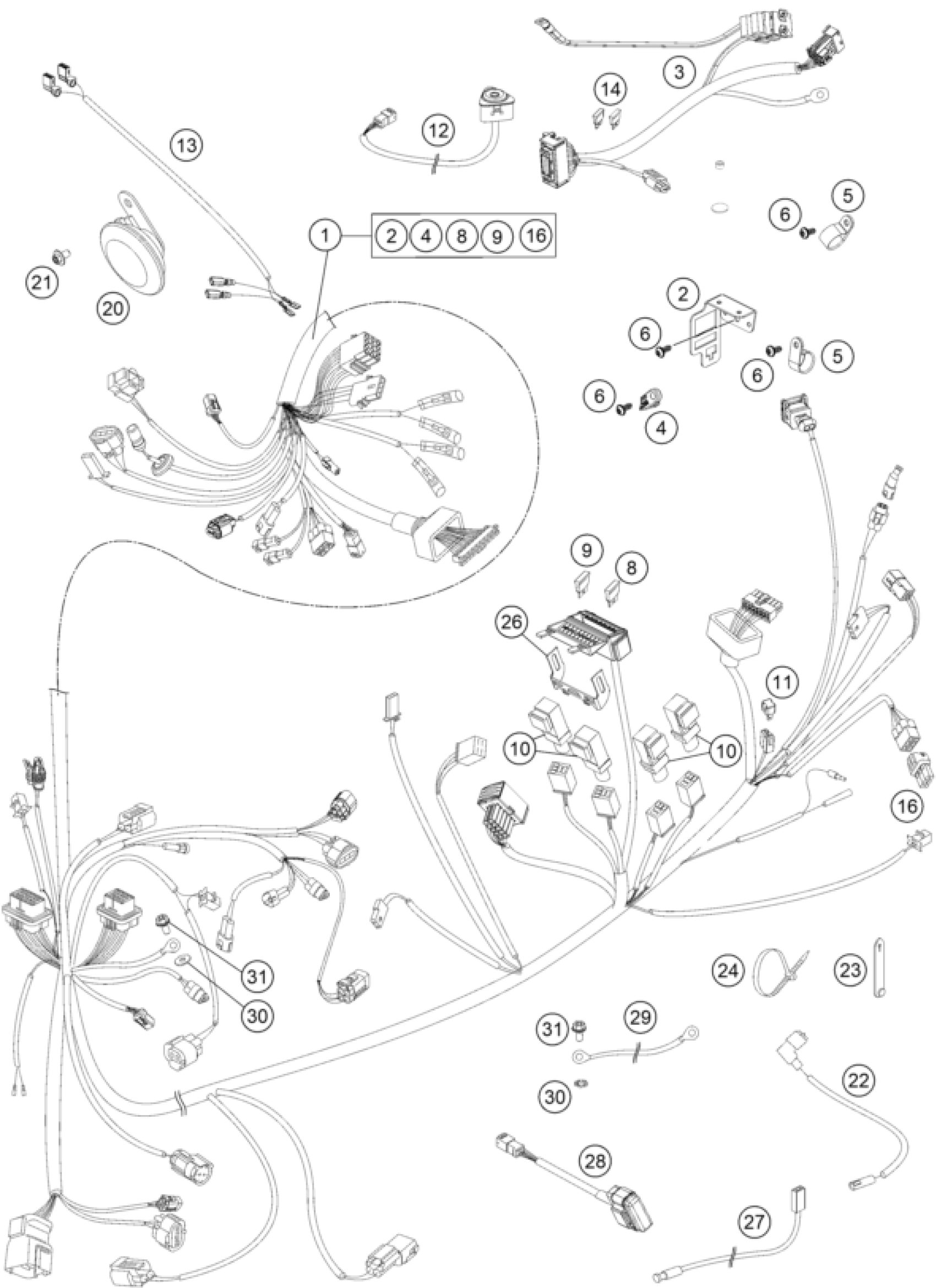

KTM 990 SUPERMOTO T BLACK ABS 2013 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS

62111075000

$796.72

2

PLUG SUPPORT PANEL

62011083000

$21.50

3

WIRING HARNESS ABS

62111079000

$258.05

4

BRACKET CABELFIXING

62011094000

$1.73

5

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

6

EJOT PT screw K50x12

0081050121

$2.05

8

FUSE 15A 07

75011088015

Unavailable

9

FUSE 10A 07

75011088010

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

DIODE S3H-15 97

58411096100

$9.81

12

HAZARD WARNING BUTTON

60211022000

$149.87

13

CABLE FOR SOCKET SMT

62111042060

$5.23

14

Plug-in fuse, big 30A

58011109130

$2.05

16

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

20

DC HORN 05

62511060000

$30.85

21

HH collar screw M6x15 TX30

0024060156

$3.08

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

23

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

24

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

26

BRACKET FUSE BOX

62111087060

$9.72

27

TEMPERATURE SENSOR 07

61111018000

$31.59

28

STARTER INTERLOCK

61111020000

$97.89

29

GROUND CABLE 100MM 06

60111097000

$7.92

30

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

31

HH collar screw M6x10 TX30

0025060106

$3.08
