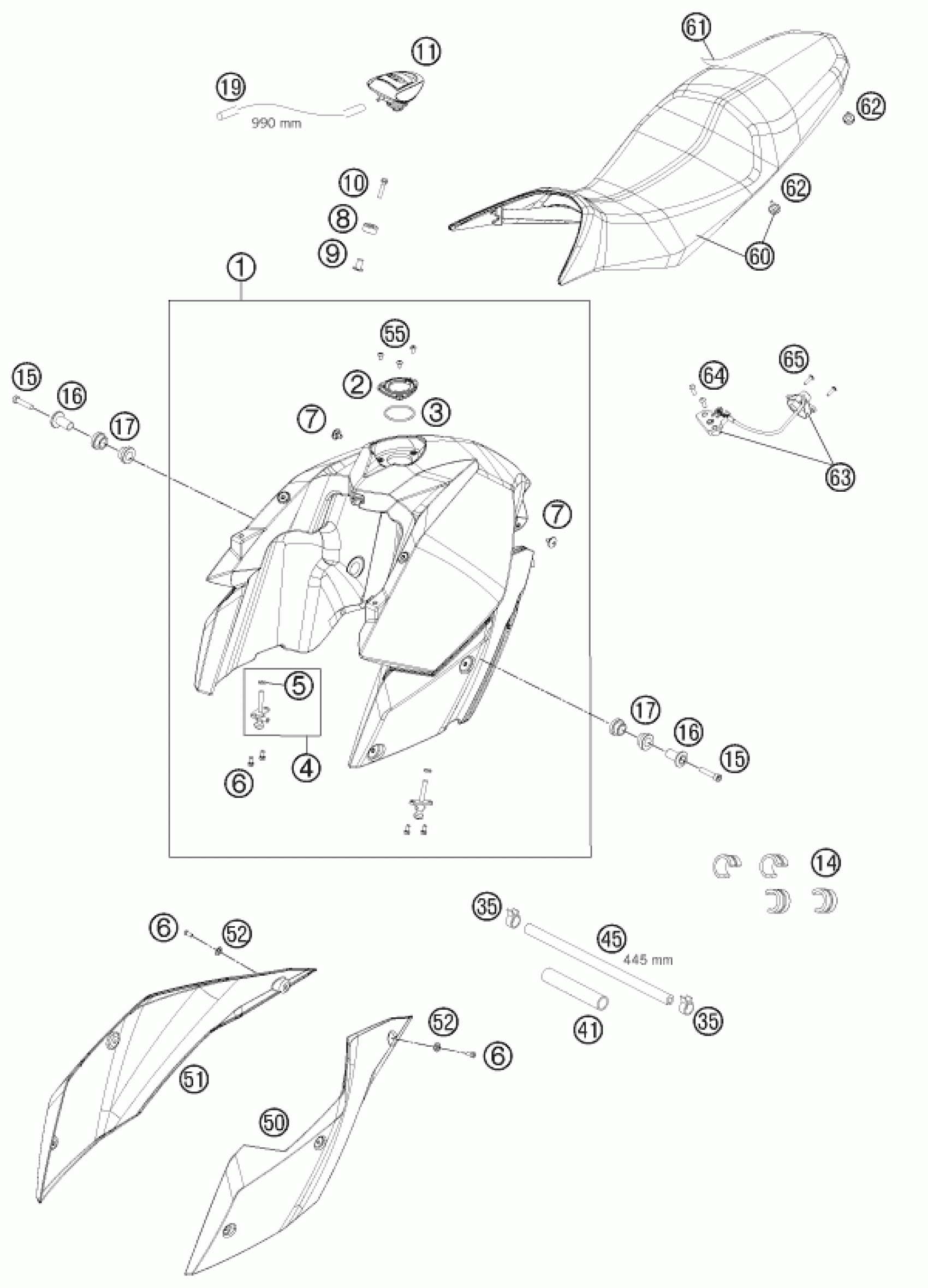

KTM 990 SUPERMOTO T BLACK ABS 2013 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. BLACK

6200701304430B

Unavailable

2

CLOSURE FLANGE

76507008050

Unavailable

3

O-ring 50.00X3.00 VITON

0770050030

Unavailable

4

Fuel cock cmpl.

58507003200

Unavailable

5

O-RING 1,78x10,82x14,38 2-013

0770020130

Unavailable

6

SHCS ISO 14580 M6x12

014580060126

Unavailable

7

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

8

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

9

COLLAR BUSHING 9,5X18X19,8X1,5

62503009000

Unavailable

10

HH collar screw M6x30 TX30

0025060306

Unavailable

11

TANK PLUG

58407008300

Unavailable

14

SPACER FUEL TANK 05

61007014000

Unavailable

15

AH collar screw DIN0912 M8x40

0912080403

Unavailable

16

collar bushing, bearing, outsi

61007060000

Unavailable

17

collar bushing, front tank hol

61007065000

Unavailable

19

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

35

YDNAC CLAMP 12,5MM

62607017000

Unavailable

41

THERMAL PROTECTION L=105MM 05

62507016050

Unavailable

45

HOSE 6X13 L=445 MM 08

60007216445

Unavailable

50

SPOILER L/S BLACK -BRILL. 13

6260805000030C

Unavailable

51

SPOILER R/S BLACK-BRILL. 13

6260805100030C

Unavailable

52

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

55

SCREW TORX M5X10 05

58605083010

Unavailable

60

SEAT

62007040200

Unavailable

61

SEAT COVER

62007040250

Unavailable

62

Distance rupper airbox 03

60006001021

Unavailable

63

SEAT LOCK

62607050000

Unavailable

64

BHCS ISO 7380 M6X18

0738060181

Unavailable

65

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
