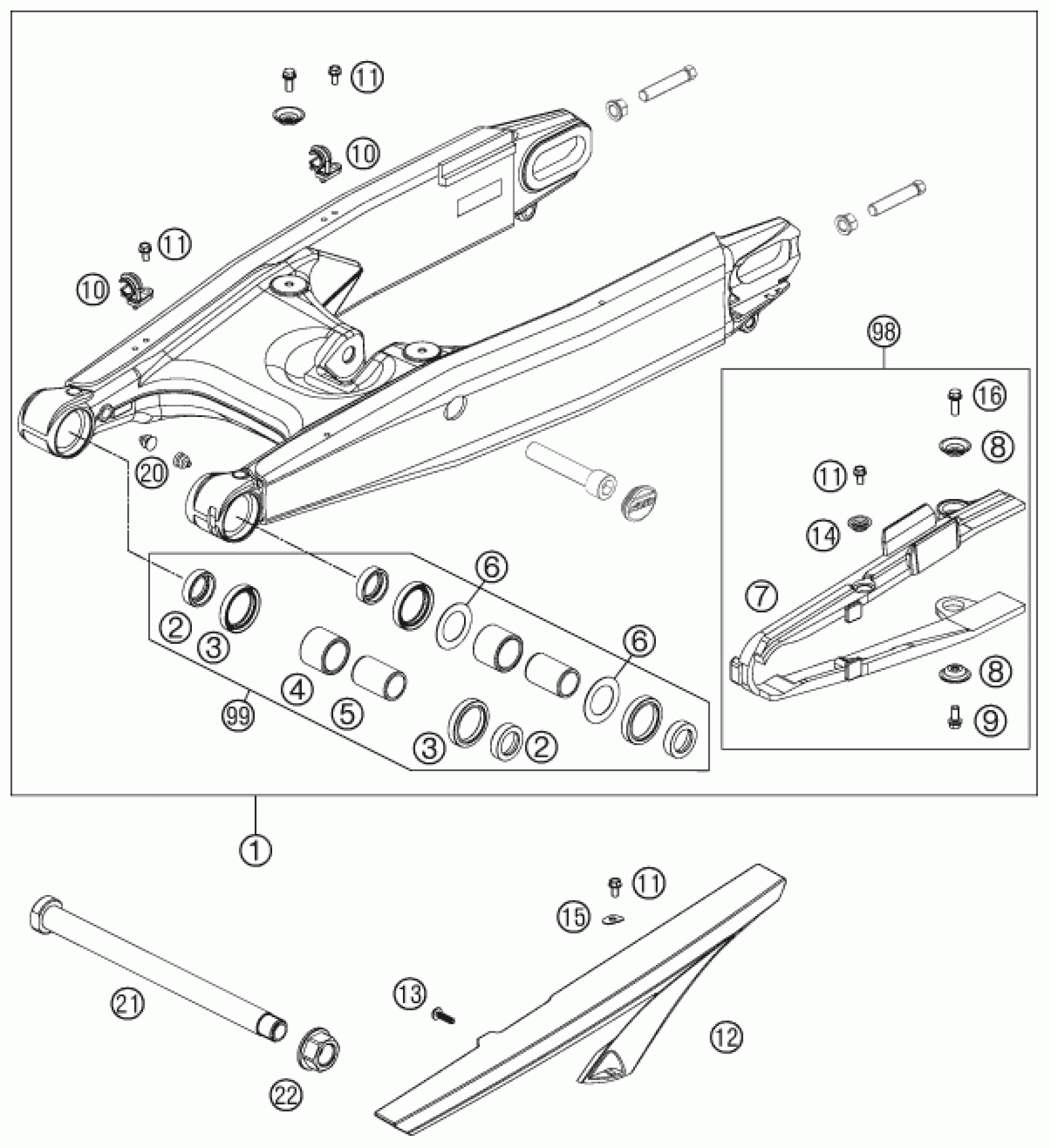

KTM 990 SUPERMOTO T BLACK ABS 2013 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. SM-R SD-R 07

6100403004433

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

Unavailable

3

Radial shaft seal 30X40X7

0760304073

Unavailable

4

INNER RING JR20X25X38,5 03

60004032000

Unavailable

5

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

6

Stop disk 03

60004033000

Unavailable

7

CHAIN SLID.GUARD SWINGARM 10

63004066100

Unavailable

8

BUCKET

72210079000

Unavailable

9

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

10

RET. CLAMP F. BRAKE HOSE

60104042000

Unavailable

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

12

CHAINGUARD 05

61004060000

Unavailable

13

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

14

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

15

WASHER CHAINGUARD 05

61004060050

Unavailable

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

20

PLUG SFL12 GREY 05

60004042000

Unavailable

21

SWINGARM BOLT CPL.

60004037244

Unavailable

22

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

98

CHAIN GUARD KIT

60004066110

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable
