Description

Price

1

AXLE CLAMP R/S CPL. 09

48600685S4

$1,102.44

2

AXLE CLAMP L/S ABS. CPL. 2011

48600963S5

$583.63

3

SPRING

91410075S

Unavailable

6

Preload bush 26,5x42x1,5

48600053

$4.11

6

Preload bush 42x26,5x2,5

48600036

$2.05

6

Preload bush 26,5x42x5

48600037

$4.11

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

8

CARTRIDGE CPL. 990 SM-R 2009

48600839S1

Unavailable

9

OUTER TUBE L610 D54/D60 2L ROA

48600712

$383.01

10

REPAIR-KIT GASKET 09

R14017

$106.21

11

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

12

SILICONE GREASE F. DUST STRI

T511

$34.59

13

DU-BUSH D47XD49X20DDL02

48600428

$12.05

14

Guide bushing 48x52x12

48601009

$12.05

15

Supportwasher 50x57,6x1,5

48600013

$3.08

16

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

17

Snap ring SB58x1,5 acc drawing

48600070

$2.05

18

Dirt scarper NOK 48mm

48600816

$12.80

23

SLEEVE SENSOR HOLDER ABS

60142024050

$5.32

24

ABS-SENSOR 06

60142025000

$104.43

25

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

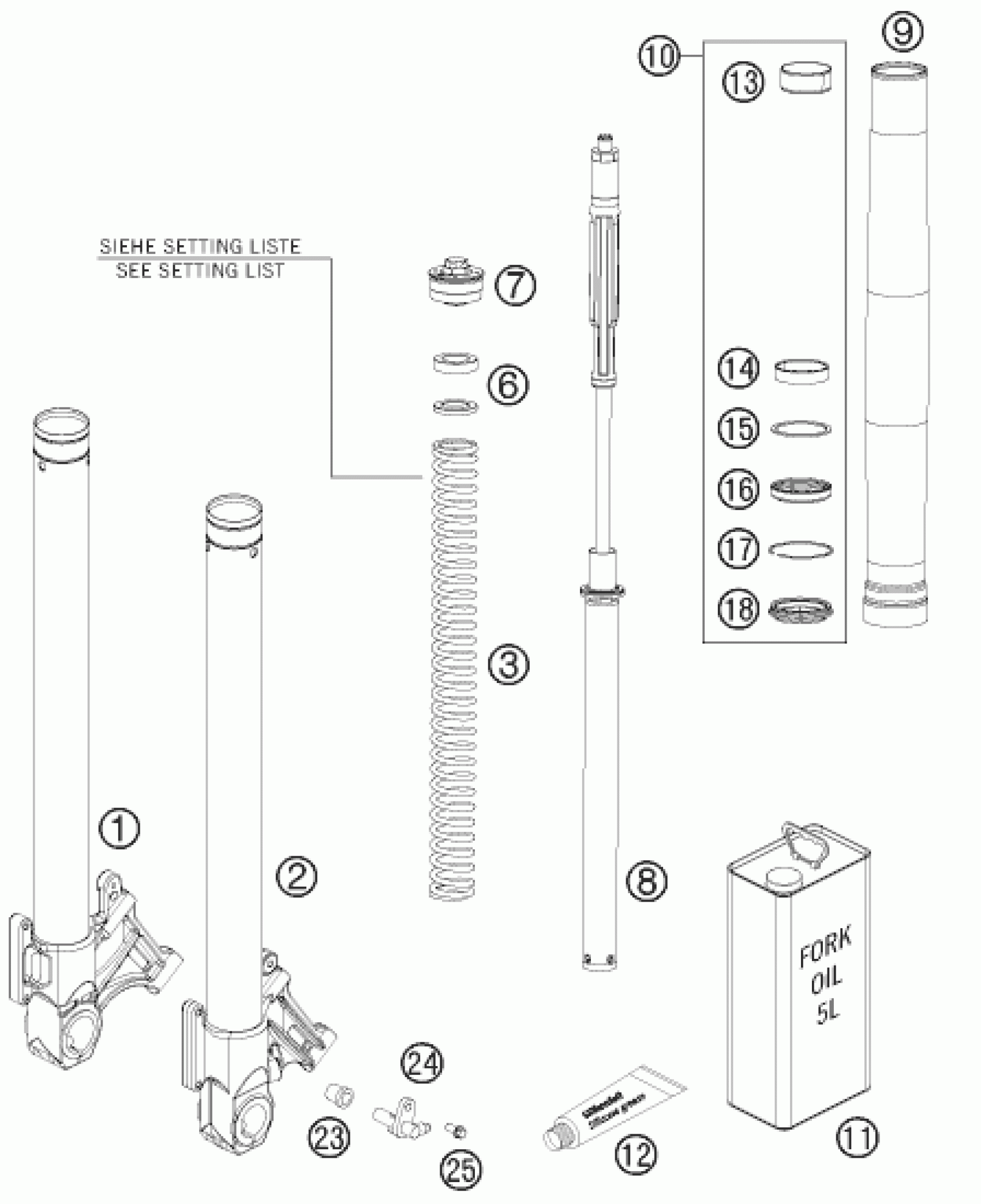

KTM 990 SUPERMOTO T BLACK ABS 2013 FRONT FORK DISASSEMBLED Diagram

AXLE CLAMP R/S CPL. 09

AXLE CLAMP L/S ABS. CPL. 2011

SPRING

Preload bush 26,5x42x1,5

Preload bush 42x26,5x2,5

Preload bush 26,5x42x5

PRE-LOAD ADJ. CPL. M51X1,5 05

CARTRIDGE CPL. 990 SM-R 2009

OUTER TUBE L610 D54/D60 2L ROA

REPAIR-KIT GASKET 09

Fork Fluid Viscosity 4.0 5L

SILICONE GREASE F. DUST STRI

DU-BUSH D47XD49X20DDL02

Guide bushing 48x52x12

Supportwasher 50x57,6x1,5

Shaft seal SKF 48x57,8x9,5 bla

Snap ring SB58x1,5 acc drawing

Dirt scarper NOK 48mm

SLEEVE SENSOR HOLDER ABS

ABS-SENSOR 06

SPECIAL SCREW M6X13 WS=8 10.9
