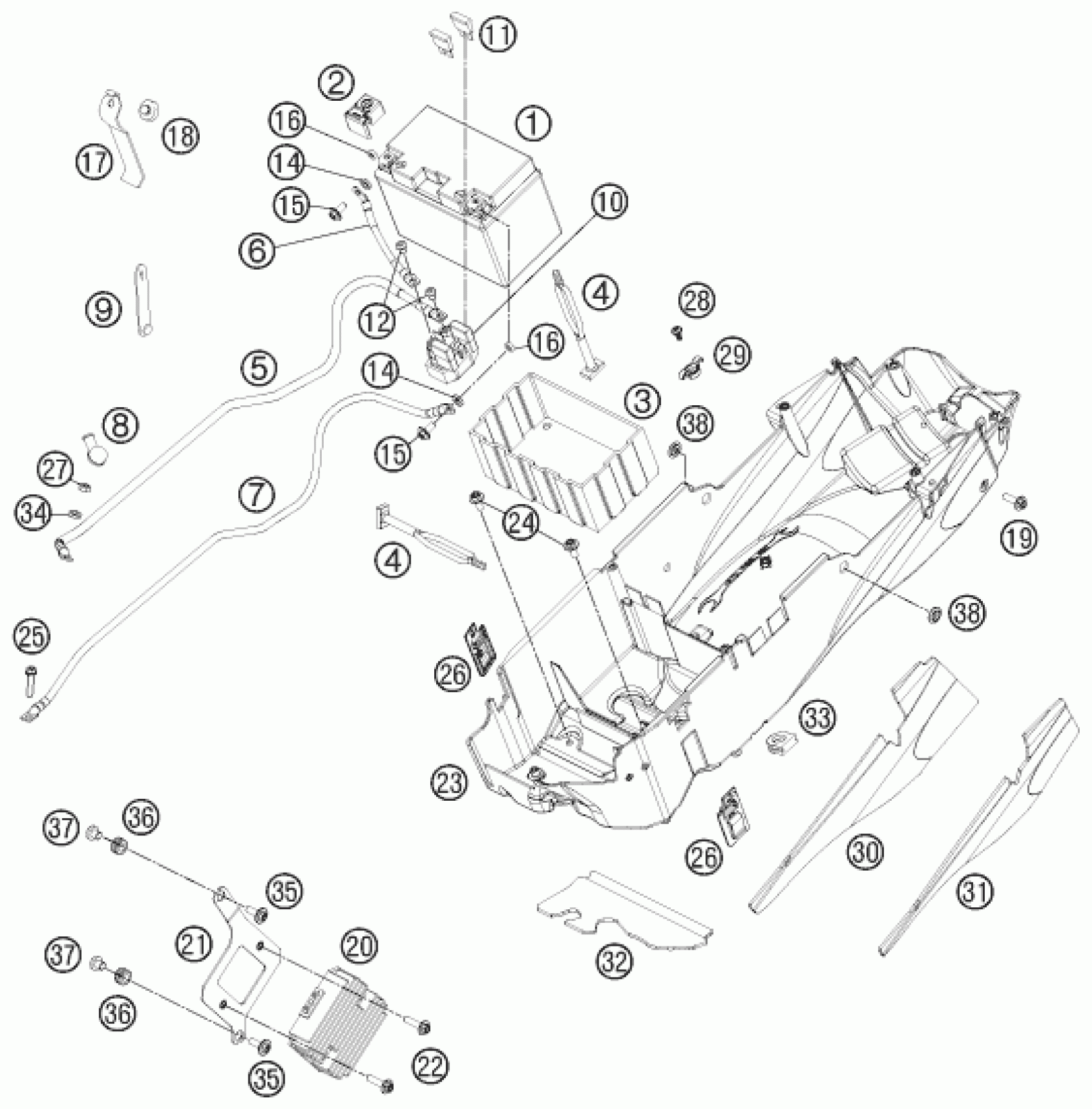

KTM 990 SUPERMOTO T BLACK ABS 2013 BATTERY Diagram

#

Description
Price

1

BATTERY 12V/11AH 03

60011053000

$366.89

2

COVER POSITIVE POLE

62111059060

$4.11

3

BATTERY COVER 96

58411053050

$22.65

4

RUBBER L=145MM

50303018000

$6.44

5

STARTER CABLE L=650 MM

62111059000

$15.68

6

BATTERY CABLE L=130MM

62111059050

$6.93

7

GROUND CABLE L= 650 MM

62111097000

$11.69

8

Rubber grommet, starter port 0

60040009000

$3.08

10

Starter relay

76211058000

$79.19

11

Plug-in fuse, big 30A

58011109130

$2.05

38

BUSHING F.REINFORCING

54803013050

$2.05

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

14

WASHER 6 X 12 X 3

12011016000

$1.49

15

HH collar screw M6x16 TX30

0025060166

$3.08

16

Hex. nut DIN 934 M6

0934060003

$1.49

17

BRACKET - BATTERY

62111056000

$16.54

18

RUBBER BUFFER

54308042000

$3.08

19

HH collar screw M6x20 TX30

0024060206

$3.08

20

VOLTAGE REGULATOR

60011034100

$160.34

21

BRACKET - VOLTAGE REGULATOR 11

62111037000

$20.21

22

HH collar screw M6x25 TX30

0025060256

$3.08

23

REAR END LOWER PART 11

62108019000

$37.03

24

HH collar screw M6x15 TX30

0024060156

$3.08

25

HH collar screw M6x25 TX30

0025060256

$3.08

26

SUPPORT F. CONNECTOR

62111057000

$3.08

27

Self lock. nut DIN985-M6-A2

0985060003

$2.05

28

EJOT PT screw K50x12

0081050121

$2.05

29

SUPPORT TOOL SET 05

62508021000

$8.71

30

THERMAL PROTECTION FOIL R/S

62108019060

$29.82

31

THERMAL PROTECTION FOIL L/S

62108019050

$27.76

32

THERMAL PROTECTION FOIL FRONT

62108019070

$14.11

33

GROMMETSLEEVE 20MM

62108019010

$3.48

34

WASHER DIN0125-A 6,4

0125060003

$1.49

35

SPECIAL SCREW M6X18 ISA30 08

69014017000

$4.11

36

rubber grommet D=8mm open

31008060000

$2.05

37

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

9

RUBBER CABLE TIE 60MM 03

60011093060

$4.11
