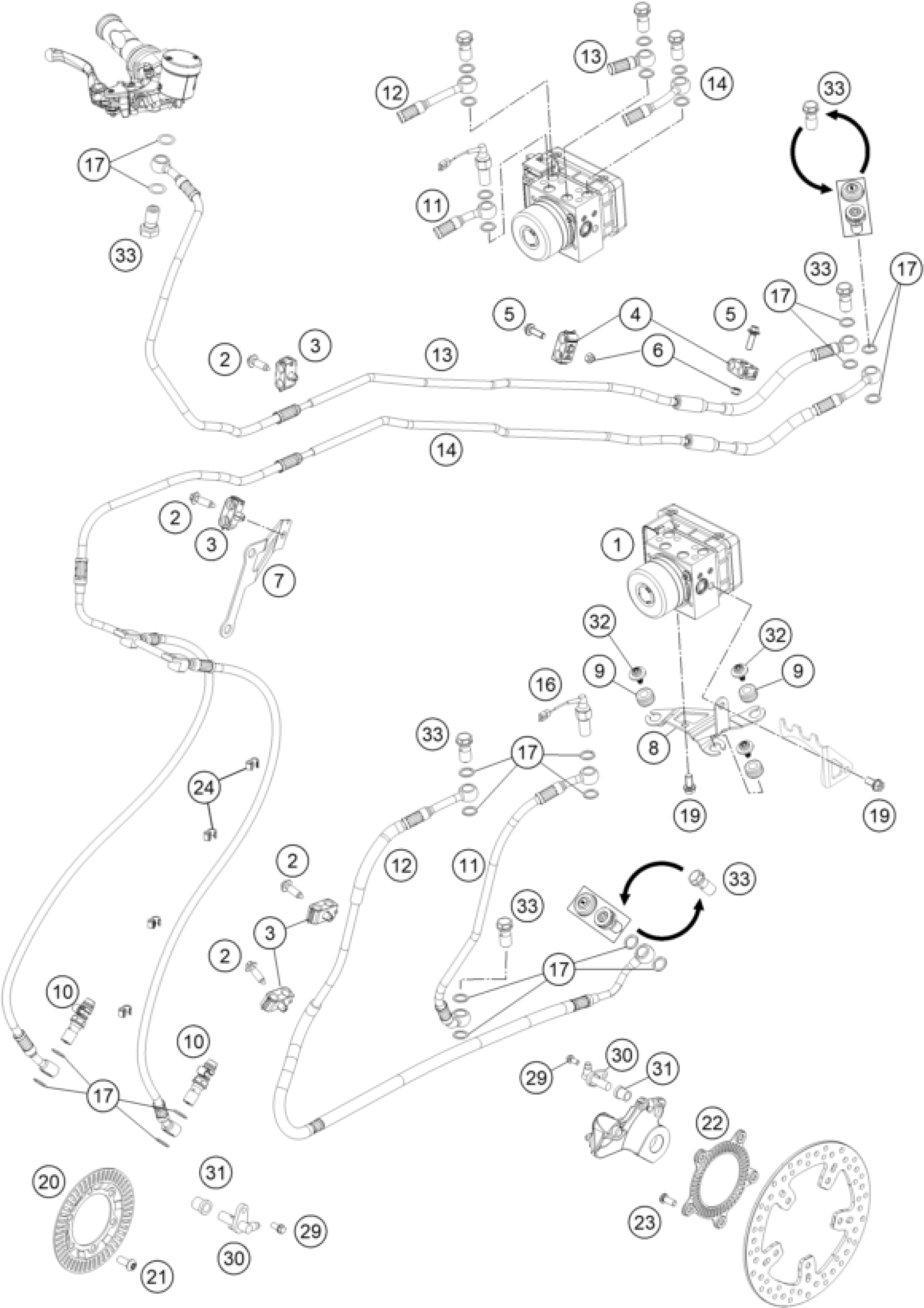

KTM 990 SUPERMOTO T BLACK ABS 2013 ABS Diagram

#

Description
Price

1

ABS MODULE FILLED

62142031044

$1,976.47

2

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

3

SUPPORT FOR BRAKE HOSE 06

60113046000

$5.23

4

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

5

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

6

Self locking nut DIN 985 M5

0985050003

$2.05

7

SUPPORT BRAKE HOSE FRONT

62142025000

$12.89

8

SUPPORT ABS-MODULE

62142040000

$17.20

9

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

10

BLEEDER SCREW CPL. 05

62513020000

$27.48

11

BREAK HOSE CPL.

62142001000

$63.10

12

BRAKE HOSE BRAKECALIPER

62142002000

$132.37

13

BRAKE HOSE HAND BREAK CYLINDER

62142003000

$130.19

14

BRAKE HOSE BRAKECALIPER FRONT

62142004000

$207.46

16

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

17

sealing ring DIN 7603 10x14x1

0603100141

$2.05

19

HH collar screw M6x12 TX30

0025060126

$3.08

20

SENSORGEAR FRONT

62142020000

$61.98

21

brake caliper screw M8x20

69013076000

$4.11

22

SENSORGEAR REAR

62142021044

$70.86

24

CLIP 5/7 MM 06

60111094000

$3.08

29

HH collar screw M6x15 TX30

0024060156

$3.08

30

ABS-SENSOR 06

60142025000

$104.43

31

SLEEVE SENSOR HOLDER ABS

60142024050

$5.32

32

EJOT PT SCREW K50X12 WN5452

0081650121

$2.05

33

banjo bolt M10x1x19 black

54813020100

$9.90

23

brake caliper screw M8x20

69013076000

$4.11
