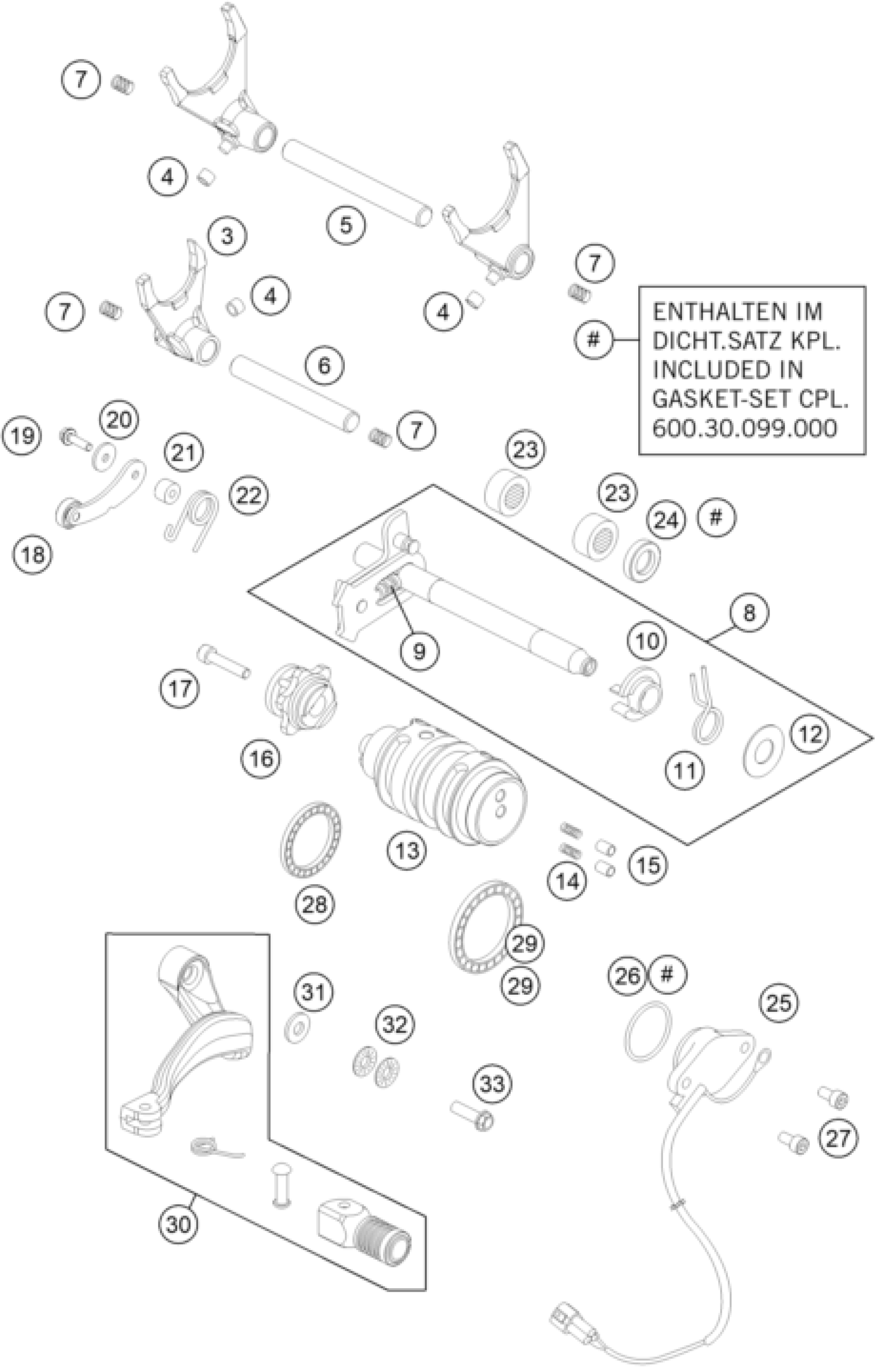

KTM 990 SUPERMOTO R ABS 2013 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 1-4 GEAR

60034001100

Unavailable

2

SHIFT FORK 2-3 GEAR

60034002100

Unavailable

3

SHIFT FORK 5-6 GEAR

60034003100

Unavailable

4

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

5

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

6

SHIFT RAIL 11,8X89MM

59034019000

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SHIFT SHAFT CPL.

60034005133

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

RETURN SPRING 2,2MM '95

54634014100

Unavailable

12

STOP DISK 14X30X1

54634050000

Unavailable

13

SHIFT ROLLER CPL. 06

60034012300

Unavailable

14

CONTACT SPRING 03

60034014000

Unavailable

15

CONTACT BOLT 03

60034037000

Unavailable

16

SHIFT ARRESTING CPL. 03

60034015044

Unavailable

17

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

18

LOCKING LEVER CPL.

60034024144

Unavailable

19

HH collar screw M5x20 TX30

0025050206

Unavailable

20

WASHER DIN7349-5X15X2

0349000050

Unavailable

21

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

22

ARRESTING LEVER SPRING 03

60034023000

Unavailable

23

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

24

radial shaft seal 14x24x6 B

0760142460

Unavailable

25

GEAR-POSITION SENSOR 06

60011023100

Unavailable

26

O-RING 27,5X2,5 NBR

0770275025

Unavailable

27

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

28

BALL BEARING 61805 C3

0625618050

Unavailable

29

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

30

SHIFT LEVER CPL. 07

6003403104401S

Unavailable

31

STEEL WASHER 6,4X17X3

50232050001

Unavailable

32

Pair of washers M6 NORDLOCK

50233041000

Unavailable

33

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable
