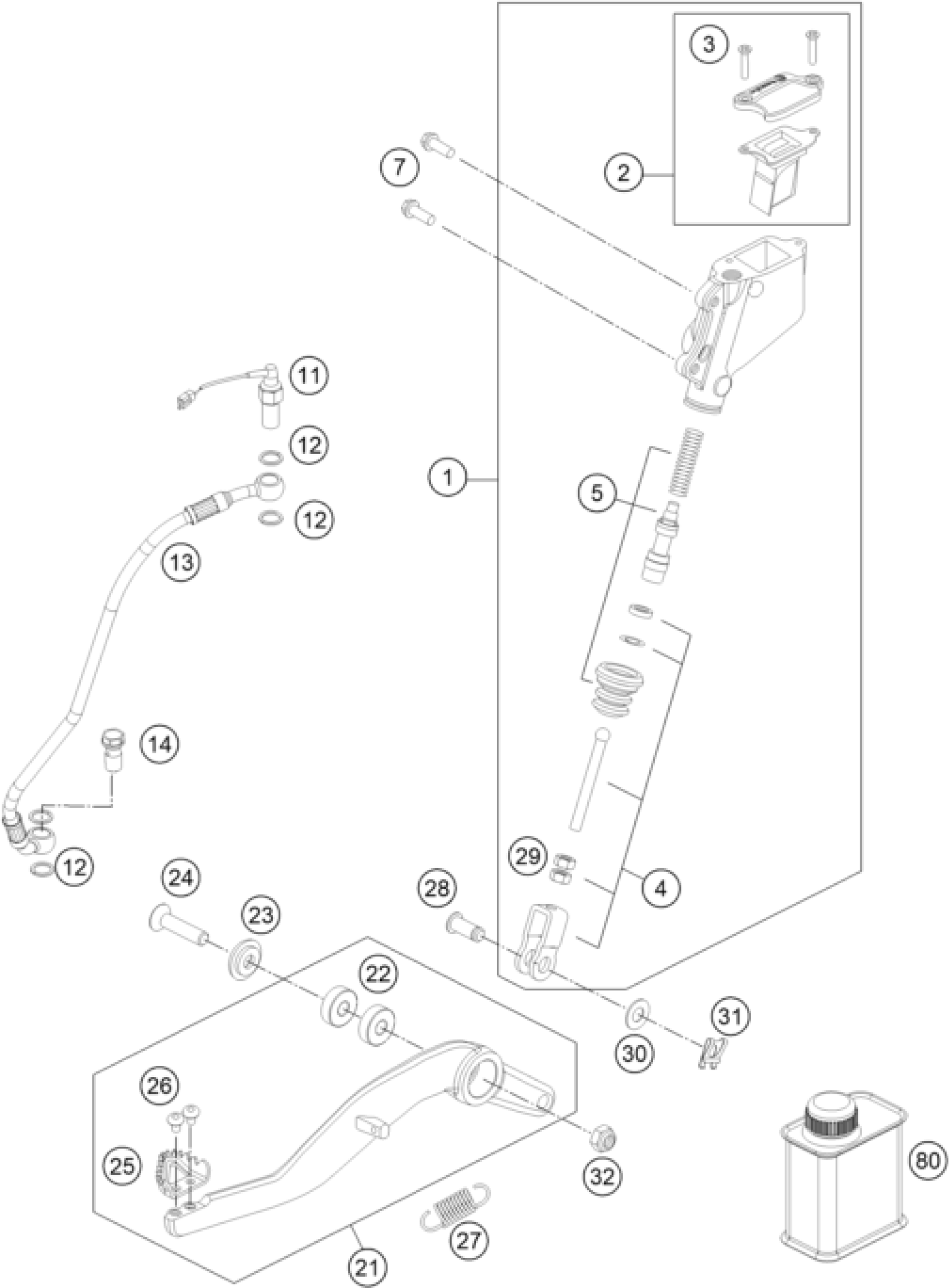

KTM 990 SUPERMOTO R ABS 2013 REAR BRAKE CONTROL Diagram

#

Description
Price

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52

1

MAIN BRAKE CYLINDER CPL. 07

60013060200

$211.40

2

COVER MAIN BRAKE CYLINDER CPL.

60013059100

$41.04

3

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

$1.49

4

PUSH ROD CPL. '03

60013056044

$28.79

5

REPAIR KIT PISTON 03

60013061000

$50.11

7

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

11

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

12

sealing ring DIN 7603 10x14x1

0603100141

$2.05

13

BREAK HOSE CPL.

62142001000

$63.10

14

banjo bolt M10x1x19 black

54813020100

$9.90

21

FOOT BRAKE LEVER CPL. 07

6251305004401S

$98.30

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

SPECIAL WASHER 8X24 ALU H=2,6

62603062000

$6.44

24

COUNTERSUNK SCREW ISA45 M8X35

0019080356

$3.08

25

STEP PLATE FOR BRAKE LEVER

54813051100

$8.79

26

SCREW TORX M5X10 05

58605083010

$2.05

27

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

28

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

29

Hex. nut DIN 934 M6

0934060003

$1.49

30

washer DIN 125 A -8.4

0125080003

$1.49

31

SECURING CLIP D=8MM 03

60013058000

$2.05

32

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05
