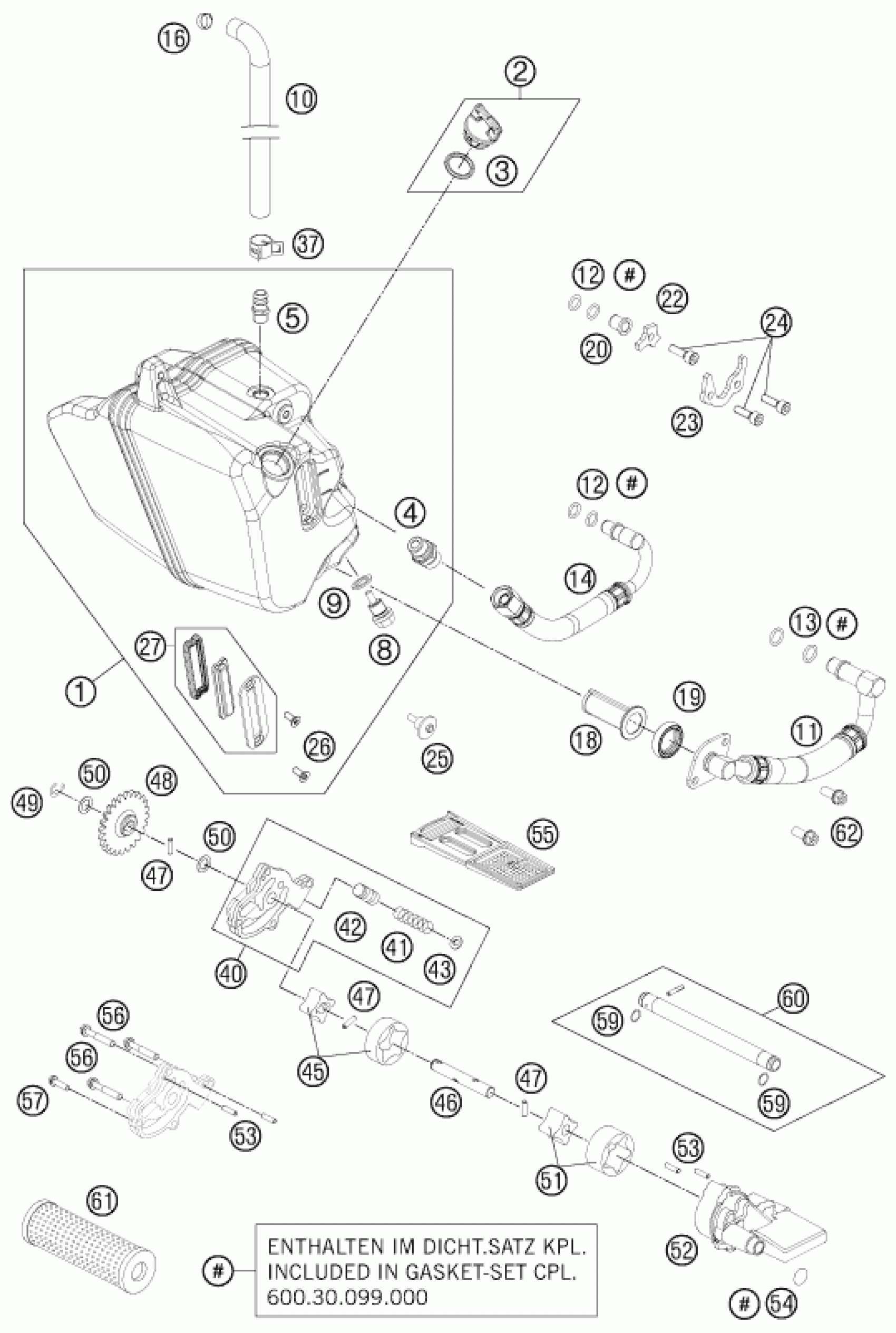

KTM 990 SUPERMOTO R ABS 2013 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL TANK CPL.

62638081033

$668.61

3

O-RING 19,00X3,00 NBR

0770191015

$2.05

4

PIPE FITTING

62638081060

$6.09

5

BLEEDER FLANGE M12X1,5 WS=13

59030022100

$7.85

2

oil plug cpl. M24x3

58030020100

$5.23

8

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

9

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

10

PREFORMED HOSE 9X15 05

62538034030

$26.17

11

SUCTION PIPE CPL

62638060000

$115.38

12

O-RING 9X2 VITON

0770090021

$1.49

13

O-RING 11X2 VITON

0770110021

$2.05

14

RETURN OIL LINE CPL

62638061000

$120.14

16

VARIABLE ONE-EAR CLAMP 17,0MM

00050170706

$2.05

18

OIL SCREEN FINISHED 03

60038017000

$11.96

19

GASKET FOR OIL FILTER HNBR 03

60038018000

$6.91

20

PLUG 10MM LC8 03

60038024000

$6.72

22

RETAINING PLATE 2 LC8 03

60038037000

$6.72

23

RETAINING PLATE 1 LC8 03

60038036000

$6.34

24

AH SCREW DIN0912-M 6X16

0912060163

$1.49

25

Special screw M6x24 WS=8

60038083000

$3.08

26

COUNTERSUNK SCREW ISA25 M5X12

0019050121

$2.05

27

OIL SIGHT GLASS CPL.

62638084044

$62.08

37

CLAMP STD DN16

00049160121

$2.05

40

PRESSURE PUMP HOUSING CPL. 10

60038010133

$51.24

41

CONTROL SPRING LC8 3,5 BAR

60038026000

$1.49

42

CONTROL PISTON LC8 03

60038028000

$5.23

43

shim

50337073000

$2.05

45

ROTOR-SET PRESSURE PUMP 03

60038011000

$45.06

46

OIL PUMP SHAFT 03

60038002000

$26.52

47

needle roller NRB 4x15.8 G2

0402041580

$2.05

48

OIL PUMP GEAR 24-T 03

60038001024

$44.12

49

retaining washer DIN 6799 - 8

0799080000

$1.49

50

washer 10x16x0.5

60038007010

$2.33

51

ROTOR-SET 19MM 03

60038009000

$52.91

52

SUCTION PUMP CASE 03

60038008000

$77.14

53

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

54

O-RING 13,3X2,4 VITON

0770133024

$2.05

55

OIL SCREEN 03

60038016000

$11.87

56

HH collar screw M6x40 TX30

0025060406

$3.08

57

HH collar screw M6x25 TX30

0025060256

$3.08

59

o-ring 10.00x1.00 NBR70

0770010010

$2.05

61

OIL FILTER 03

60038015000

$20.66

62

HH collar screw M6x16 TX30

0025060166

$3.08

60

OIL INJECTION TUBE GEAR 05

60030065100

$16.82
