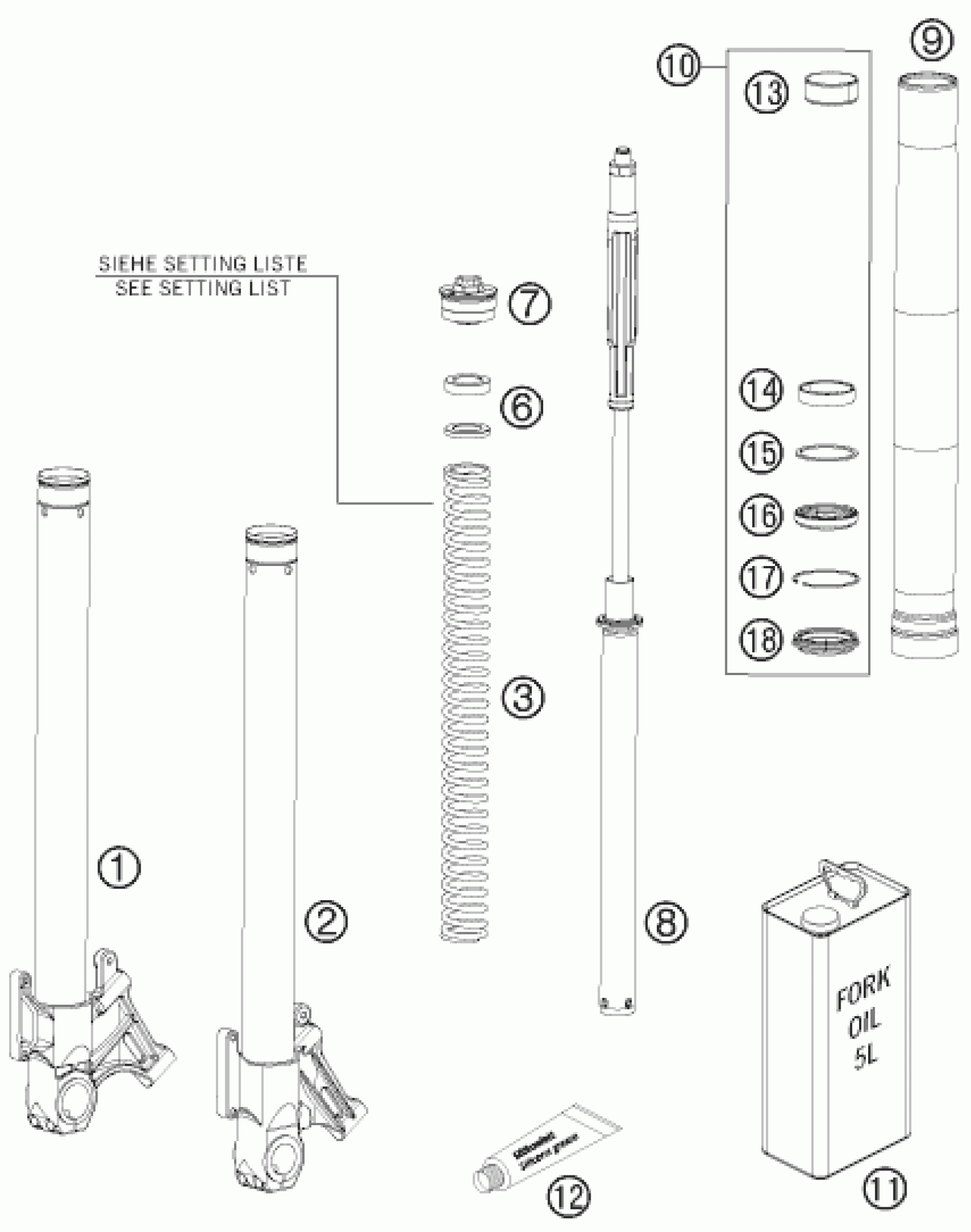

KTM 990 SUPERMOTO R ABS 2013 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP R/S CPL. 09

48600685S4

Unavailable

2

AXLE CLAMP L/S ABS. CPL. 2011

48600963S5

Unavailable

3

SPRING D43,7 L375 7,5N/MM SET

91410076S

Unavailable

6

Preload bush 26,5x42x1,5

48600053

Unavailable

6

Preload bush 42x26,5x2,5

48600036

Unavailable

6

Preload bush 26,5x42x5

48600037

Unavailable

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

Unavailable

8

CARTRIDGE CPL. 990 SM-R 2009

48600839S

Unavailable

9

OUTER TUBE L610 D54/D60 2L ROA

48600712

Unavailable

10

REPAIR-KIT GASKET 09

R14017

Unavailable

11

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

12

SILICONE GREASE F. DUST STRI

T511

Unavailable

13

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

14

Guide bushing 48x52x12

48601009

Unavailable

15

Supportwasher 50x57,6x1,5

48600013

Unavailable

16

Shaft seal SKF 48x57,8x9,5 bla

48600399

Unavailable

17

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

18

Dirt scarper NOK 48mm

48600816

Unavailable
