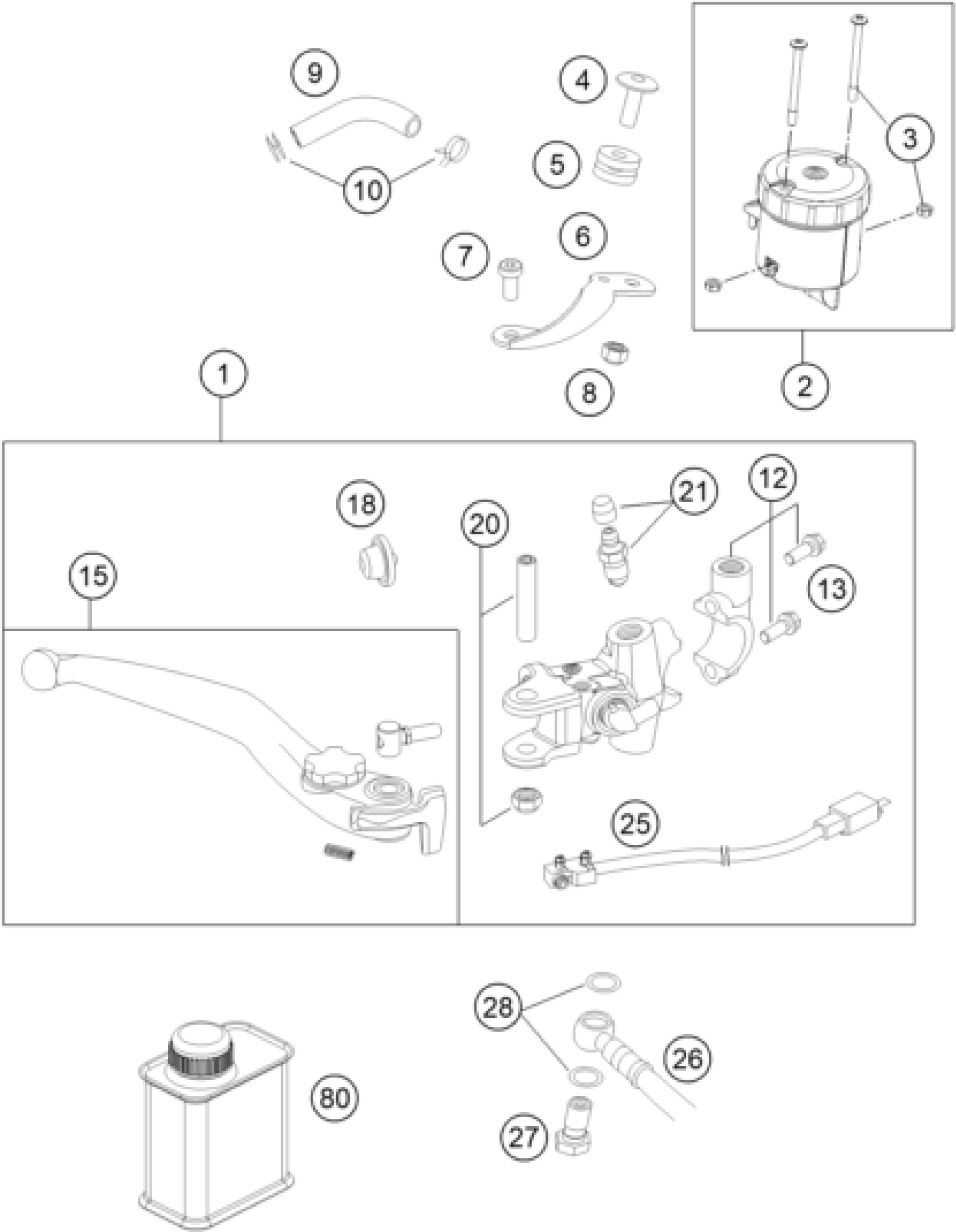

KTM 990 SUPERMOTO R ABS 2013 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HAND BREAK CYLINDER

62513001200

Unavailable

2

BRAKE FLUID RESERVOIR CPL.

61013009102

Unavailable

3

SCREW + NUT FOR RESERVOIR

61013009103

Unavailable

4

SCREW RET.PANEL-RESERVOIR

61013013050

Unavailable

5

RUBBER BUSH 05

61013013000

Unavailable

6

RET.PANEL FLUID RES. FRONT 05

61013009001

Unavailable

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

Unavailable

8

NUT FOR RESERVOIR

61013009004

Unavailable

9

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

12

CLAMP CPL. 05

61013005000

Unavailable

13

HH collar screw M6x25 TX30

0025060256

Unavailable

15

HAND BRAKE LEVER CPL. 07

62513002144

Unavailable

18

RUBBER CUP 05

61013008000

Unavailable

20

LEVER SCREW CPL. 05

61013006000

Unavailable

21

BLEEDER SCREW WITH CAP

60013020000

Unavailable

25

BREAK LIGHT SWITCH FRONT

62011050000

Unavailable

26

BRAKE HOSE HAND BRAKE CYLINDER

62642003000

Unavailable

27

banjo bolt M10x1x19 black

54813020100

Unavailable

28

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
