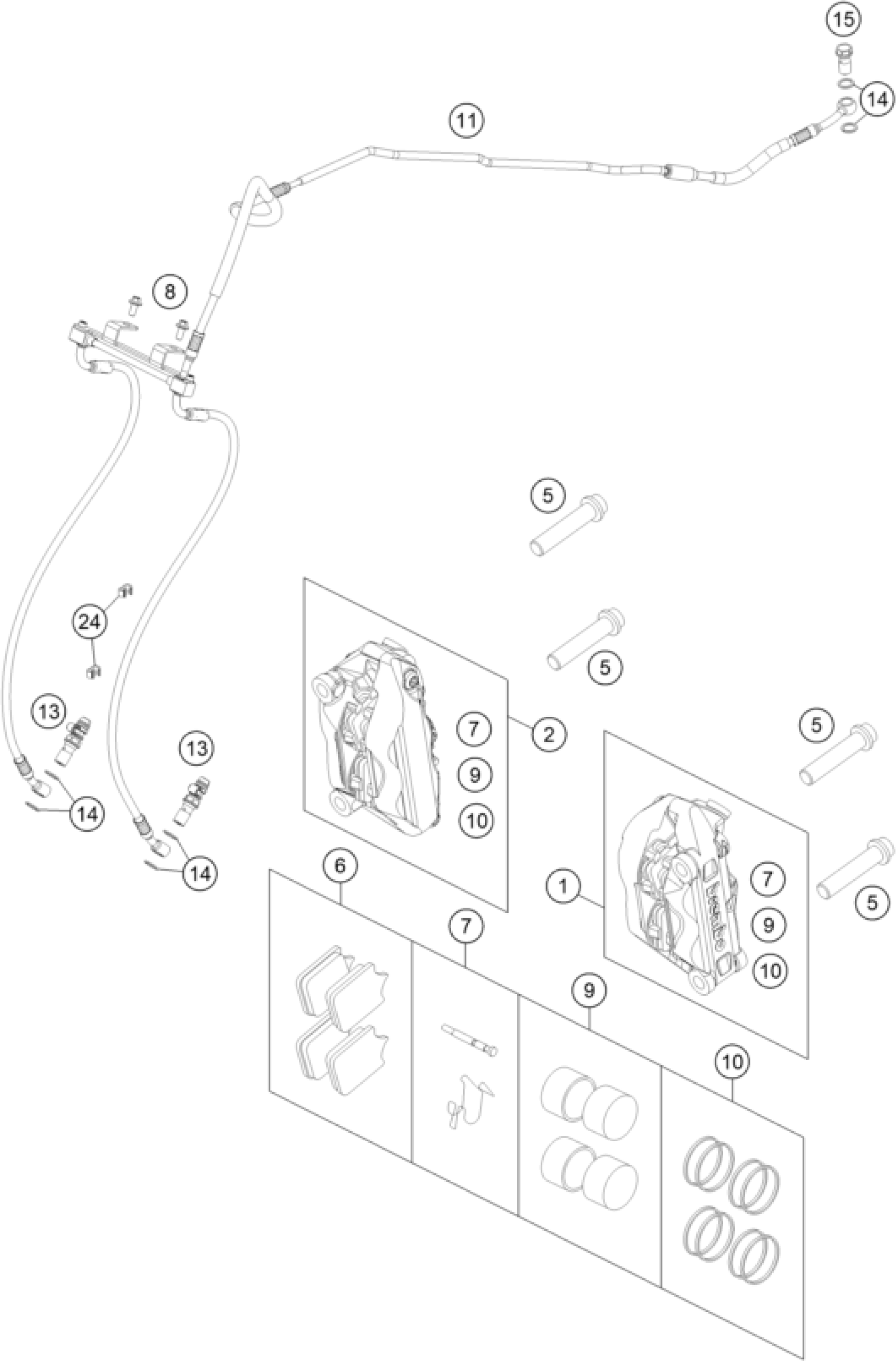

KTM 990 SUPERMOTO R ABS 2013 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

CALIPER L/S BLACK-WITHOUT PADS

6251301510130

$295.77

2

CALIPER R/S BLACK-WITHOUT PADS

6251301610130

$319.92

5

AH-COLLAR SCREW M10X1,25X55

0035100559

$3.08

6

BRAKE PAD FR. TOSHIBA TT2172HH

61013030000

$77.41

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

$30.38

8

HH collar screw M6x13 TX30

0024060136

$3.08

9

BRAKE PISTONS 4X

61013019000

$79.00

10

REP.KIT SEALING RINGS 4X

61013019100

$33.65

11

BRAKE HOSE BRAKECALIPER FRONT

62642004000

Unavailable

13

BLEEDER SCREW CPL. 05

62513020000

$27.48

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

banjo bolt M10x1x19 black

54813020100

$9.90

24

CLIP 5/7 MM 06

60111094000

$3.08
