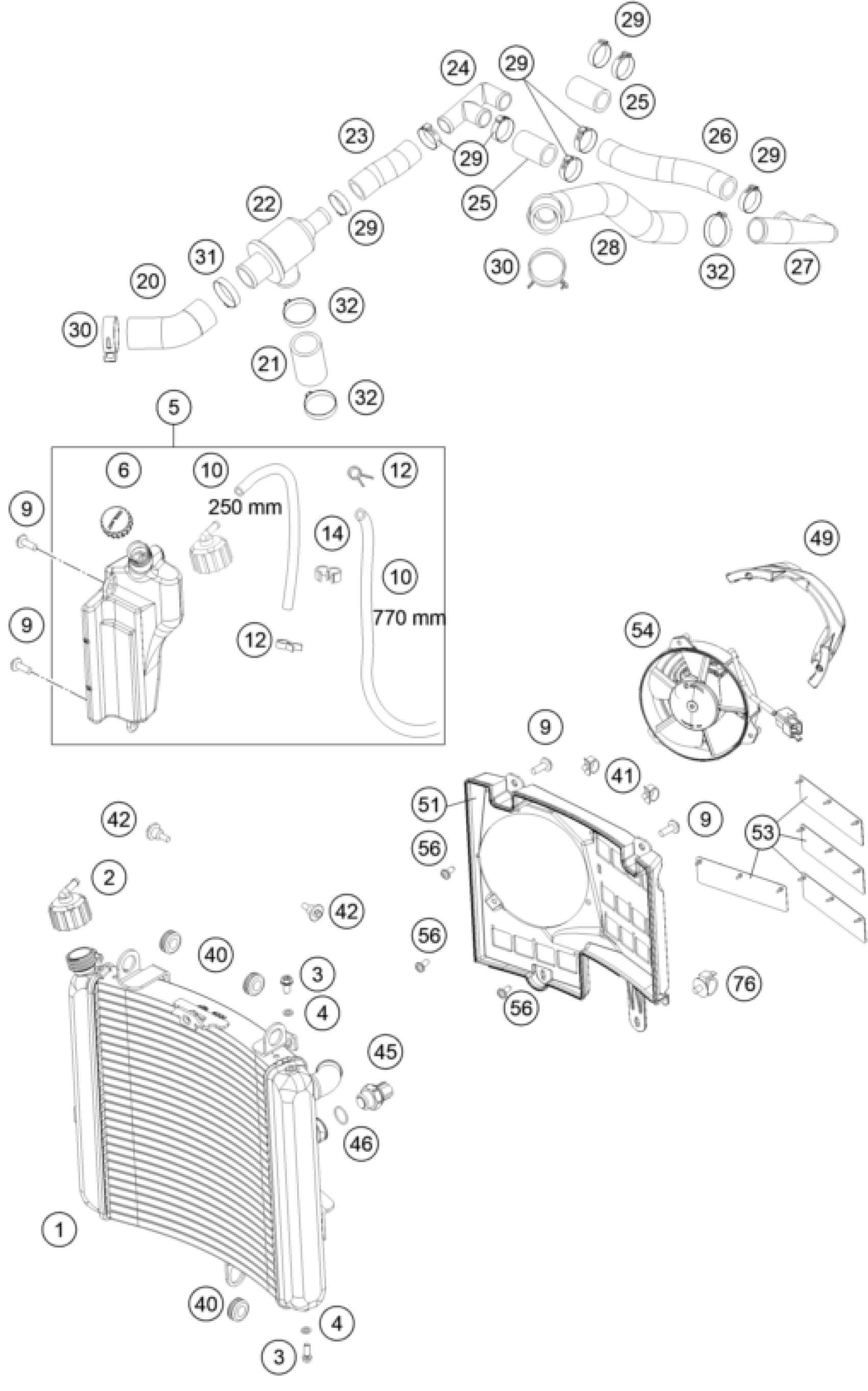

KTM 990 SUPERMOTO R ABS 2013 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR

62635010100

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

HH collar screw M6x10 TX30

0025060106

Unavailable

4

ALU-GASKET 6X10X1.5

60035048000

Unavailable

5

EXPANSION RESERVOIR CPL. 08

62635065000

Unavailable

6

PLUG F. EXPANSION TANK

60035066000

Unavailable

9

HH collar screw M6x15 TX30

0024060156

Unavailable

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

12

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

14

DISTANCE HOLDER 10/10 BLACK

60038039000

Unavailable

20

RADIATOR HOSE THERM./DISTR. 05

63035031000

Unavailable

21

RADIATOR HOSE THERM./PUMP 03

60035030000

Unavailable

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

Unavailable

23

RADIATOR HOSE THERM./DISTR. 05

62535025000

Unavailable

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

Unavailable

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

Unavailable

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

Unavailable

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

Unavailable

28

RADIATOR HOSE ´08

62635024000

Unavailable

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

30

CLAMP STD DN32

00049320121

Unavailable

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

Unavailable

32

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

WIRING HOLDER 16MM

57013072100

Unavailable

42

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

45

THERMOSWITCH 98 °C FOR FAN 03

58435045098

Unavailable

46

O-ring 17X1.5

0770017015

Unavailable

49

FAN CAP 08

62635044060

Unavailable

51

FAN COWL SUPERMOTO EFI 08

62635044000

Unavailable

53

FAN CLACK RUBBER 08

62635044050

Unavailable

54

VENTILATOR

62635041000

Unavailable

56

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

76

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable
