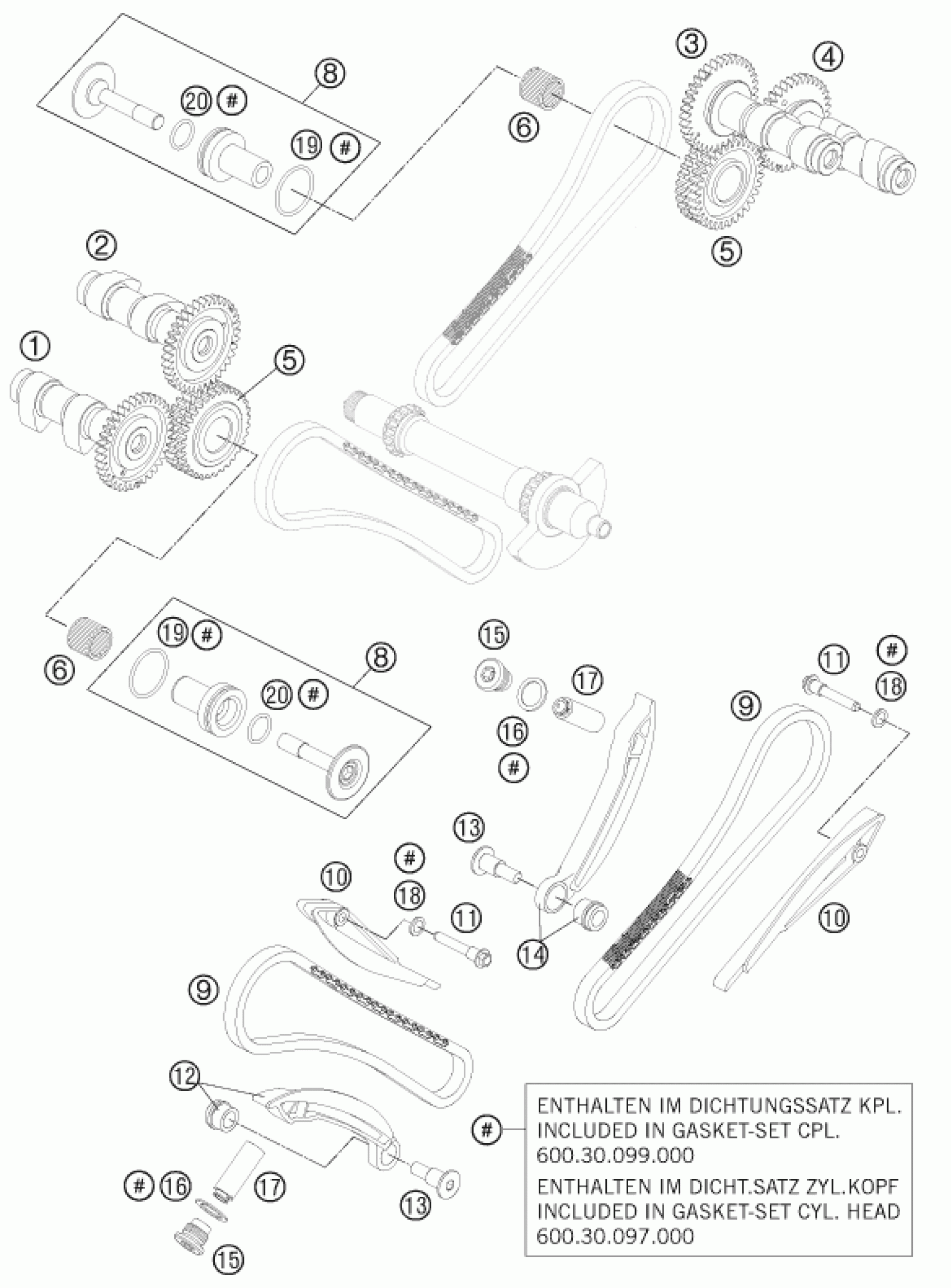

KTM 990 SUPERMOTO R 2012 TIMING DRIVE Diagram

#

Description
Price

1

CAMSHAFT OUTLET FRONT

61136010000

$338.65

2

CAMSHAFT INTAKE FRONT

61136009000

$569.78

3

CAMSHAFT INTAKE REAR

61136109000

$466.00

4

CAMSHAFT OUTLET REAR

61136110000

$298.92

5

TIMING GEARS 32-T CPL. 03

60036070000

$109.88

6

NEEDLE BEARING K18/24/20

0405182420

$13.08

8

BEARING BOLT

60036071100

$20.99

9

TOOTH CHAIN 88 LINK 6,35PITCH

60036013000

$77.41

10

GUIDE RAIL 03

60036001000

$7.10

11

BUSHING SCREW 2 CYL. 03

60036002060

$11.12

12

TENSIONER RAIL CPL. FRONT 03

60036002000

$9.34

13

SPECIAL SCREW M8X29 WS=6

60036002150

$5.23

14

TENSIONER RAIL CPL. REAR 03

60036102000

$9.62

15

SCREW PLUG M16X1,5 03

60036008000

$11.12

16

CU SEAL-RING DIN7603 16X20X1,3

0603162013

$1.49

17

TIMING-CH.TENS. HYDR.(75YM) 03

60036003000

$52.26

18

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

19

O-RING 29X2 VITON

0770290020

$3.08

20

O-ring 16x2 Viton 75

0770160021

$3.08
