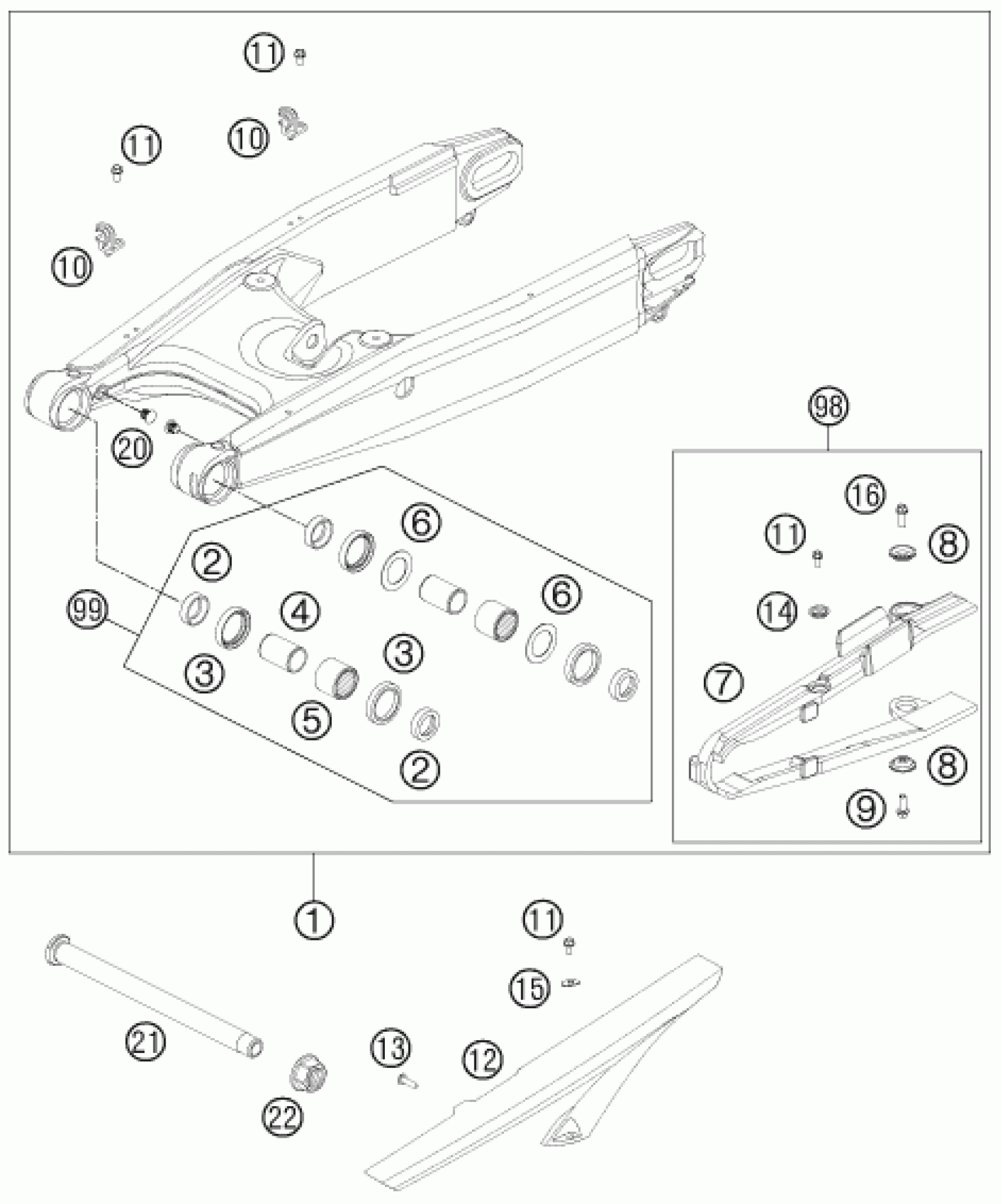

KTM 990 SUPERMOTO R 2012 SWING ARM Diagram

#

Description
Price

99

SWINGARM REP. KIT

60004230010

$86.57

1

SWING ARM CPL. SM-R SD-R 07

6100403004433

$1,281.10

2

Bucket f. shaft seal ring 03

60004034000

$8.03

3

Radial shaft seal 30X40X7

0760304073

$4.11

4

INNER RING JR20X25X38,5 03

60004032000

$18.13

5

NEEDLE BUSH HK2526B 03

60004031000

$10.65

6

Stop disk 03

60004033000

$2.05

7

CHAIN SLID.GUARD SWINGARM 10

63004066100

$27.48

8

BUCKET

72210079000

$3.00

9

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

10

RET. CLAMP F. BRAKE HOSE

60104042000

$4.11

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

12

CHAINGUARD 05

61004060000

$10.00

13

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

14

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

15

WASHER CHAINGUARD 05

61004060050

$5.23

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

20

PLUG SFL12 GREY 05

60004042000

$1.49

21

SWINGARM BOLT CPL.

60004037244

$59.69

22

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

98

CHAIN GUARD KIT

60004066110

Unavailable
