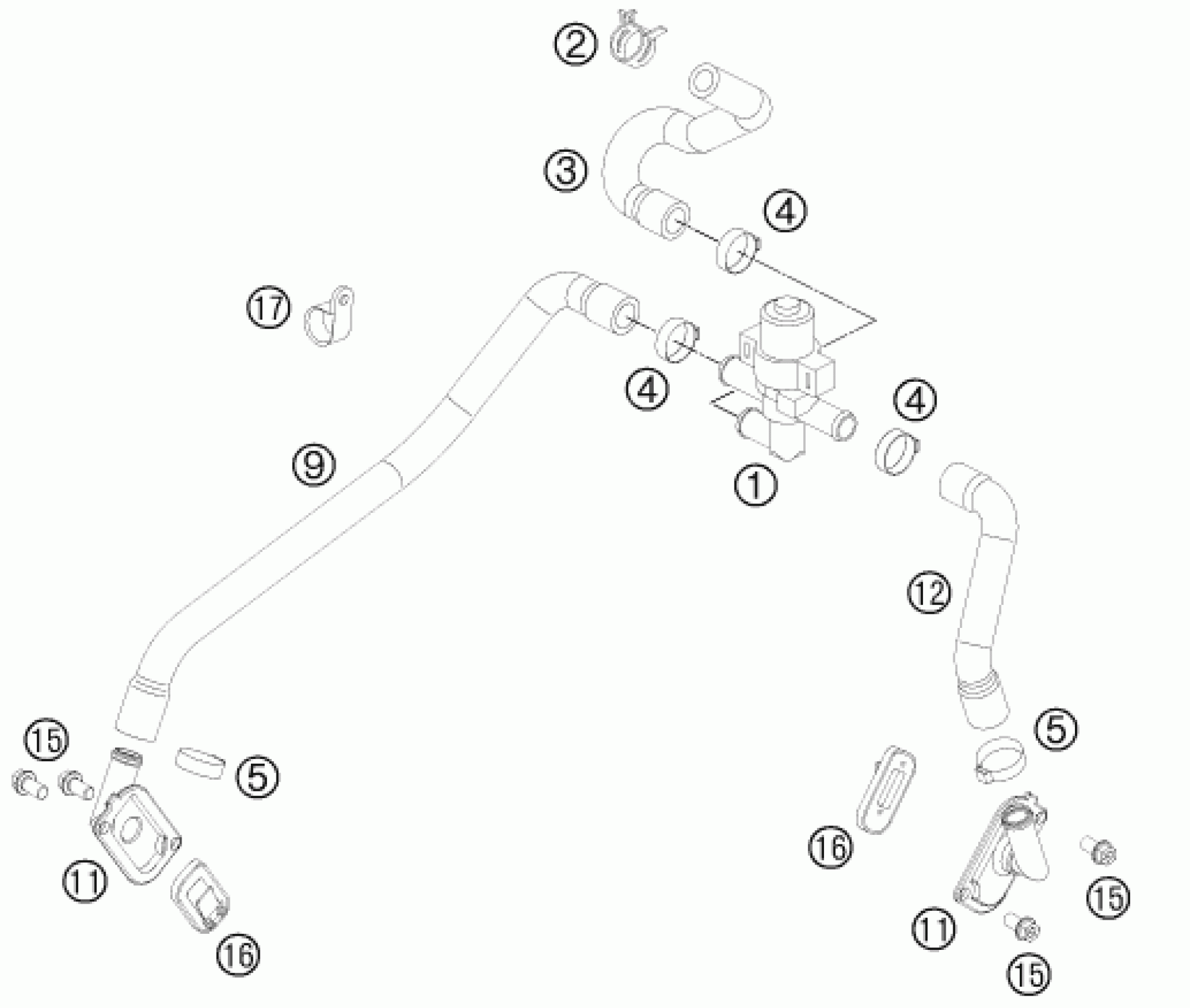

KTM 990 SUPERMOTO R 2012 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

CONTROL VALVE SAS 05

61005026000

Unavailable

2

CLAMP STD DN19

00049190121

Unavailable

3

SAS HOSE AIRBOX 05

61005035023

Unavailable

4

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

5

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

Unavailable

9

SAS HOSE CYLINDER FRONT 05

61005035021

Unavailable

11

SAS FLANGE 03

60005022000

Unavailable

12

SAS HOSE CYLINDER REAR 05

61005035022

Unavailable

15

HH collar screw M6x12 TX30

0025060126

Unavailable

16

SAS Reed Valve

60005026000

Unavailable

17

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable
