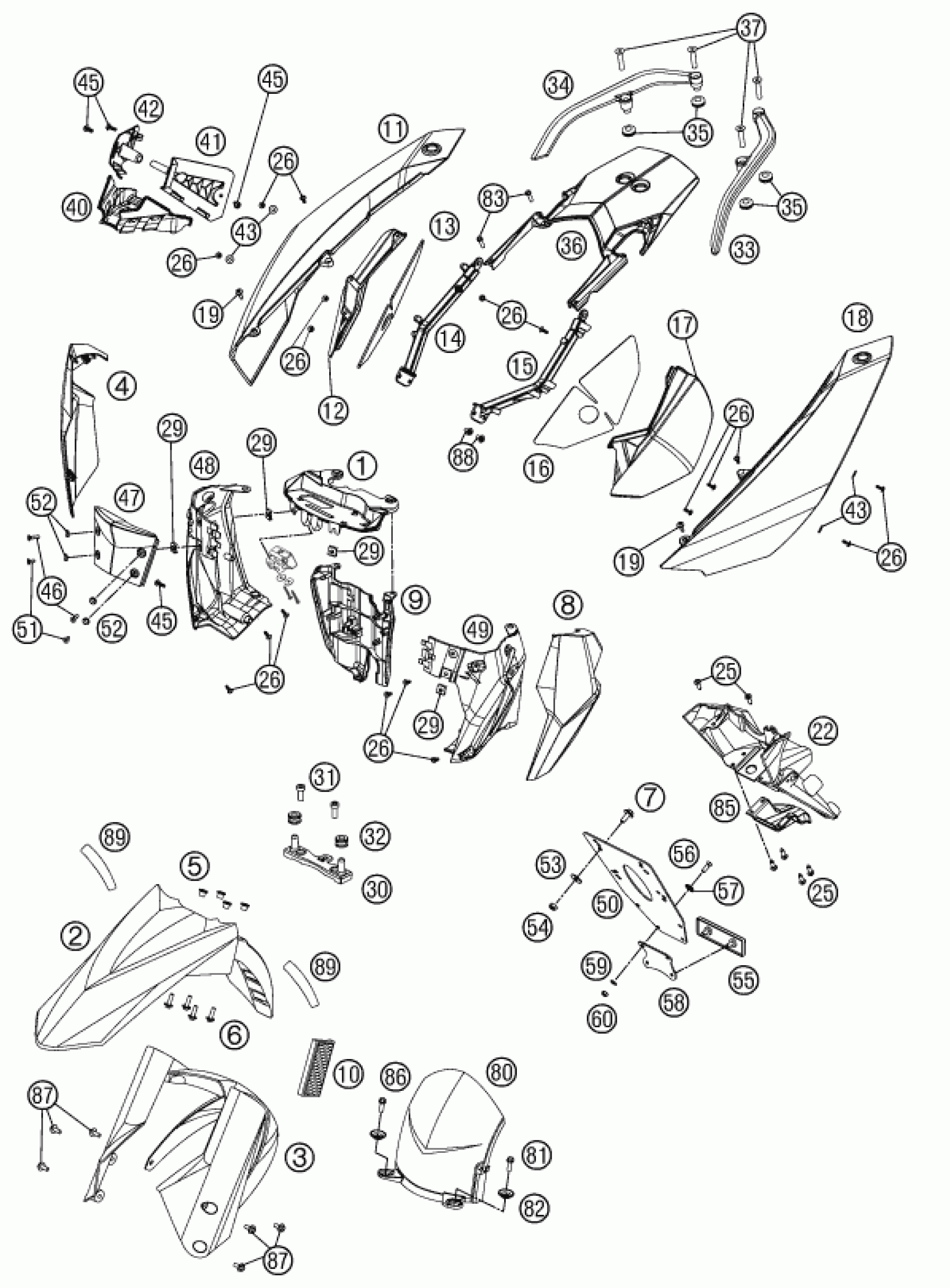

KTM 990 SUPERMOTO R 2012 MASK, FENDERS Diagram

#

Description
Price

29

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

26

EJOT PT screw K50x12

0081050121

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

Unavailable

9

BRACKET FOR PLUGS CPL. 08

62608032000

Unavailable

1

SPEEDOMETER SUPPORT 08

62608006033

Unavailable

2

FRONT FENDER BLACK MATT

6250801000033B

Unavailable

3

SPLASH PROTECT. 05

62501094000

Unavailable

5

COLLAR BUSHING 7,2X10X15X8,5

62508009000

Unavailable

6

HH collar screw M6x20 TX30

0024060206

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

4

MASK SPOILER R/S BLACK MATT

6260800200033A

Unavailable

8

MASK SPOILER L/S BLACK MATT

6260800300033A

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

11

SIDE COVER R/S REAR

6260804210020A

Unavailable

12

THERMAL SHIELD

62605091100

Unavailable

13

THERMAL PROT. FOIL R/S 08

62605091050

Unavailable

14

SUPPORT SIDECOVER RS REAR 09

62608042150

Unavailable

15

SUPPORT SIDE COVER LS REAR 09

62608041150

Unavailable

16

THERMAL PROT. FOIL L/S 08

62605090050

Unavailable

17

THERMAL SHIELD

62605090100

Unavailable

18

SIDE COVER L/S REAR

6260804110020A

Unavailable

19

special screw M5x17

69008021060

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

Unavailable

25

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

48

MASK REAR PART R/S 08

62608004000

Unavailable

49

MASK REAR PART L/S 08

62608005000

Unavailable

30

MASK SUPPORT BOTTOM 05

62514064000

Unavailable

31

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

32

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

33

GRIP L/S BLACK MATT

6301210800033S

Unavailable

34

GRIP R/S BLACK MATT

6301210900033S

Unavailable

36

REAR FENDER BLACK 08

6260801310030

Unavailable

37

countersunk screw M8x45 TX45

0019080456

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

41

COVER STEARING HEAD UP.L/S

62603185000

Unavailable

42

COVER STEARING HEAD UP.R/S

62603186000

Unavailable

43

Washer tail section UT D=14mm

75008023000

Unavailable

45

EJOT PT screw K50x12

0081050121

Unavailable

46

COUNTERSUNK SCREW ISA25 M5X20

0019050201

Unavailable

47

MASK FRONT PART 08

62608001000

Unavailable

50

license plate mouning plate

60012081200

Unavailable

51

COUNTERSUNK SCREW ISA25 M5X12

0019050121

Unavailable

52

SPECIAL WASHER D=12MM 03

60008046000

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable

80

SPLASH PROTECT. 05

61008014000

Unavailable

81

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

82

BUCKET

72210079000

Unavailable

83

HH collar screw M6x12 TX30

0025060126

Unavailable

85

COVER NUMB. PLATE CARRIER

62608015001

Unavailable

86

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

87

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

88

HH collar screw M6x13 TX30

0024060136

Unavailable

89

PROTECTIVE FOIL SET CARRIER

62508010030

Unavailable
