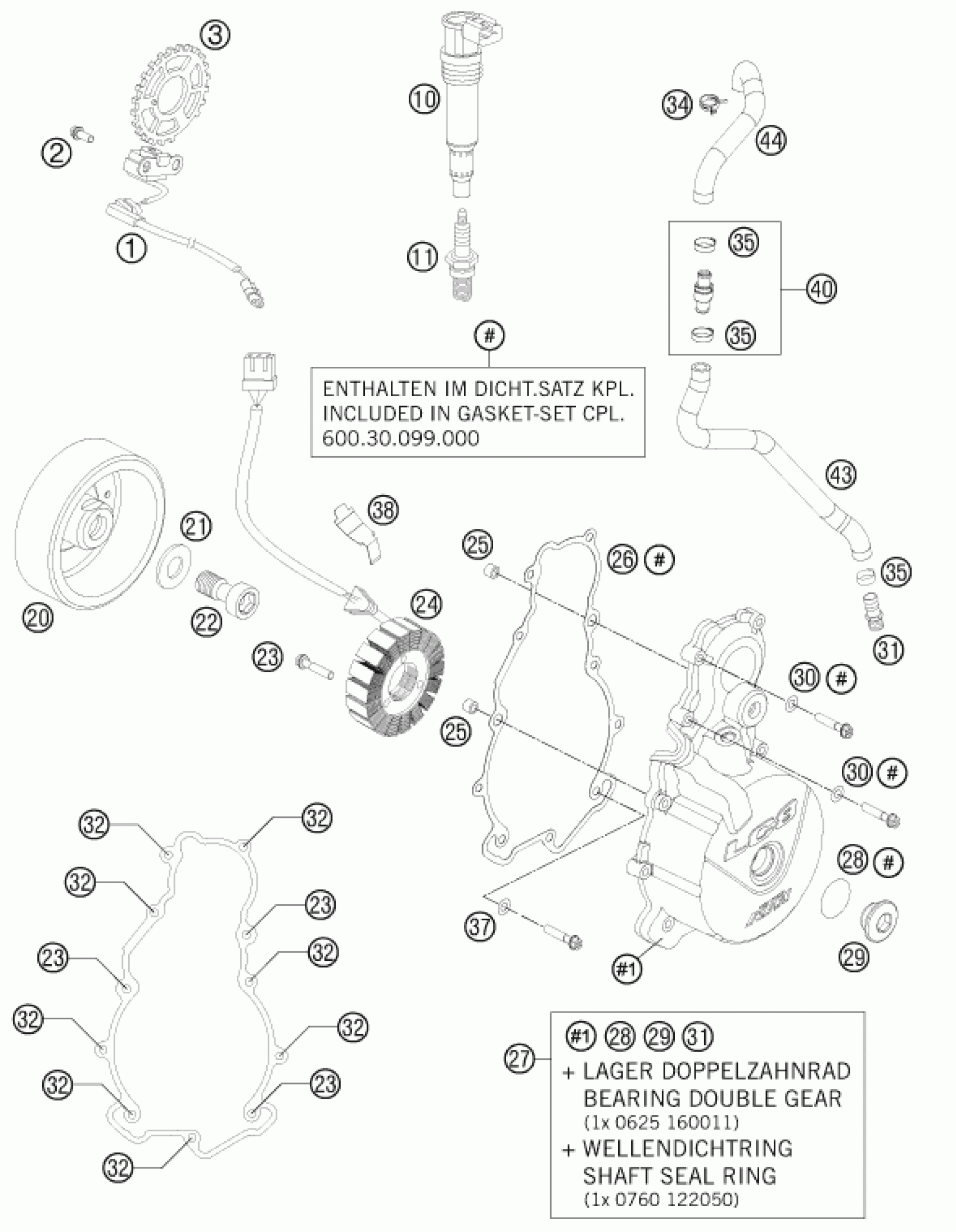

KTM 990 SUPERMOTO R 2012 IGNITION SYSTEM Diagram

PULSE GENERATOR LC8 04

60039034100

$68.62

HH collar screw M6x16 TX30

0025060166

$3.08

COIL SPROKET 22Z O. CYL. PIN

61039020000

$3.23

STICK COIL 03

60039006000

$94.80

SPARK PLUG M12X1,25 ''8''

60139093000

$24.96

WASHER 17X32X4 03

60039040010

$5.23

AH EXPAND. SCREW M16X1,5 05

60039003100

$7.75

HH collar screw M6x35 TX30

0025060356

$3.08

IGNITION ROTOR 04

60039005100

$818.68

STATOR 03

60039004000

$245.67

DOWEL 9,8 X 7 X 10

49030090000

$2.05

IGNIT.COVER GASK.MATRI.CS0,5MM

60030040100

$31.78

IGNITION COVER CPL. 06

6003000214423

$200.74

o-ring 24.00x2.50 Viton

07700240251

$3.08

SCREW PLUG M24X1,5 PA 6.6

6003009400023

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

VENTILATION CONNECTOR M16X1,5

60030022000

$8.31

HH collar screw M6x30 TX30

0025060306

$3.08

CLAMP STD DN22

00049220121

$2.05

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

CABLE SUPPORT 03

60011094000

$5.23

WASHER DIN0125-A 6,4

0125060003

$1.49

generator line bracket

60039040020

$3.08

BACK-PRESSURE VALVE CPL.

60030090344

Unavailable

ENGINE BREATHER HOSE BOTTOM

62630087001

$22.73

ENGINE BREATHER HOSE TOP

62630087002

$18.55
