Partiron

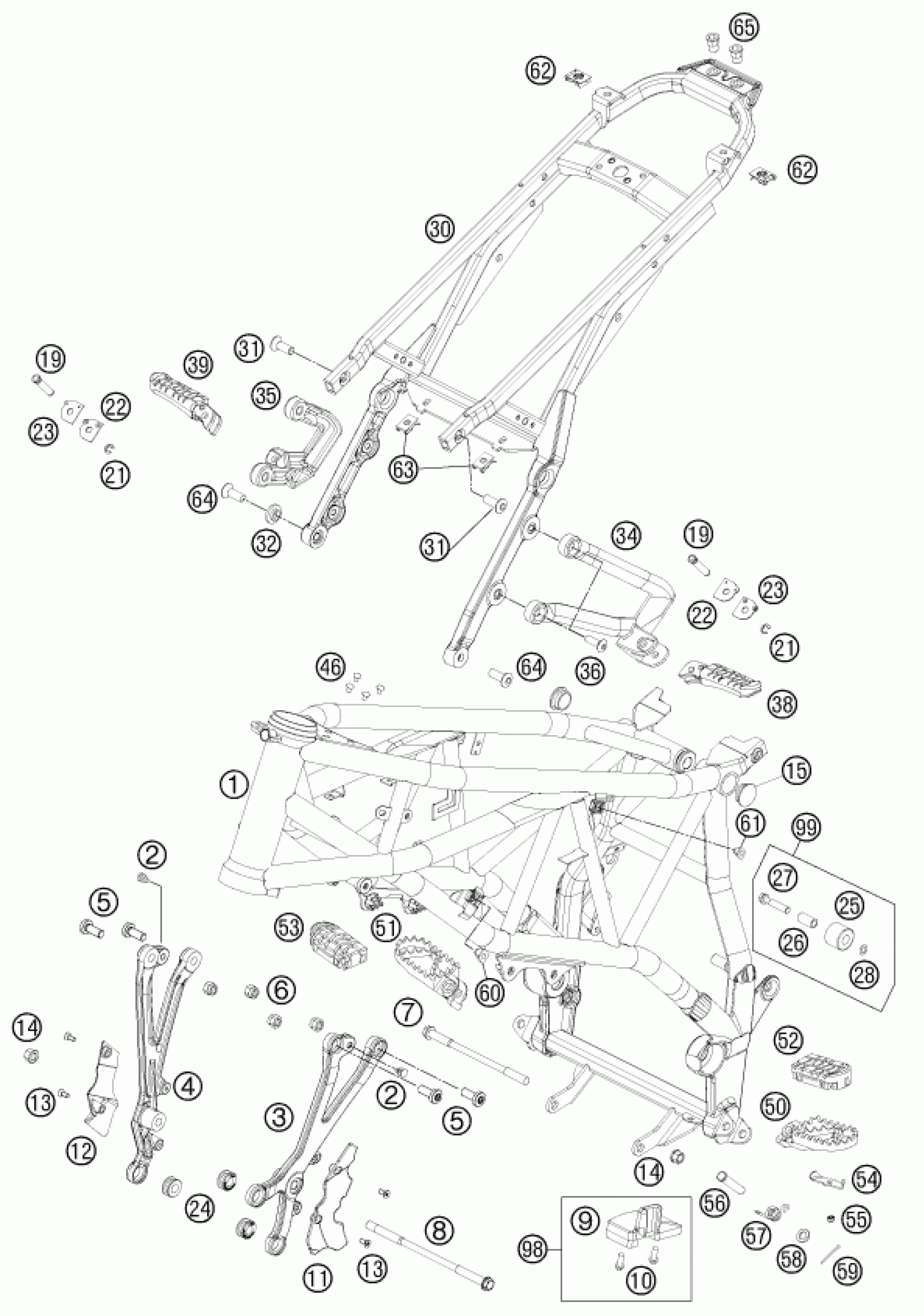

KTM 990 SUPERMOTO R 2012 FRAME Diagram

#

Description
Price

1

FRAME ''626LA'' ORANGE

6260300130004

Unavailable

2

PLASTIC CAP SFL10

54403135000

$2.05

3

ENGINE SUPPORT L/S 07

6250300500033S

Unavailable

4

ENGINE SUPPORT R/S 07

6250300600033S

$87.14

5

AH collar screw M10x24 ISA45

0035100249

$3.08

6

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

7

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

8

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

9

CHAIN SLIDING BLOCK 05

60004076100

$8.78

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

11

COVER ENGINE SUPPORT LEFT

62603005050

$4.11

12

COVER ENGINE

62603006050

$4.11

13

COUNTERSUNK SCREW ISA25 M5X12

0019050121

$2.05

14

COLLAR NUT M10 WS=13

54630044000

$1.49

15

PLUG SFL28 05

61003088000

$2.05

19

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

21

retaining washer DIN 6799 - 6

0799060003

$1.49

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

24

RUBBER SLEEVE 03

60003098000

$4.11

25

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

26

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

27

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

28

LOCK WASHER 8MM

36003014000

$2.05

30

SUB FRAME SM BLACK 2011

6260300220033

$608.03

31

COUNTERSUNK SCREW ISA45 M10X28

0019100289S

$5.23

32

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

34

FOOTREST BRACKET REAR L/S 07

6250304800033S

$141.74

35

FOOTREST BRACKET REAR R/S 07

6250304900033S

$127.71

36

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

38

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

39

Footrest cmpl. r/s rear 03

60003051000

$61.89

46

PLUG ZK 8/5 06

60103088000

$1.49

50

FOOT PEG L/S SILVER 02

59003040250

$43.66

51

FOOT PEG R/S SILVER 02

59003041250

$43.66

52

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

53

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

54

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

55

Self locking nut DIN 985 M5

0985050003

$2.05

56

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

57

FOOTREST SPRING L/S & R/S

54603041000

$5.23

58

washer DIN 125 A 10.5

0125100003

$2.05

59

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

60

CAGE NUT M8

60003095100

$2.05

61

CAGE NUT M6 SL K100-1 1,5MM

60011038000

$2.32

62

RANGE CHANGE METAL NUT M8

54603048000

$4.11

63

clip nut M6

54603048100

$4.11

64

COUNTERSUNK SCREW ISA45 M10X23

0019100239S

$4.11

65

BLIND RIVET NUT M8 HUC/ROF 5 0

61003002080

$6.26

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

$12.52
