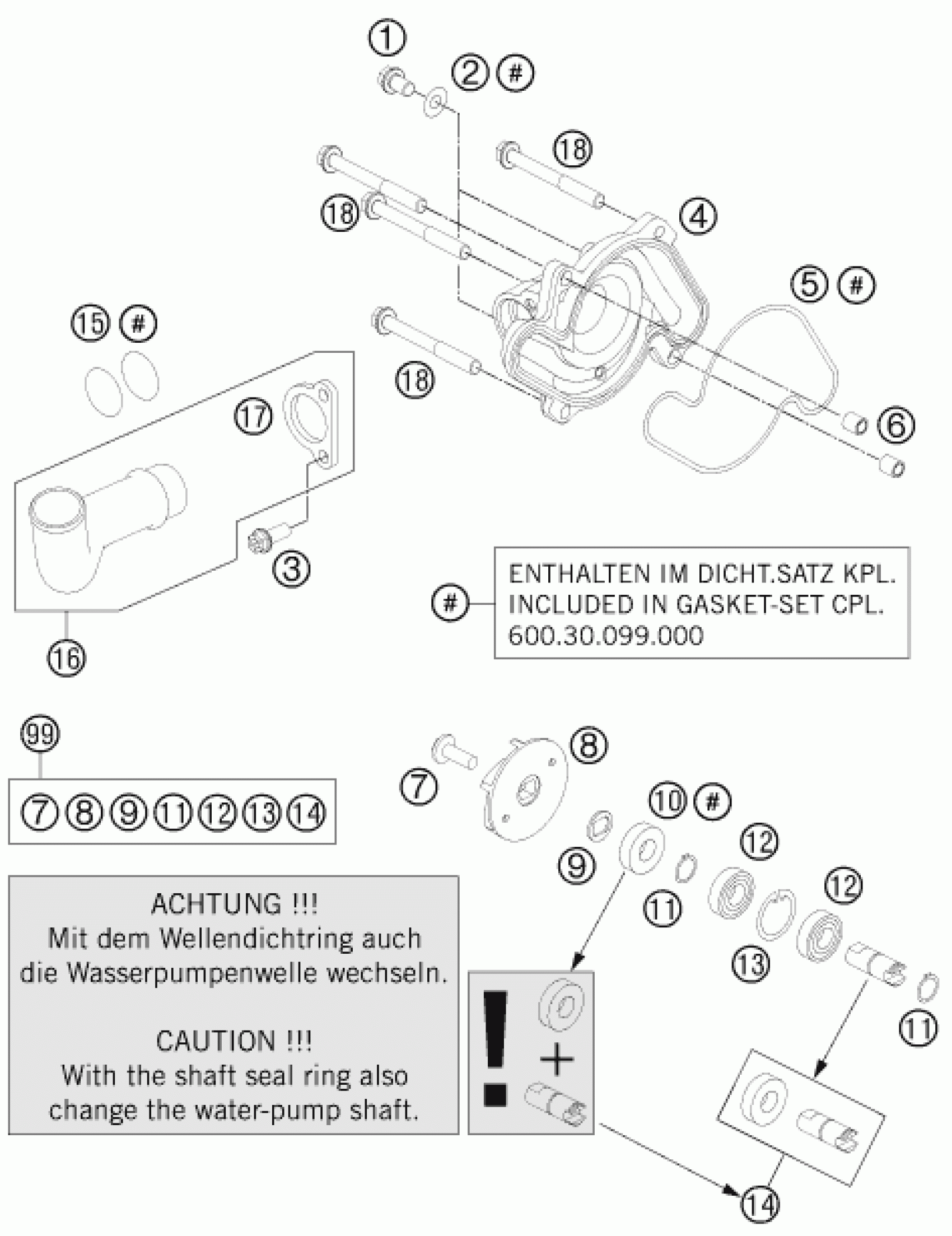

KTM 990 SUPERMOTO R 2011 WATER PUMP Diagram

#

Description
Price

1

HH collar screw M6x10 TX30

0025060106

Unavailable

2

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

3

HH collar screw M6x16 TX30

0025060166

Unavailable

4

WATERPUMP COVER

6003505210023

Unavailable

5

WATER-PUMP GASKET 03

60035053000

Unavailable

6

dowel sleeve 6x8x11.5

59030023000

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

8

WATER-PUMP WHEEL LC8 03

60035055100

Unavailable

9

double-d washer 16x1 SST

60035055150

Unavailable

10

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

11

retaining ring DIN 471 12x1

0471120010

Unavailable

12

GROOVED BALL BEARING 6901V C3

0625069010

Unavailable

13

CIRCLIP DIN472 D=24X1,2

0472240120

Unavailable

14

WATER PUMP SHAFT W/ SEAL RING

60035054144

Unavailable

15

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

16

ALUMINIUM TUBE WATER-PUMP CPL.

62535021000

Unavailable

17

FIXING CLAMP WATER-P. TUBE 03

60035021050

Unavailable

18

HH collar screw M6x60 TX30

0025060606

Unavailable

99

WATER PUMP REP. KIT 09-13

60035055010

Unavailable
