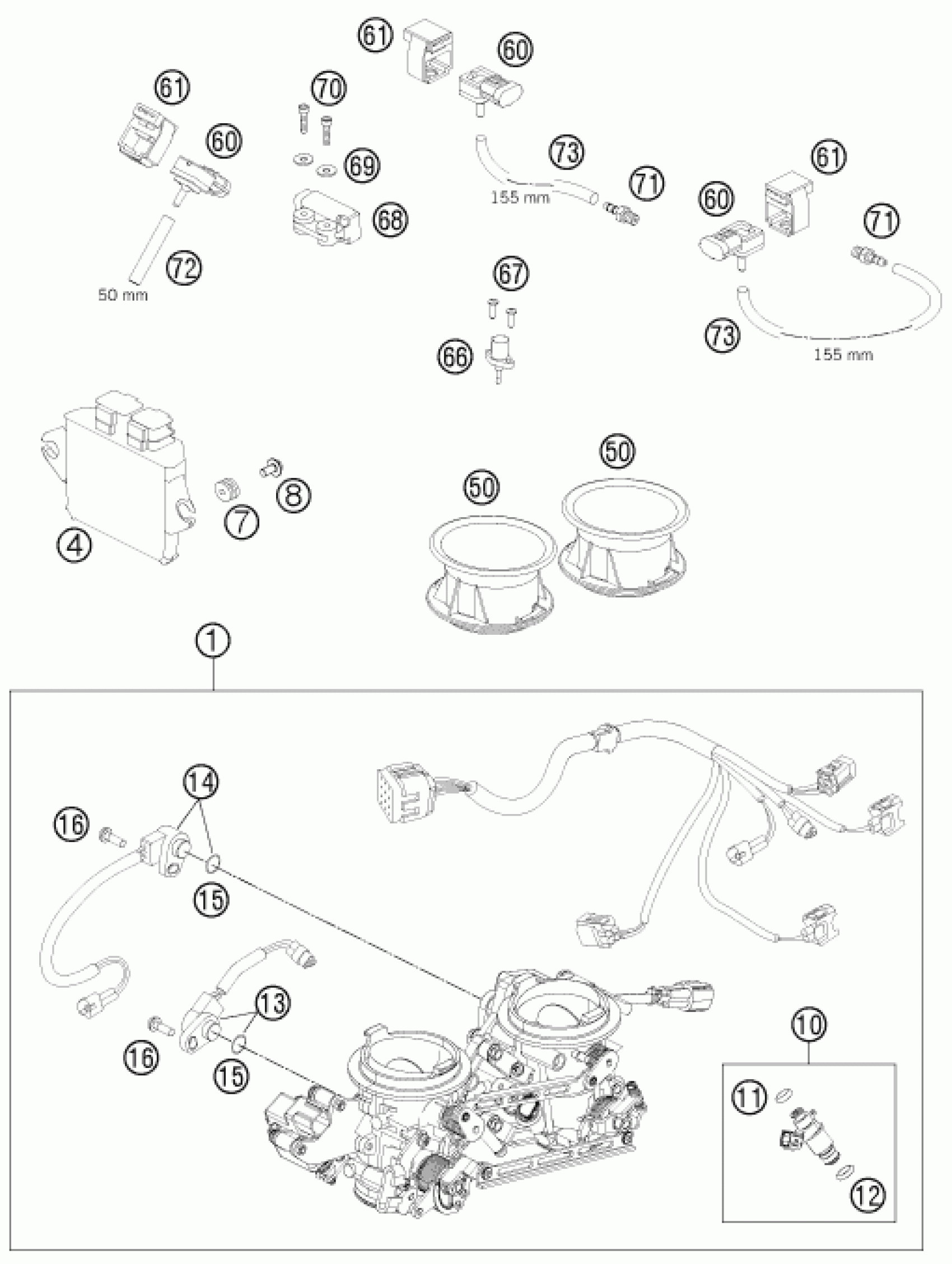

KTM 990 SUPERMOTO R 2011 THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY CPL. 05

61041001000

Unavailable

4

ELECTRONIC CONTROL UNIT

61041031200

Unavailable

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

8

COLLAR SCREW M6X12 TX

0023060123

Unavailable

10

INJECTOR CPL. 08-13

61041023044

Unavailable

11

O-RING INJECTOR

61041023010

Unavailable

12

O-RING INJECTOR

61041023020

Unavailable

13

THROTTLE POS. SENSOR CPL.

61041077000

Unavailable

14

THROTTLE POS. SENSOR CPL.

61041177000

Unavailable

15

O-RING THROTTLE POS. SENSOR

61041077010

Unavailable

16

SCREW THROTTLE POS. SENSOR

61041077020

Unavailable

50

INTAKE TRUMPET 05

61041040000

Unavailable

60

PRESSURE SENSOR 06

61041085100

Unavailable

61

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

66

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

67

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

68

ROLLOVER SENSOR 05

61041088000

Unavailable

69

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

Unavailable

70

AH SCREW DIN 912-M 4X20

0912040203

Unavailable

71

VACUUM CONECTION 2006

61036023100

Unavailable

72

HOSE 3,2X8,5 L=50 MM 05

61041095050

Unavailable

73

HOSE 32X8,5 L=155MM 08

62541095155

Unavailable
