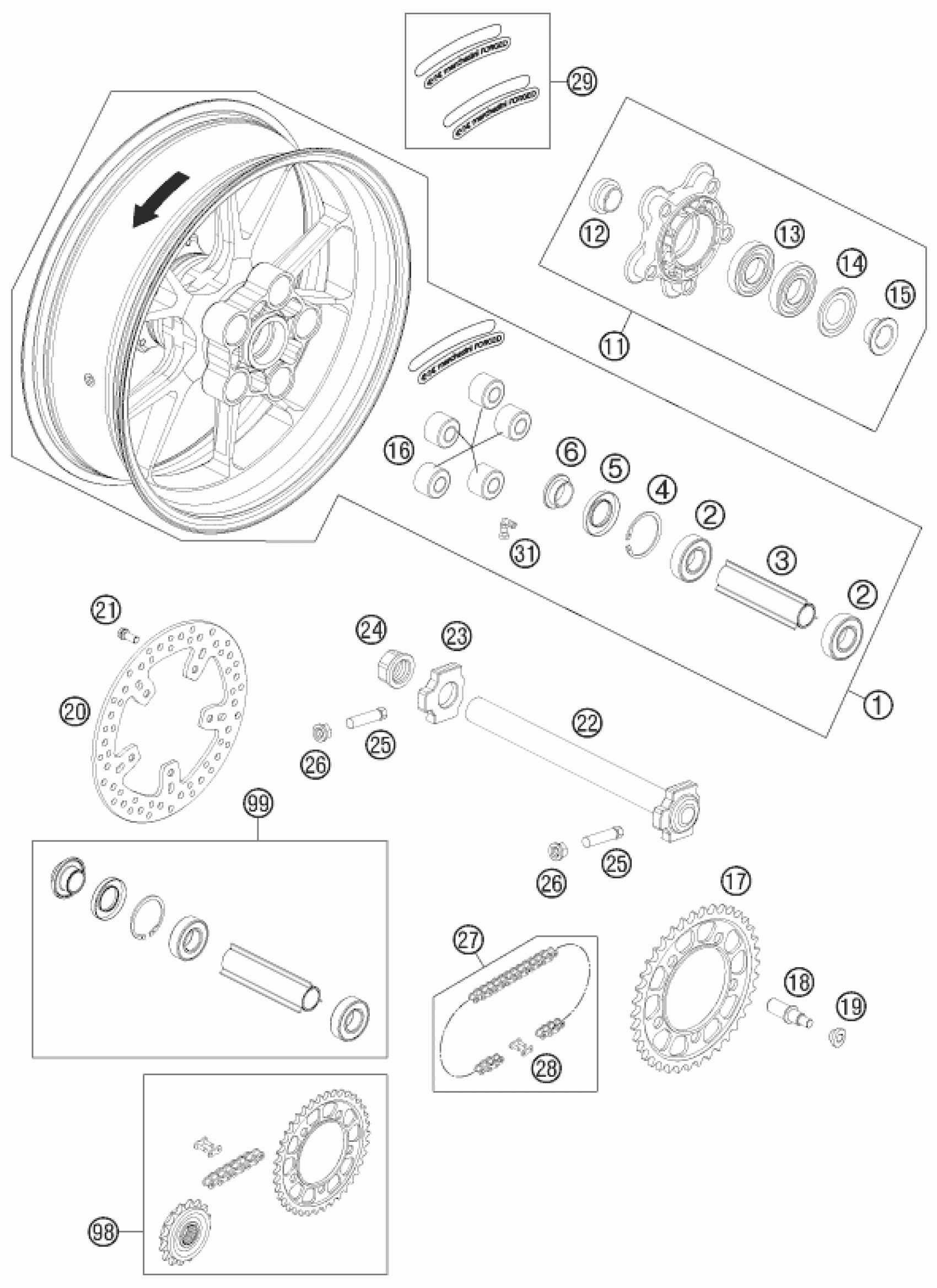

KTM 990 SUPERMOTO R 2011 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 990 SM-R 09

6261000104430

Unavailable

2

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

3

BEARING SPACER TUBE REAR 05

61010011000

Unavailable

4

CIRCLIP DIN0472-52X2

0472052200

Unavailable

5

Radial shaft seal 30X52X7

0760305271

Unavailable

6

SPACER BUSH. REAR WHEEL R/S 03

60010013000

Unavailable

11

SPROCKET SUPPORT CPL. 06

61010050144

Unavailable

12

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

13

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

14

NILOS RING 6006AV

60110016000

Unavailable

15

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

16

DAMPING RUBBER 05

61010059000

Unavailable

17

REAR SPROCKET 38-T STEEL 05

61010051138

Unavailable

17

REAR SPROCKET 39-T STEEL 05

61010051139

Unavailable

17

REAR SPROCKET 40-T STEEL 05

61010051140

Unavailable

17

REAR SPROCKET 41-T STEEL 05

61010051141

Unavailable

17

REAR SPROCKET 42-T STEEL 05

61010051142

Unavailable

18

BOLT FOR SPROCKET SUPPORT 05

61010056000

Unavailable

19

NUT REAR SPROCKET 05

61010057000

Unavailable

20

BRAKE DISK REAR D=240MM 05

61010060000

Unavailable

21

SPECIAL SCREW M8X18 05

61009062018

Unavailable

22

WHEEL SPINDLE REAR CPL.

60010081144

Unavailable

23

Chain tension adjuster, right,

60010084000

Unavailable

24

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

25

screw M10x1.25x50 WS10

50304040100

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

27

CHAIN 525 WITH MASTER LINK 03

60010165118

Unavailable

28

MASTER LINK FOR CHAIN 525 03

60010066000

Unavailable

29

STICKER MARCH. 2L/S+2R/S YELL.

00050000121

Unavailable

31

VALVE ANGLED 90° 05

61009076000

Unavailable

99

REAR WHEEL REP. KIT

61010015000

Unavailable

98

DRIVETRAIN KIT SM/SMR 17T/41T

00050002012

Unavailable
