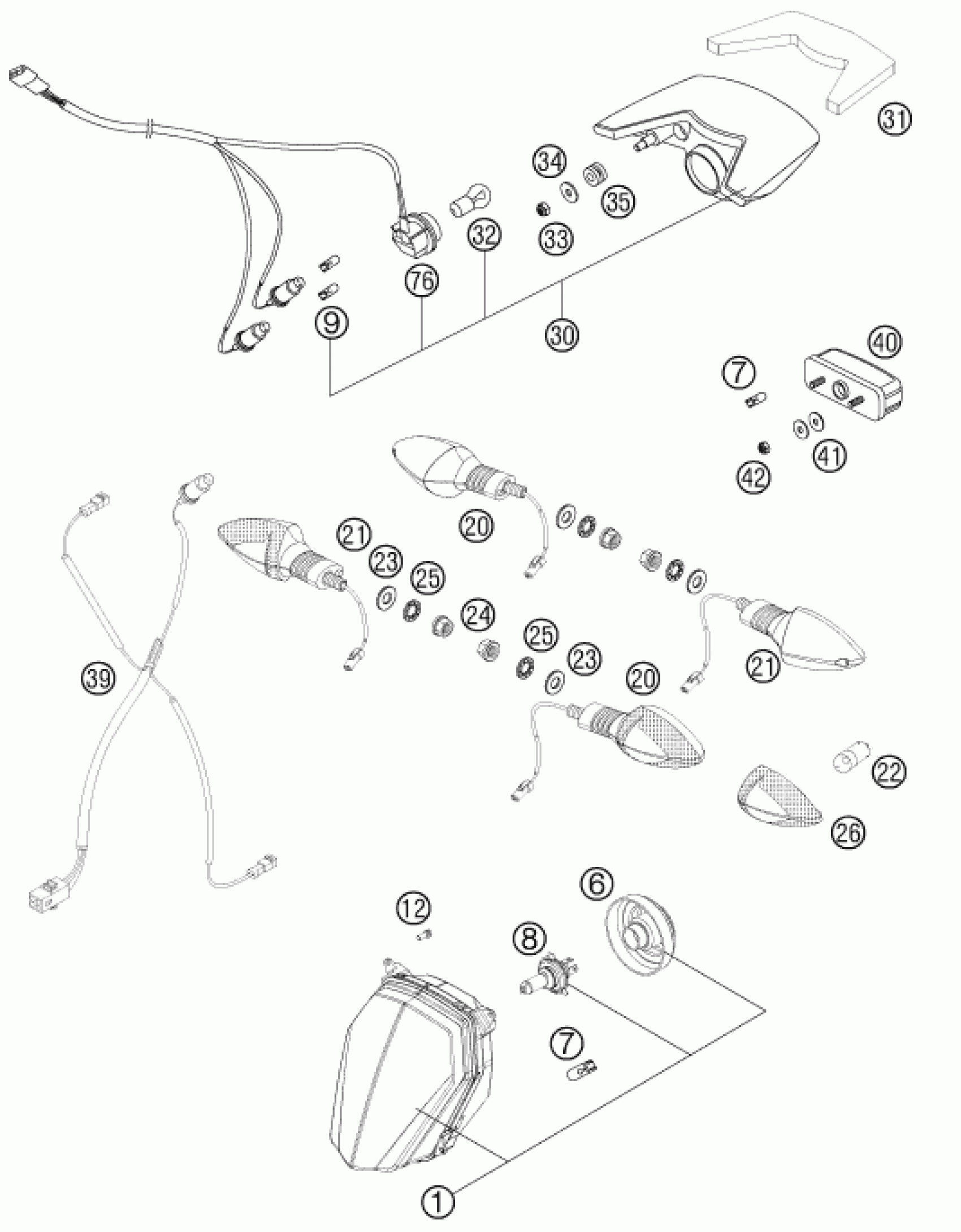

KTM 990 SUPERMOTO R 2011 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT RIGHT TR. 08

62614001000

$181.76

6

RUBBER CAP FOR HEAD LIGHT

76514001050

$10.74

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

8

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

9

BULB RED WR5W 12V

49011435200

$5.65

12

HH collar screw M5x12 TX30

0025050126

$3.08

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

BULB 12V ORANGE (RY10W)

60114027000

$6.63

23

Washer DIN0433-M10

0433100003

$1.49

24

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

26

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

30

REAR LIGHT CPL.SMOKED GLASS 07

58614140044

Unavailable

31

METAMOLL FOR REARLIGHT 08

62614040050

$6.44

32

BULB RED PR21W 12V

60014048100

$9.06

33

Self lock. nut DIN985-M6-A2

0985060003

$2.05

34

Washer DIN9021-A 6.4

0021060003

$2.05

35

rubber grommet 16x10.8x3

58214069051

$5.23

39

WIRING HARNESS REAR 08

62611076000

$17.77

40

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

41

washer DIN 9021 A - 5.3

0021050003

$1.49

42

Self locking nut DIN 985 M5

0985050003

$2.05

76

CABLE HARNESS REAR PART 07

58611176100

$25.00
