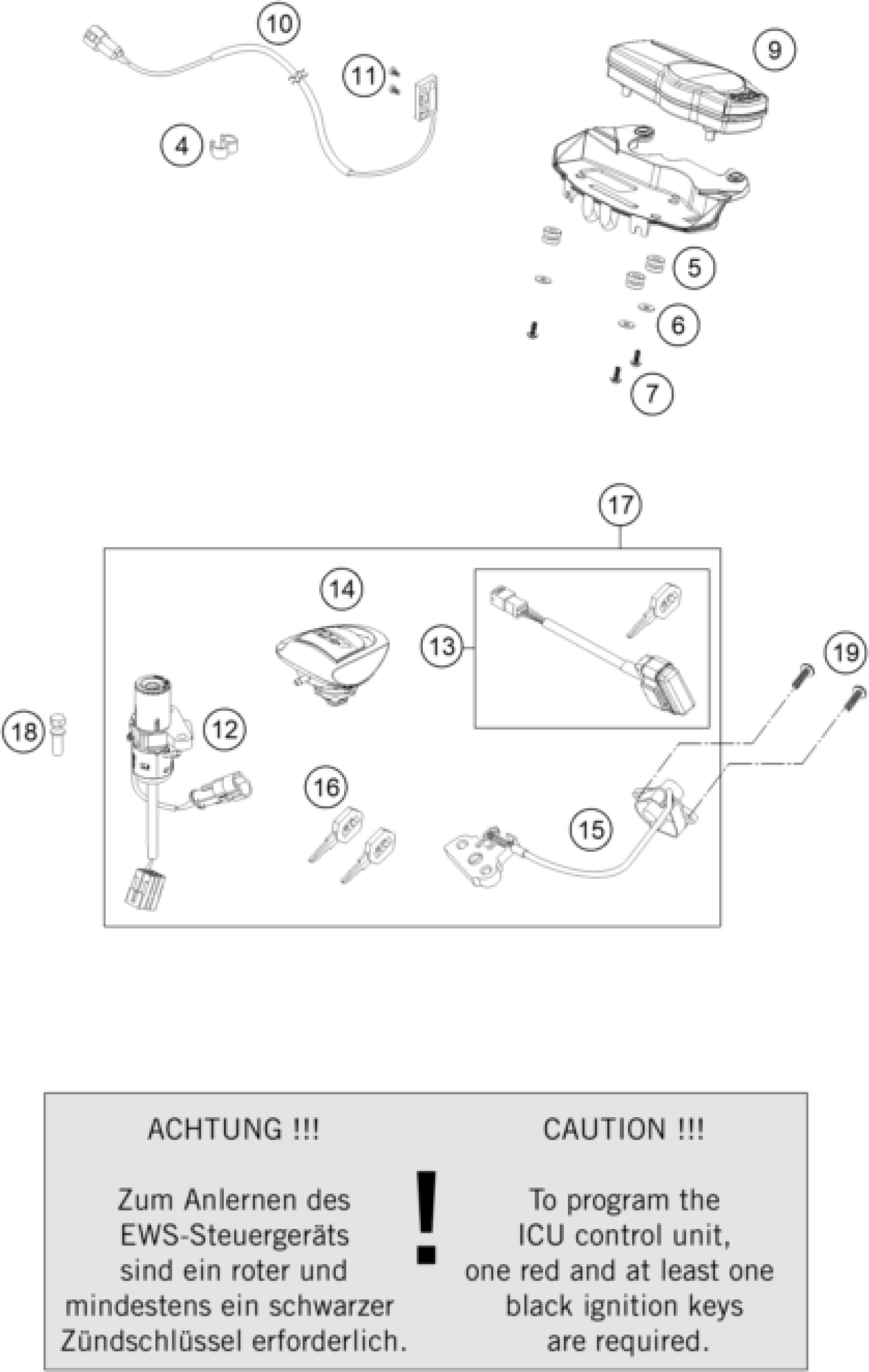

KTM 990 SUPERMOTO R 2011 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

4

CLIP 5/7 MM 06

60111094000

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable

7

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

9

SPEEDOMETER 10

61114069300

Unavailable

10

SPEEDOMETER SENSOR 10

62514068200

Unavailable

11

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

12

IGNITION LOCK

62611066000

Unavailable

13

IMMOBILIZER 990SM W. MASTERKEY

62611021000

Unavailable

14

TANK PLUG

58407008300

Unavailable

15

SEAT LOCK

62607050000

Unavailable

17

LOCK SYSTEM 990SM 08

62611066044

Unavailable

18

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

19

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

16

KEY WITH TRANSPONDER

62611067000

Unavailable
