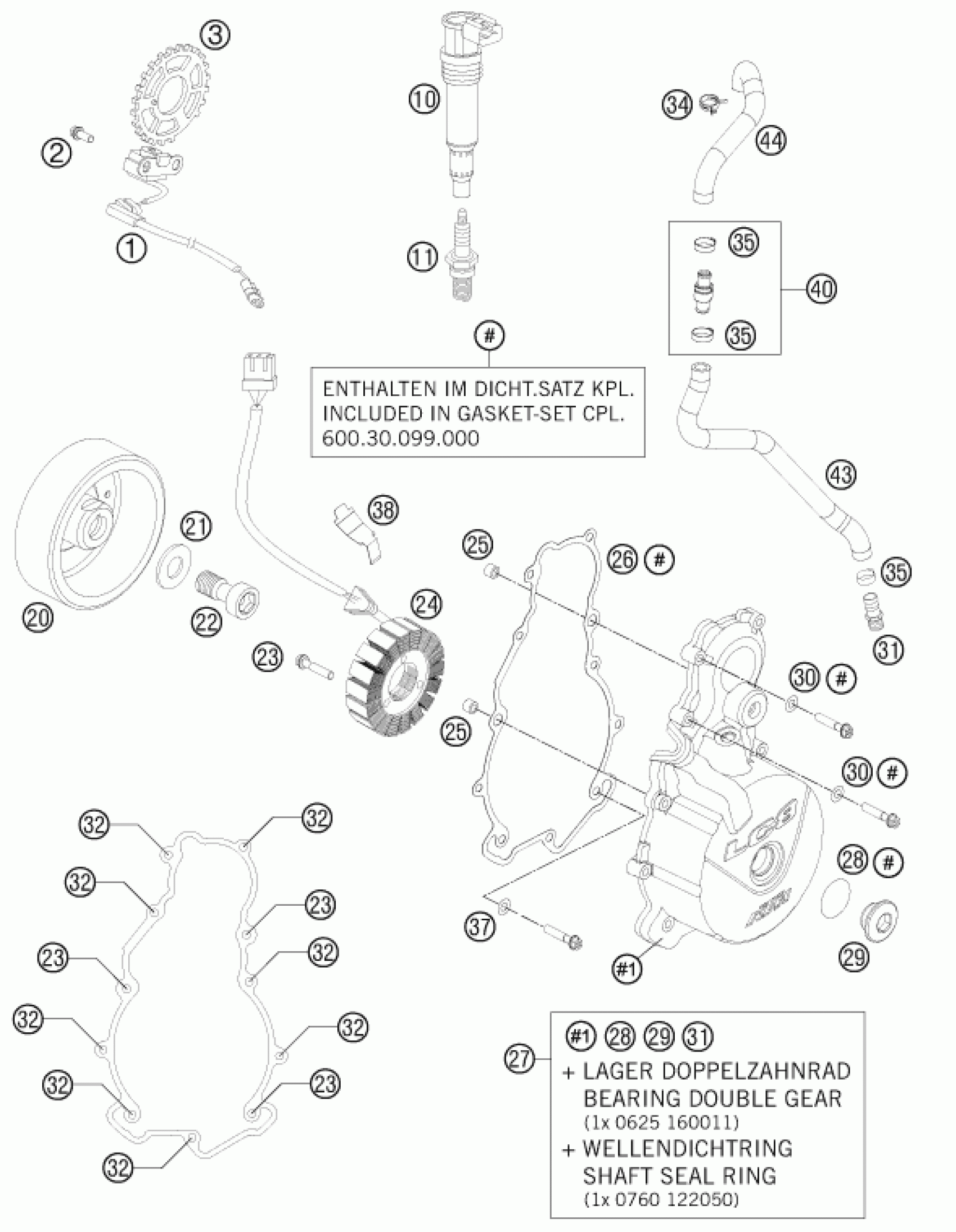

KTM 990 SUPERMOTO R 2011 IGNITION SYSTEM Diagram

#

Description
Price

1

PULSE GENERATOR LC8 04

60039034100

Unavailable

2

HH collar screw M6x16 TX30

0025060166

Unavailable

3

COIL SPROKET 22Z O. CYL. PIN

61039020000

Unavailable

10

STICK COIL 03

60039006000

Unavailable

11

SPARK PLUG M12X1,25 ''8''

60139093000

Unavailable

20

IGNITION ROTOR 04

60039005100

Unavailable

21

WASHER 17X32X4 03

60039040010

Unavailable

22

AH EXPAND. SCREW M16X1,5 05

60039003100

Unavailable

23

HH collar screw M6x35 TX30

0025060356

Unavailable

24

STATOR 03

60039004000

Unavailable

25

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

26

IGNIT.COVER GASK.MATRI.CS0,5MM

60030040100

Unavailable

27

IGNITION COVER CPL. 06

6003000214423

Unavailable

28

O-RING 24X2,5 NBR

0770024025

Unavailable

29

SCREW PLUG M24X1,5 PA 6.6

6003009400023

Unavailable

30

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

31

VENTILATION CONNECTOR M16X1,5

60030022000

Unavailable

32

HH collar screw M6x30 TX30

0025060306

Unavailable

34

CLAMP STD DN22

00049220121

Unavailable

35

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

36

CABLE SUPPORT 03

60011094000

Unavailable

37

WASHER DIN0125-A 6,4

0125060003

Unavailable

38

generator line bracket

60039040020

Unavailable

40

BACK-PRESSURE VALVE CPL.

60030090344

Unavailable

43

ENGINE BREATHER HOSE BOTTOM

62630087001

Unavailable

44

ENGINE BREATHER HOSE TOP

62630087002

Unavailable
