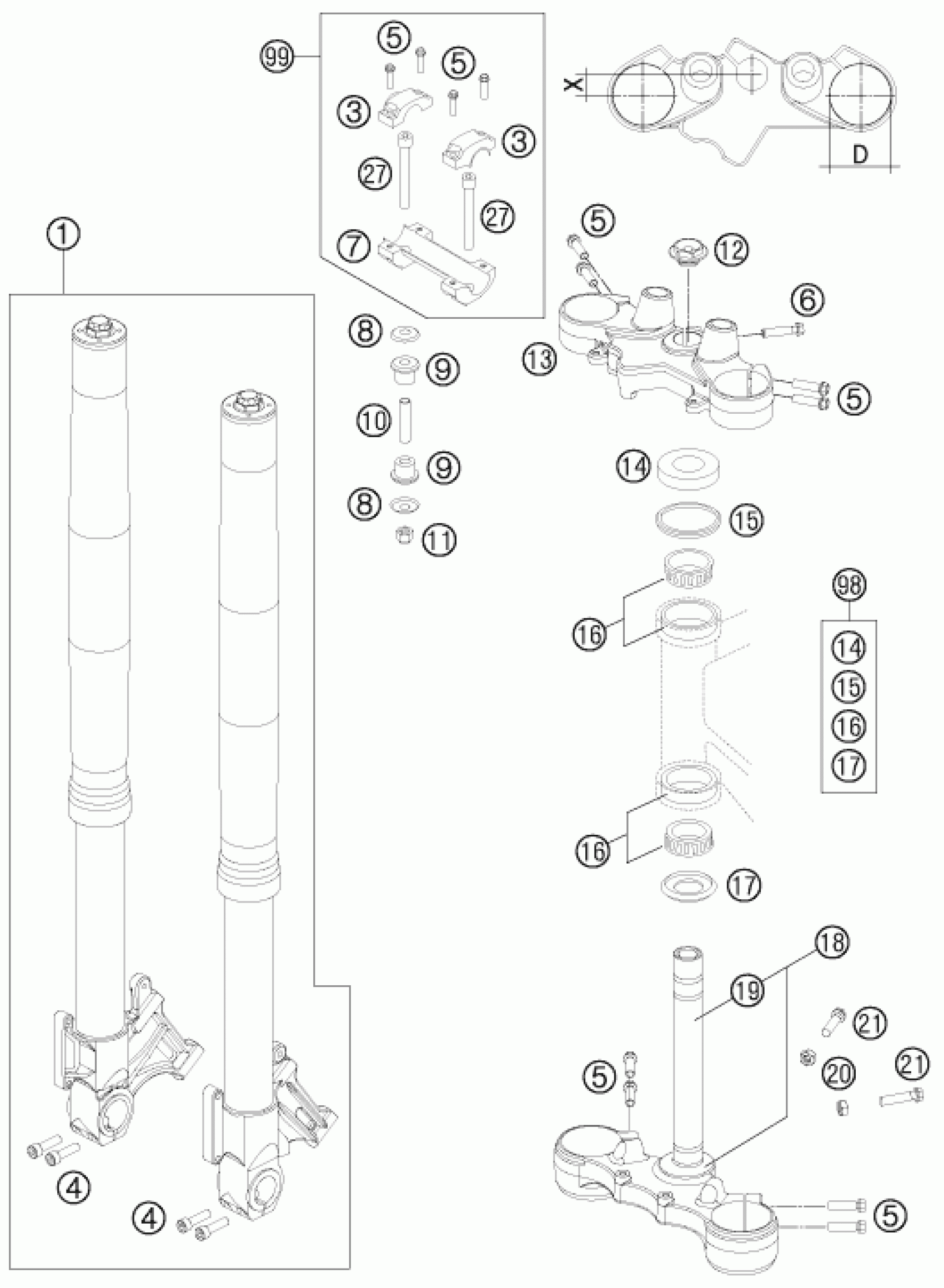

KTM 990 SUPERMOTO R 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM 990 SM-R 2009

14187E2101

$2,291.87

3

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

4

AH SCREW DIN0912-M 8X30

0912080303

$2.05

5

AH collar screw M8x30 ISA45

0035080306

$3.08

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

7

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

8

washer 10.5x32x2

56401042000

$4.11

9

rubber bushing

56401040000

$5.23

10

SPACER TUBE 10,2X12X44

56401041100

$5.88

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

13

TOP TRIPLE CLAMP

6250103402633S

$213.77

14

STEERING HEAD COVER 05

61001086000

$13.92

15

STEARING HEAD GASKET TOP

54601184000

$7.10

16

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

17

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

18

BOTTOM TRIPLE CLAMP CPL.

6250103202633S

$311.72

19

FORK TUBE LC8 ADV 03

60001033000

$65.16

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

HH SCREW DIN0933-M 8X30

0933080303

$2.05

27

AH SCREW DIN6912-M10X70

0984100703

$7.00

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
