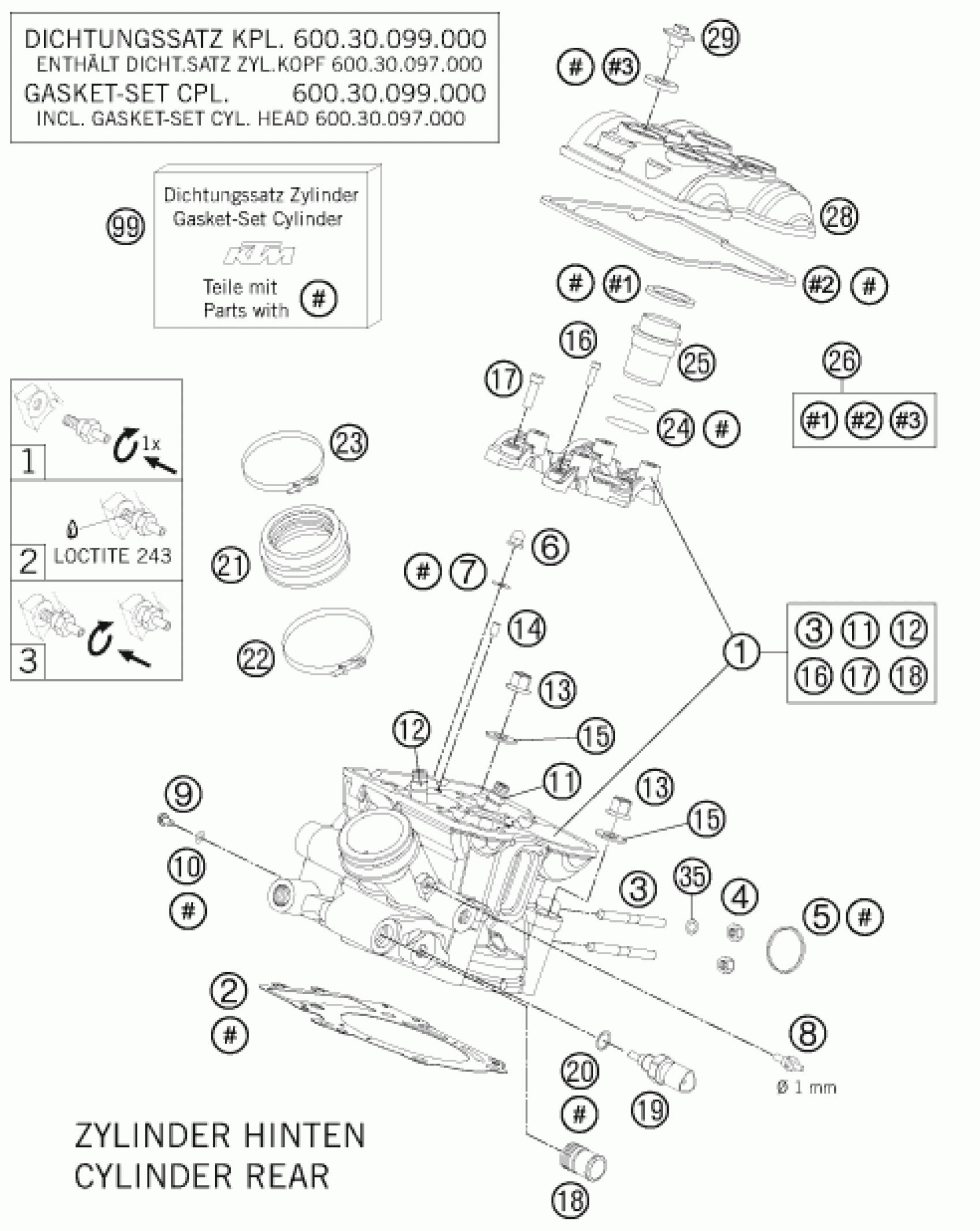

KTM 990 SUPERMOTO R 2011 CYLINDER HEAD REAR Diagram

CYLINDER HEAD REAR CPL.

6013612014423

$880.07

CYLINDER HEAD GASKET 0,5 101MM

60030036000

$53.57

STUD DIN0835-M 8X25 10.9

0835080256

$3.08

self-locking nut M8 Cu

51010086100

$3.08

Exhaust gasket 05

61005005000

$10.00

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

WASHER DIN0125-A 6,4

0125060003

$1.49

VACUUM CONECTION 2006

61036023100

$10.46

HH collar screw M6x10 TX30

0025060106

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

VALVE GIUDE EXHAUST

60036026101

$29.07

VALVE GIUDE INTAKE

60036025101

$11.40

hex collar nut M10 WS13

60036078200

$3.08

needle roller DIN 5402 5x9.8

0402050980

$1.49

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

TEMPERATURE SENSOR WATER 07

75035047000

$24.40

o-ring 10.00x2.00 silicone

0770100020

$2.05

RUBBERSLEEVE INTAKE FLANGE 05

61036044000

$34.31

Hose clamp GEMI 63mm 05

61036047000

$7.56

HOSE CLAMP GEMI 66MM 05

61036048000

$9.53

O-RING 29,87X1,78 VITON

0770298178

$2.05

INSERT SPARK-PLUG SHAFT

60136075100

$27.39

VALVE COVER GASKET SET FR+RR

60036099000

$32.44

VALVE COVER REAR

6003615210023

$41.97

collar screw M 6 WS=10 03

60036052020

$3.08

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

GASKET SET CYL. HEAD KPL. 03

60030097000

$283.20
