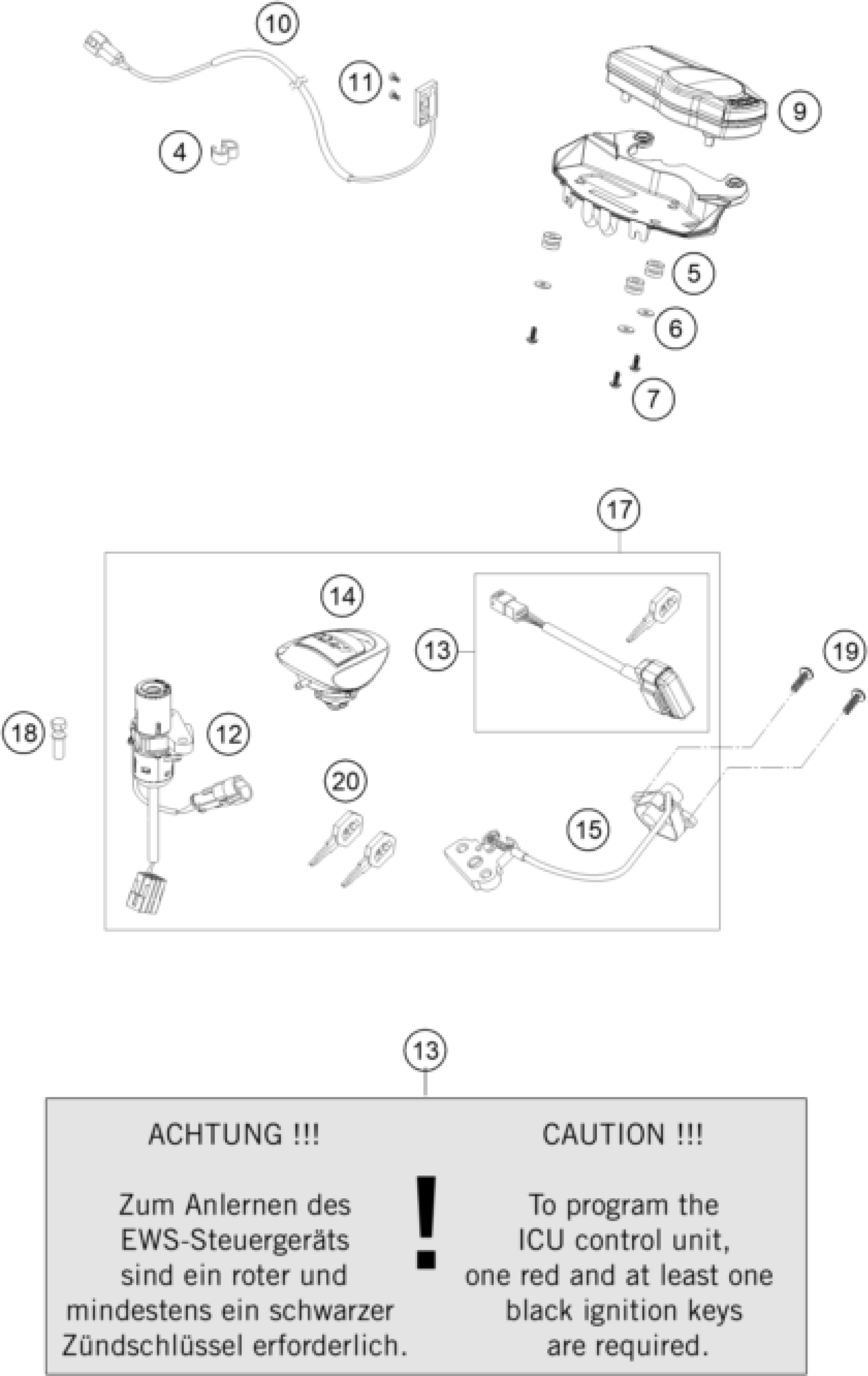

KTM 990 SUPERMOTO R 2010 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

19

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

9

SPEEDOMETER 07

61114069100

Unavailable

10

SPEEDOMETER SENSOR 06

62514068100

Unavailable

4

CLIP 5/7 MM 06

60111094000

Unavailable

7

EJOT PT screw K50x12

0081050121

Unavailable

11

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

12

IGNITION LOCK

62611066000

Unavailable

13

IMMOBILIZER 990SM W. MASTERKEY

62611021000

Unavailable

14

TANK PLUG

58407008300

Unavailable

15

SEAT LOCK

62607050000

Unavailable

17

LOCK SYSTEM 990SM 08

62611066044

Unavailable

18

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

20

KEY WITH TRANSPONDER

62611067000

Unavailable
