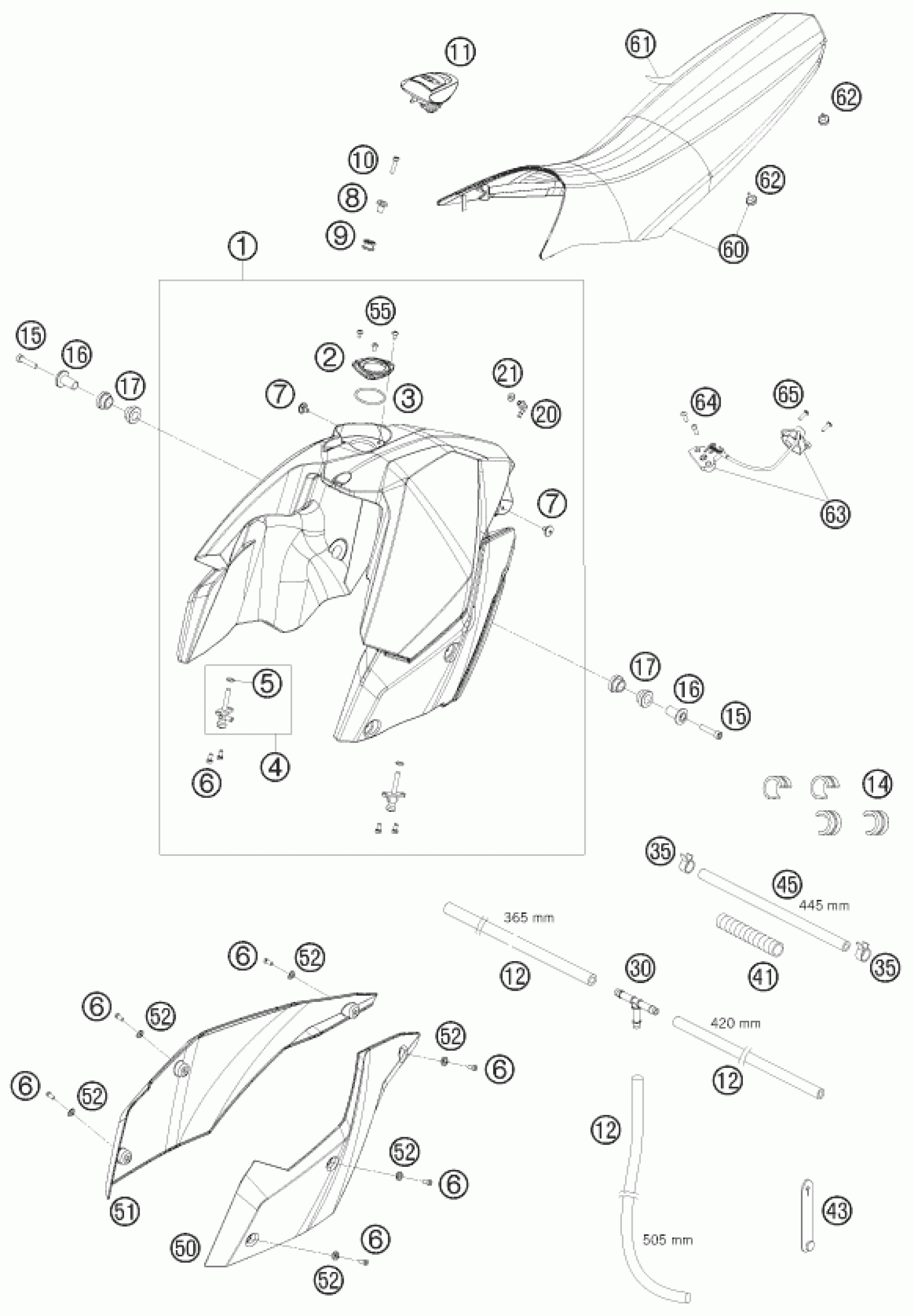

KTM 990 SUPERMOTO R 2009 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. WHITE

6260711304420A

$1,723.57

2

CLOSURE FLANGE

76507008050

$9.90

3

O-ring 50.00X3.00 VITON

0770050030

$5.23

4

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

5

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

6

SHCS ISO 14580 M6x12

014580060126

$2.05

7

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

8

BEARING SLEEVE F. TANK 09

62607060000

$9.72

9

rubber grommet, tank mounting

69007027000

$3.08

10

CYL. SCREW DIN14580 M 6X25

014580060256

$2.05

11

TANK PLUG

58407008300

$287.22

14

SPACER FUEL TANK 05

61007014000

$6.63

15

AH collar screw DIN0912 M8x40

0912080403

$2.05

16

collar bushing, bearing, outsi

61007060000

$9.90

17

collar bushing, front tank hol

61007065000

$7.85

35

YDNAC CLAMP 12,5MM

62607017000

$1.49

41

THERMAL PROTECTION L=105MM 05

62507016050

$6.54

43

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

45

HOSE 6X13 L=445 MM 08

60007216445

$22.71

50

SPOILER L/S BLACK BRILL.

6260815000030A

$301.16

51

SPOILER R/S BLACK BRILL.

6260815100030A

$301.16

52

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

55

SCREW TORX M5X10 05

58605083010

$2.05

60

SEAT BLACK/ORANGE

6260704000004

$175.86

61

SEAT COVER BLACK/ORANGE

6260704005004

$60.30

62

Distance rupper airbox 03

60006001021

$2.05

63

SEAT LOCK

62607050000

Unavailable

64

BHCS ISO 7380 M6X18

0738060181

$2.05

65

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

20

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

21

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

12

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

30

T-connector TS-6 03

60015022000

$5.98
