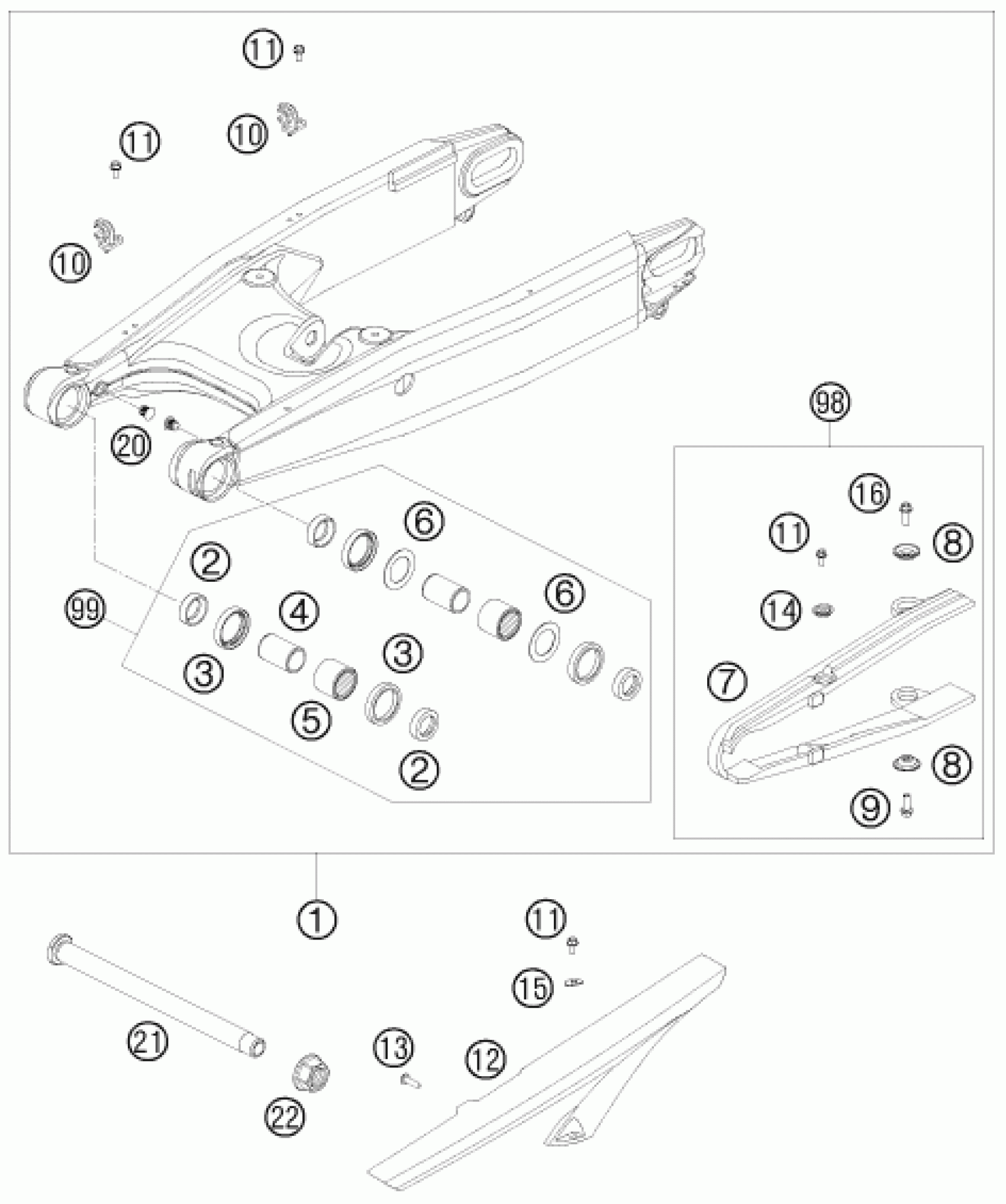

KTM 990 SUPERMOTO R 2009 SWING ARM Diagram

CHAIN GUARD KIT

60004066110

Unavailable

SWING ARM CPL. SM-R SD-R 07

6100403004433

$1,281.10

Bucket f. shaft seal ring 03

60004034000

$8.03

Radial shaft seal 30X40X7

0760304073

$4.11

INNER RING JR20X25X38,5 03

60004032000

$18.13

NEEDLE BUSH HK2526B 03

60004031000

$10.65

Stop disk 03

60004033000

$2.05

CHAIN SLID.GUARD SWINGARM 10

63004066100

$27.48

BUCKET

72210079000

$3.00

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

SPECIAL SCREW M 5,0X10

0009050103

$2.05

CHAINGUARD 05

61004060000

$10.00

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

WASHER CHAINGUARD 05

61004060050

$5.23

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

PLUG SFL12 GREY 05

60004042000

$1.49

SWINGARM BOLT CPL. 05

60004037144

$56.72

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

SWINGARM REP. KIT

60004230010

$86.57
