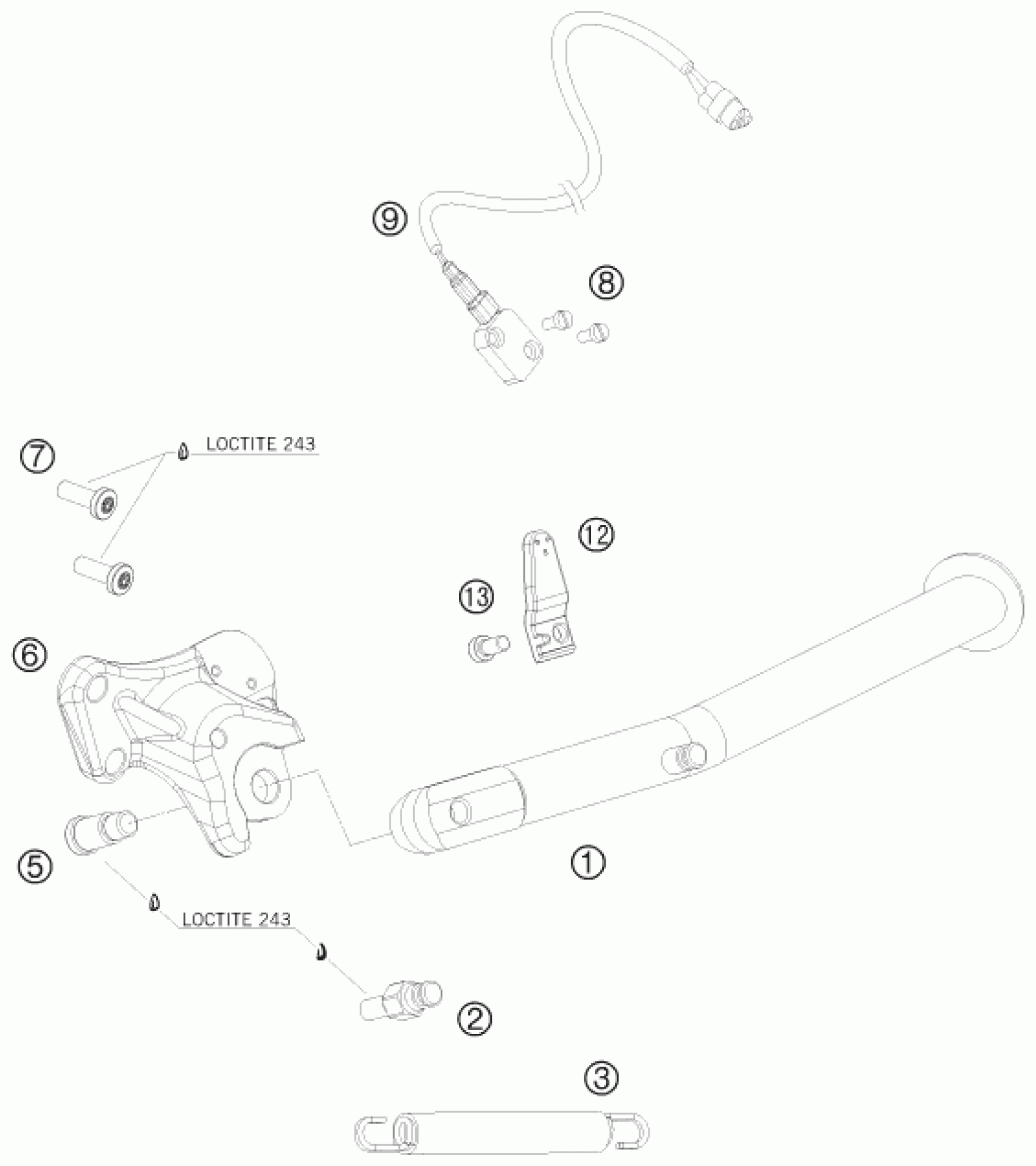

KTM 990 SUPERMOTO R 2009 SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDE STAND L=236MM 07

6250302300033

$99.43

2

SPECIAL SCR. SIDE STAND SPRING

76503028001

$9.90

3

SPRING L=116 MM 05

61003024000

$13.83

5

Screw for side stand M10x31.2

62503027200

$6.72

6

SIDE STAND BRACKET

62603026000

$112.66

7

AH collar screw M10x30 ISA45

0035100309S

$3.08

8

CYL.HEAD SCREW DIN84A M4x10

0084040103

$2.61

9

Side stand sensor

61011045000

$59.64

12

MAGNET HOLDER ADV. 06

60103029050

$5.23

13

SHCS ISO 14580 M6x12

014580060126

$2.05
