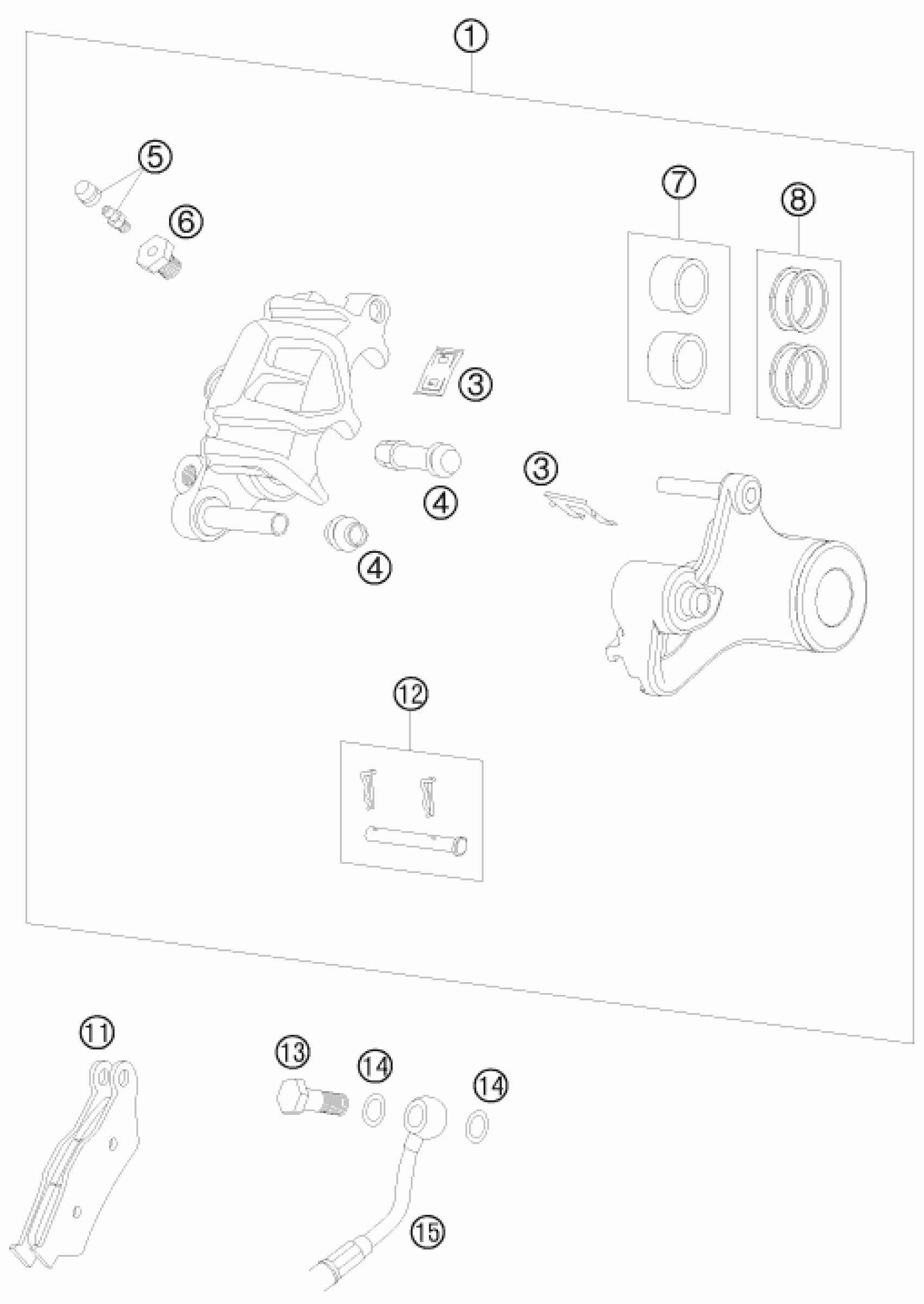

KTM 990 SUPERMOTO R 2009 REAR BRAKE CALIPER Diagram

#

Description

Price

1

CALIPER REAR WITHOUT PADS

6001308000130

$370.91

3

RETAINING PLATE SET REAR 03

60013018100

$16.35

4

CUP SET SHORT

54613218000

$23.55

5

BLEEDER SCREW WITH CAP M6

60013020200

$7.00

6

ADAPTER SCREW

60013020100

$9.53

7

BRAKE PISTONS 05

60013083200

$64.13

8

REP.KIT SEALING RINGS

60013081000

$18.13

11

BRAKEP.SET FR.TOSHIBA TT2701HH

50313030200

$98.17

12

BOLT CPL. 09

77013017000

$25.98

13

banjo bolt M10x1x19 black

54813020100

$9.90

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

BRAKE HOSE REAR 07

6251307200030

$101.78

11

BRAKE PAD SET FRONT ORGANIC

59013930000

Unavailable
