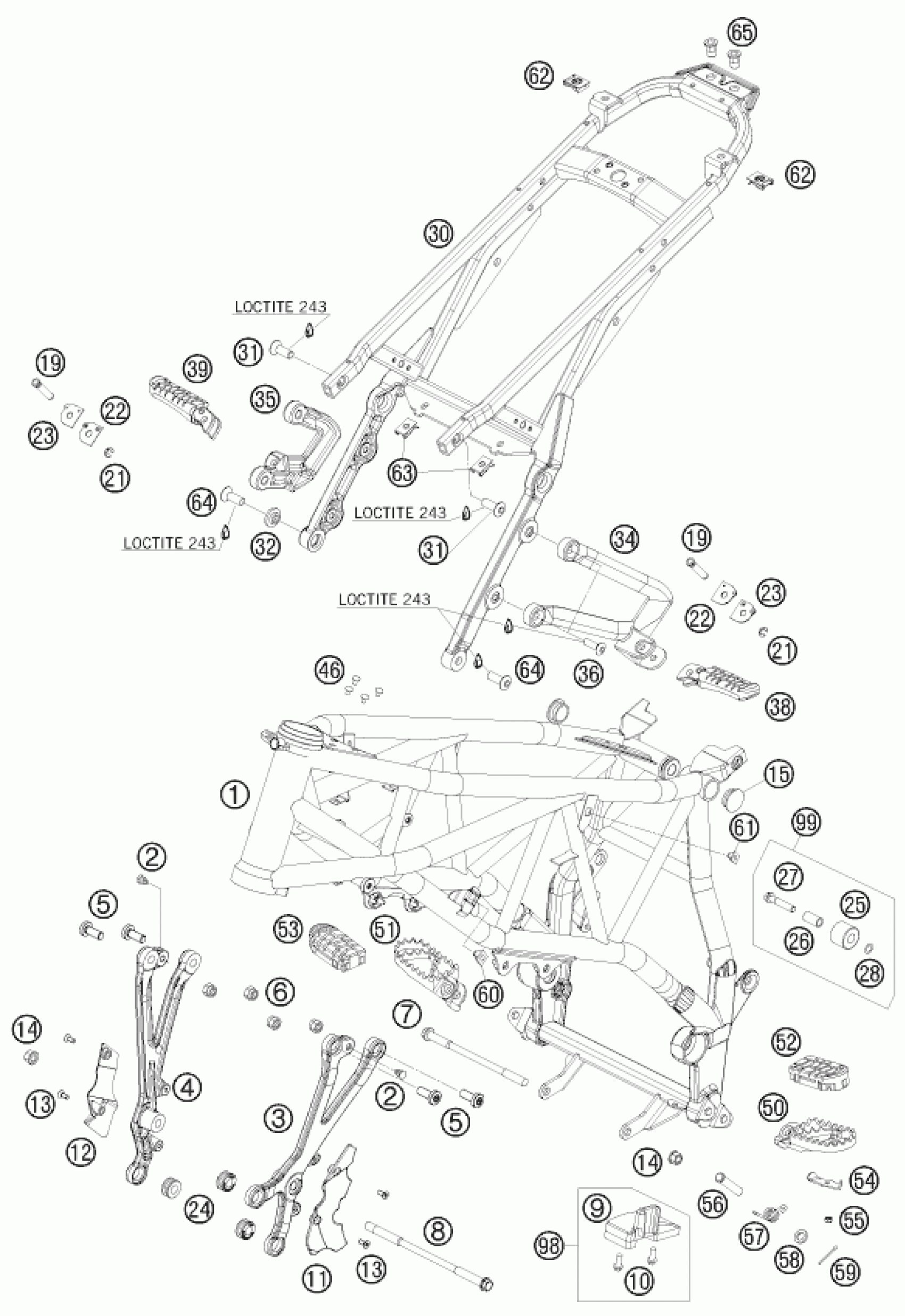

KTM 990 SUPERMOTO R 2009 FRAME Diagram

#

Description
Price

1

FRAME ''FC08'' ORANGE

6260300100004

Unavailable

2

PLASTIC CAP SFL10

54403135000

Unavailable

3

ENGINE SUPPORT L/S 07

6250300500033S

Unavailable

4

ENGINE SUPPORT R/S 07

6250300600033S

Unavailable

5

AH collar screw M10x24 ISA45

0035100249

Unavailable

6

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

7

ENGINE BRAC. SCREW M10X172 03

60003013000

Unavailable

8

ENGINE BRAC. SCREW M10X206 03

60003014000

Unavailable

9

CHAIN SLIDING BLOCK 05

60004076100

Unavailable

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

11

COVER ENGINE SUPPORT LEFT

62603005050

Unavailable

12

COVER ENGINE

62603006050

Unavailable

13

COUNTERSUNK SCREW ISA25 M5X12

0019050121

Unavailable

14

COLLAR NUT M10 WS=13

54630044000

Unavailable

19

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

21

retaining washer DIN 6799 - 6

0799060003

Unavailable

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

24

RUBBER SLEEVE 03

60003098000

Unavailable

25

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

26

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

27

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

28

LOCK WASHER 8MM

36003014000

Unavailable

30

SUB FRAME SM BLACK MATT

6260300210033

Unavailable

31

COUNTERSUNK SCREW ISA45 M10X28

0019100289S

Unavailable

32

COLLAR BUSHING 10X15X25X4 03

60003001051

Unavailable

34

FOOTREST BRACKET REAR L/S 07

6250304800033S

Unavailable

35

FOOTREST BRACKET REAR R/S 07

6250304900033S

Unavailable

36

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

38

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

39

Footrest cmpl. r/s rear 03

60003051000

Unavailable

46

PLUG ZK 8/5 06

60103088000

Unavailable

50

FOOT PEG L/S SILVER 02

59003040250

Unavailable

51

FOOT PEG R/S SILVER 02

59003041250

Unavailable

52

FOOTREST RUBBER FRONT L/S 03

60003040010

Unavailable

53

FOOTREST RUBBER FRONT R/S 03

60003041010

Unavailable

54

CLOSING PANEL FRONT L/S R/S 03

60003044010

Unavailable

55

Self locking nut DIN 985 M5

0985050003

Unavailable

56

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

57

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

58

washer DIN 125 A 10.5

0125100003

Unavailable

59

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

60

CAGE NUT M8

60003095100

Unavailable

61

CAGE NUT M6 SL K100-1 1,5MM

60011038000

Unavailable

62

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

63

clip nut M6

54603048100

Unavailable

64

COUNTERSUNK SCREW ISA45 M10X23

0019100239S

Unavailable

65

BLIND RIVET NUT M8 HUC/ROF 5 0

61003002080

Unavailable

15

PLUG SFL28 05

61003088000

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

Unavailable

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable
