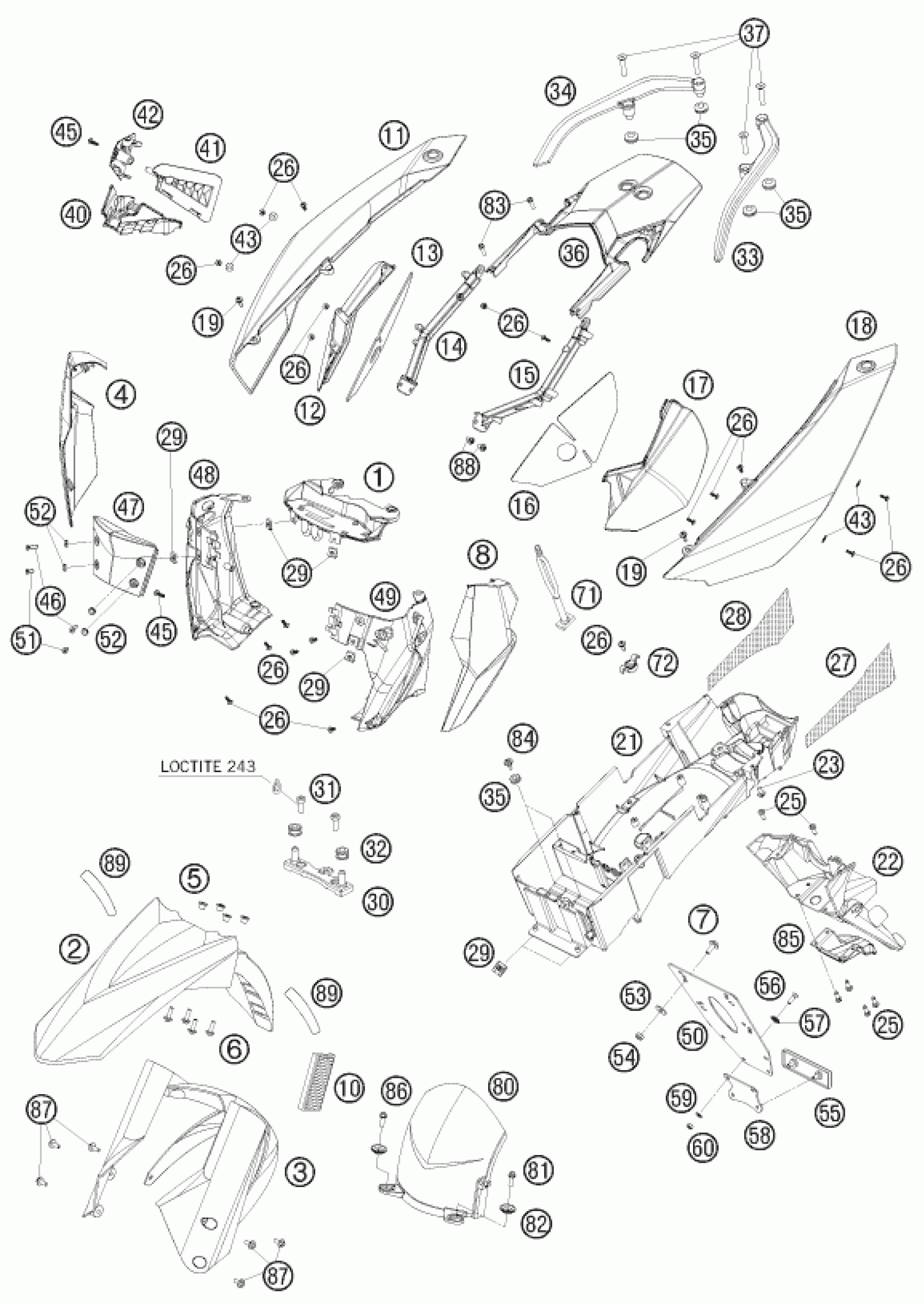

KTM 990 SUPERMOTO ORANGE 2009 MASK, FENDERS Diagram

#

Description
Price

89

PROTECTIVE FOIL SET CARRIER

62508010030

$15.42

1

SPEEDOMETER SUPPORT 08

62608006033

$13.67

88

HH collar screw M6x13 TX30

0024060136

$3.08

2

FENDER FRONT ORANGE 05

6250801000004

$58.94

3

SPLASH PROTECT. 05

62501094000

$53.57

4

MASK SPOILER R/S 08

6260800200004

Unavailable

5

COLLAR BUSHING 7,2X10X15X8,5

62508009000

$5.23

6

HH collar screw M6x20 TX30

0024060206

$3.08

7

HH collar screw M6x15 TX30

0024060156

$3.08

8

MASK SPOILER L/S 08

6260800300004

Unavailable

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

11

SIDE COVER R/REAR 09

6260804210004

Unavailable

12

THERMAL SHIELD

62605091100

Unavailable

13

THERMAL PROT. FOIL R/S 08

62605091050

Unavailable

14

SUPPORT SIDECOVER RS REAR 09

62608042150

$6.79

15

SUPPORT SIDE COVER LS REAR 09

62608041150

$8.03

16

THERMAL PROT. FOIL L/S 08

62605090050

Unavailable

17

THERMAL SHIELD

62605090100

Unavailable

18

SIDE COVER L/REAR 09

6260804110004

Unavailable

19

special screw M5x17

69008021060

$3.08

21

REAR END LOWER PART 08

62508019400

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

$60.58

25

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

26

EJOT PT screw K50x12

0081050121

$2.05

27

THERMAL PROTECTON FOIL L/S 07

62508019250

$12.61

28

THERMAL PROTECTON FOIL R/S 07

62508019360

$8.36

29

RANGE CHANGE METAL NUT M5

54603048200

$5.23

30

MASK SUPPORT BOTTOM 05

62514064000

$8.36

31

Cap head bold ISO 14580 M6x16

014580060166

$2.05

32

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08

33

HAND GRIP L/S

6301210800001S

Unavailable

34

HAND GRIP R/S

6301210900001S

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

$4.11

36

FENDER REAR BLACK 08

6260801300030

$10.97

37

countersunk screw M8x45 TX45

0019080456

$4.11

40

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

41

COVER STEARING HEAD UP.L/S

62603085000

$5.23

42

COVER STEARING HEAD UP.R/S

62603086000

$3.12

43

Washer tail section UT D=14mm

75008023000

$3.08

45

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

46

COUNTERSUNK SCREW ISA25 M5X20

0019050201

$2.05

47

MASK FRONT PART 08

62608001000

$16.98

48

MASK REAR PART R/S 08

62608004000

$55.94

49

MASK REAR PART L/S 08

62608005000

$54.90

50

license plate mouning plate

60012081200

$8.41

51

COUNTERSUNK SCREW ISA25 M5X12

0019050121

$2.05

52

SPECIAL WASHER D=12MM 03

60008046000

$4.11

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

71

RUBBER L=145MM

50303018000

$6.44

72

SUPPORT TOOL SET 05

62508021000

$8.71

80

SPLASH PROTECT. 05

61008014000

$30.57

81

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

82

BUCKET

72210079000

$3.00

83

HH collar screw M6x12 TX30

0025060126

$3.08

84

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

85

COVER NUMB. PLATE CARRIER

62608015001

$6.07

86

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

23

HH collar screw M6x13 TX30

0024060136

$3.08

87

SPECIAL SCREW M6X18 ISA30 08

69014017000

$4.11
