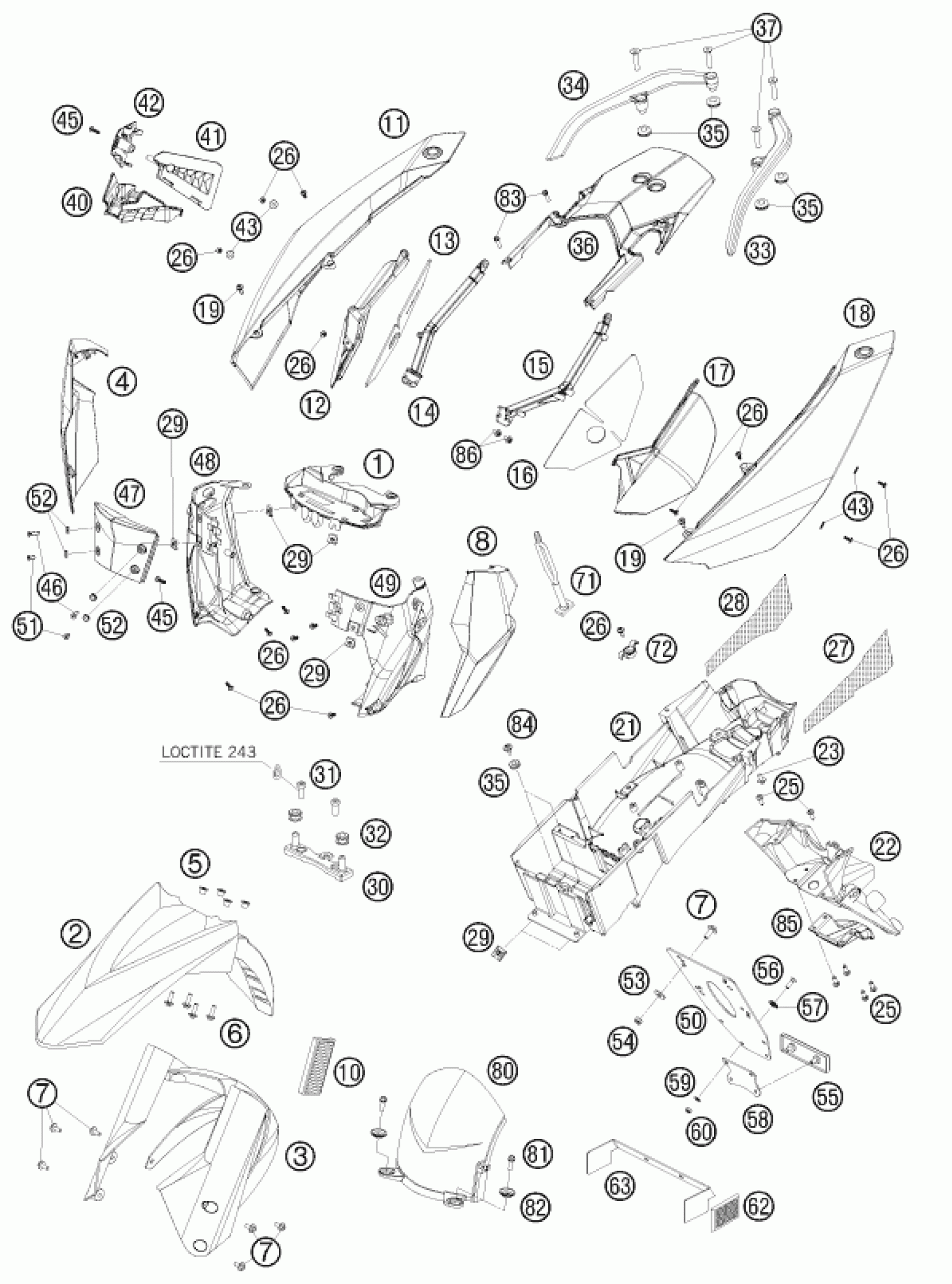

KTM 990 SUPERMOTO ORANGE 2008 MASK, FENDERS Diagram

#

Description
Price

47

MASK FRONT PART 08

62608001000

Unavailable

8

MASK SPOILER L/S 08

6260800300004

Unavailable

4

MASK SPOILER R/S 08

6260800200004

Unavailable

48

MASK REAR PART R/S 08

62608004000

Unavailable

49

MASK REAR PART L/S 08

62608005000

Unavailable

30

MASK SUPPORT BOTTOM 05

62514064000

Unavailable

29

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

46

COUNTERSUNK SCREW ISA25 M5X20

0019050201

Unavailable

51

COUNTERSUNK SCREW ISA25 M5X12

0019050121

Unavailable

52

SPECIAL WASHER D=12MM 03

60008046000

Unavailable

33

HAND GRIP L/S

6301210800001S

Unavailable

34

HAND GRIP R/S

6301210900001S

Unavailable

43

Washer tail section UT D=14mm

75008023000

Unavailable

84

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

85

COVER NUMB. PLATE CARRIER

62608015001

Unavailable

26

EJOT PT screw K50x12

0081050121

Unavailable

19

special screw M5x17

69008021060

Unavailable

83

HH collar screw M6x12 TX30

0025060126

Unavailable

36

FENDER REAR BLACK 08

6260801300030

Unavailable

16

THERMAL PROT. FOIL L/S 08

62605090050

Unavailable

13

THERMAL PROT. FOIL R/S 08

62605091050

Unavailable

86

HH collar screw M6x13 TX30

0024060136

Unavailable

23

HH collar screw M6x13 TX30

0024060136

Unavailable

31

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

32

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

12

HEAT SHIELD R/S 08

62605091000

Unavailable

14

SUPPORT SIDE COVER R/S REAR 08

62608042050

Unavailable

15

SUPPORT SIDE COVER L/S REAR 08

62608041050

Unavailable

17

HEAT SHIELD L/S 08

62605090000

Unavailable

11

SIDE COVER R/S REAR 08

6260804200004

Unavailable

18

SIDE COVER L/S REAR 08

6260804100004

Unavailable

62

SIDE REFLECTOR RED REAR

16512180100

Unavailable

63

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

1

SPEEDOMETER SUPPORT 08

62608006033

Unavailable

3

SPLASH PROTECT. 05

62501094000

Unavailable

2

FENDER FRONT ORANGE 05

6250801000004

Unavailable

5

COLLAR BUSHING 7,2X10X15X8,5

62508009000

Unavailable

6

HH collar screw M6x20 TX30

0024060206

Unavailable

7

HH collar screw M6x15 TX30

0024060156

Unavailable

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

21

REAR END LOWER PART 08

62508019400

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

Unavailable

25

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

27

THERMAL PROTECTON FOIL L/S 07

62508019250

Unavailable

28

THERMAL PROTECTON FOIL R/S 07

62508019360

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

Unavailable

37

countersunk screw M8x45 TX45

0019080456

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

41

COVER STEARING HEAD UP.L/S

62603085000

Unavailable

42

COVER STEARING HEAD UP.R/S

62603086000

Unavailable

45

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

50

license plate mouning plate

60012081200

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable

71

RUBBER L=145MM

50303018000

Unavailable

72

SUPPORT TOOL SET 05

62508021000

Unavailable

80

SPLASH PROTECT. 05

61008014000

Unavailable

81

HH collar screw M6x16 TX30

0025060166

Unavailable

82

BUCKET

72210079000

Unavailable
