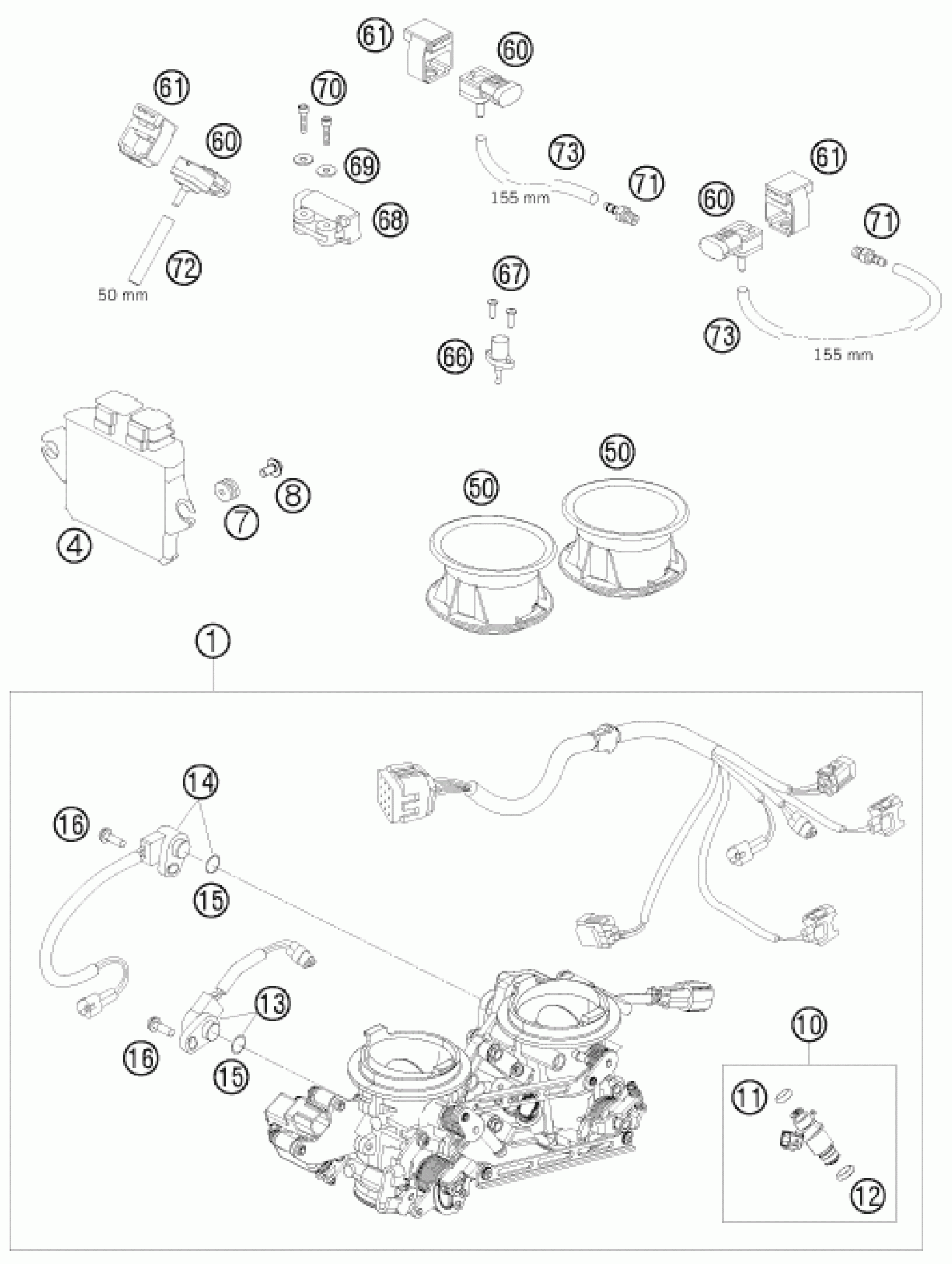

KTM 990 SUPERMOTO BLACK 2009 THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY CPL. 05

61041001000

Unavailable

4

ELECTRONIC CONTROL UNIT

61041031200

Unavailable

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

8

COLLAR SCREW M6X12 TX

0023060123

Unavailable

50

INTAKE TRUMPET 05

61041040000

Unavailable

60

PRESSURE SENSOR 06

61041085100

Unavailable

61

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

66

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

67

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

68

ROLLOVER SENSOR 05

61041088000

Unavailable

69

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

Unavailable

70

AH SCREW DIN 912-M 4X20

0912040203

Unavailable

71

VACUUM CONECTION 2006

61036023100

Unavailable

72

HOSE 3,2X8,5 L=50 MM 05

61041095050

Unavailable

73

HOSE 32X8,5 L=155MM 08

62541095155

Unavailable

13

THROTTLE POS. SENSOR CPL.

61041077000

Unavailable

14

THROTTLE POS. SENSOR CPL.

61041177000

Unavailable

15

O-RING THROTTLE POS. SENSOR

61041077010

Unavailable

16

SCREW THROTTLE POS. SENSOR

61041077020

Unavailable

10

INJECTOR CPL. 08-13

61041023044

Unavailable

11

O-RING INJECTOR

61041023010

Unavailable

12

O-RING INJECTOR

61041023020

Unavailable
