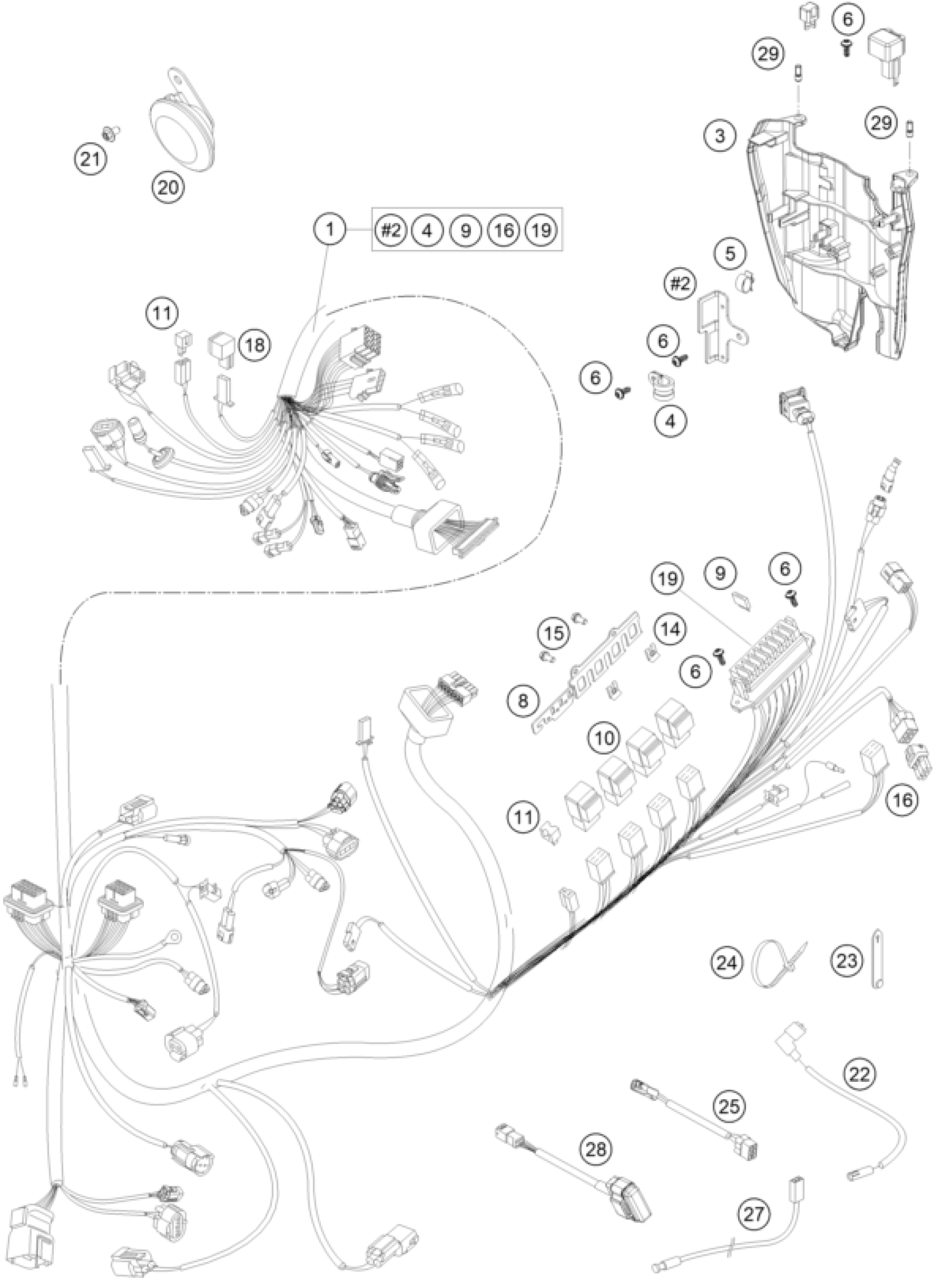

KTM 990 SUPERMOTO BLACK 2008 WIRING HARNESS Diagram

#

Description
Price

5

WIRING HOLDER 16MM

57013072100

$1.49

28

STARTER INTERLOCK

61111020000

$97.89

1

MAIN WIRING HARNESS 990 SM 08

62611075000

$580.24

3

BRACKET FOR PLUGS CPL. 08

62608032000

$12.54

4

CLAMP RSGU 18/15 03

59007439000

$5.79

6

EJOT PT screw K50x12

0081050121

$2.05

8

BRACKET RELAY 05

62511057050

$12.19

9

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

DIODE S3H-15 97

58411096100

$9.81

14

RANGE CHANGE METAL NUT M5

54603048200

$5.23

15

HH collar screw M5x12 TX30

0025050126

$3.08

18

FLASHER UNIT 97

44611207200

$49.83

19

FUSE-BOX COVER

58511075510

$12.61

20

DC HORN 05

62511060000

$30.85

21

HH collar screw M6x15 TX30

0024060156

$3.08

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

23

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

24

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

27

TEMPERATURE SENSOR 07

61111018000

$31.59

25

CABLE FOR ROLLOVER SENSOR 08

62611047000

$16.92

16

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

29

STYLUSES FOR COVER

62608032050

$1.49
