THROTTLE BODY

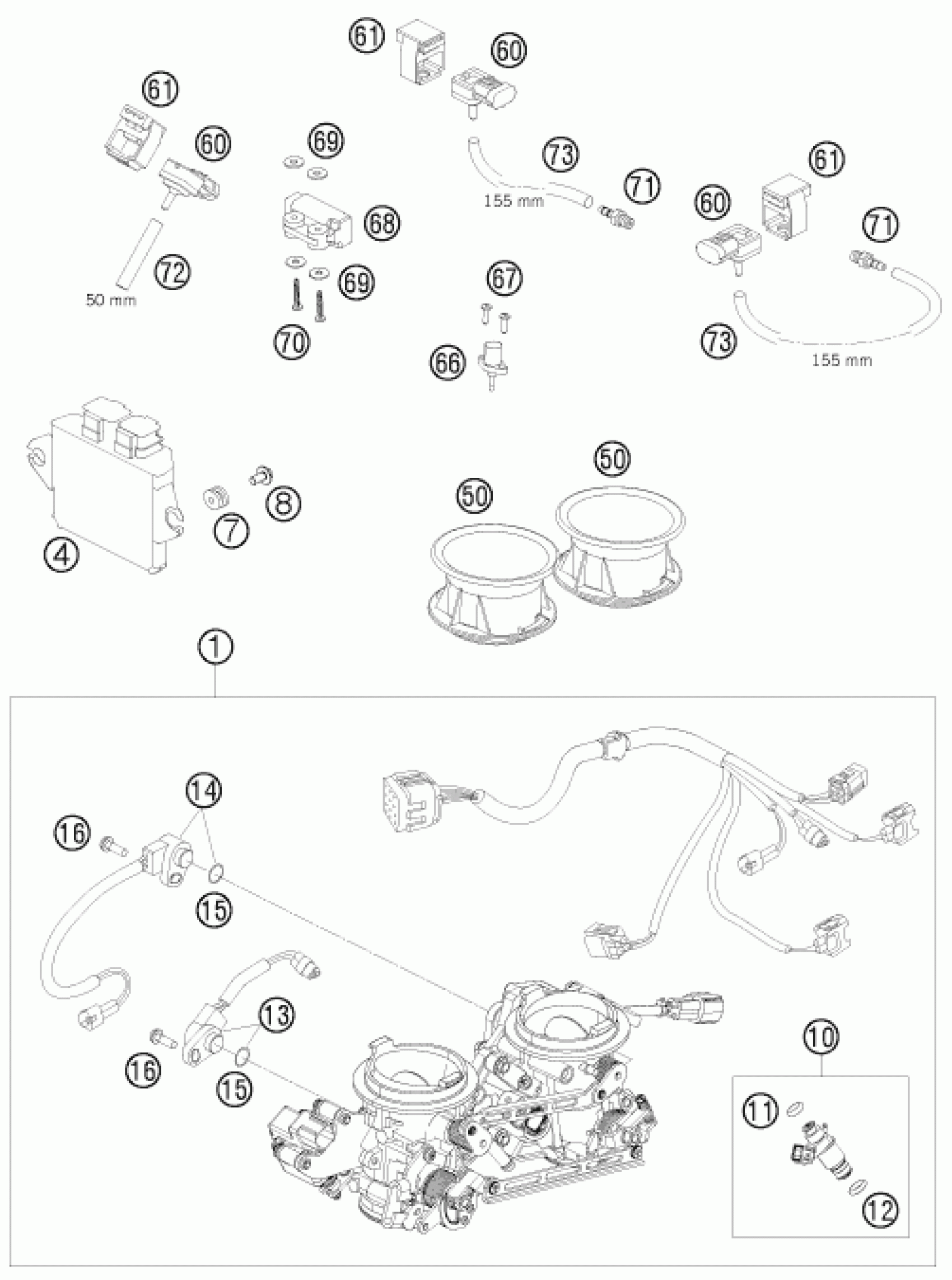

KTM 990 SUPERMOTO BLACK 2008 THROTTLE BODY Diagram
#
Description
Price
71
VACUUM CONECTION 2006
61036023100
$10.46
72
HOSE 3,2X8,5 L=50 MM 05
61041095050
$6.54
73
HOSE 32X8,5 L=155MM 08
62541095155
$4.11
1
THROTTLE BODY CPL. 05
61041001000
$1,393.89
4
ELECTRONIC CONTROL UNIT
61041031200
$703.02
7
VIBRATION DAMPER DIGITALBOX 03
60039030000
$3.08
8
COLLAR SCREW M6X12 TX
0023060123
$2.05
50
INTAKE TRUMPET 05
61041040000
$9.81
60
PRESSURE SENSOR 06
61041085100
$144.36
61
RUBBER SUPP. PRESSURE SENS. 06
61041085150
$5.23
66
AMBIENT-AIR TEMPERATURE SENSOR
61041080000
$23.74
67
SCREW FOR PLASTIC D=5X18
0081500181
$2.05
68
ROLLOVER SENSOR 05
61041088000
$67.69
69
SHIM 4,3X15X1,25MM GALVANIZED
61041088050
$1.49
70
PLASTIC SCREW KA40X25WN1412
0081400253
$1.49
13
THROTTLE POS. SENSOR CPL.
61041077000
$145.29
14
THROTTLE POS. SENSOR CPL.
61041177000
$125.00
15
O-RING THROTTLE POS. SENSOR
61041077010
$5.23
16
SCREW THROTTLE POS. SENSOR
61041077020
$3.08
12
O-RING INJECTOR
61041023020
$7.56
10
INJECTOR CPL. 08-13
61041023044
$208.96
11
O-RING INJECTOR
61041023010
$7.10
