REAR WHEEL

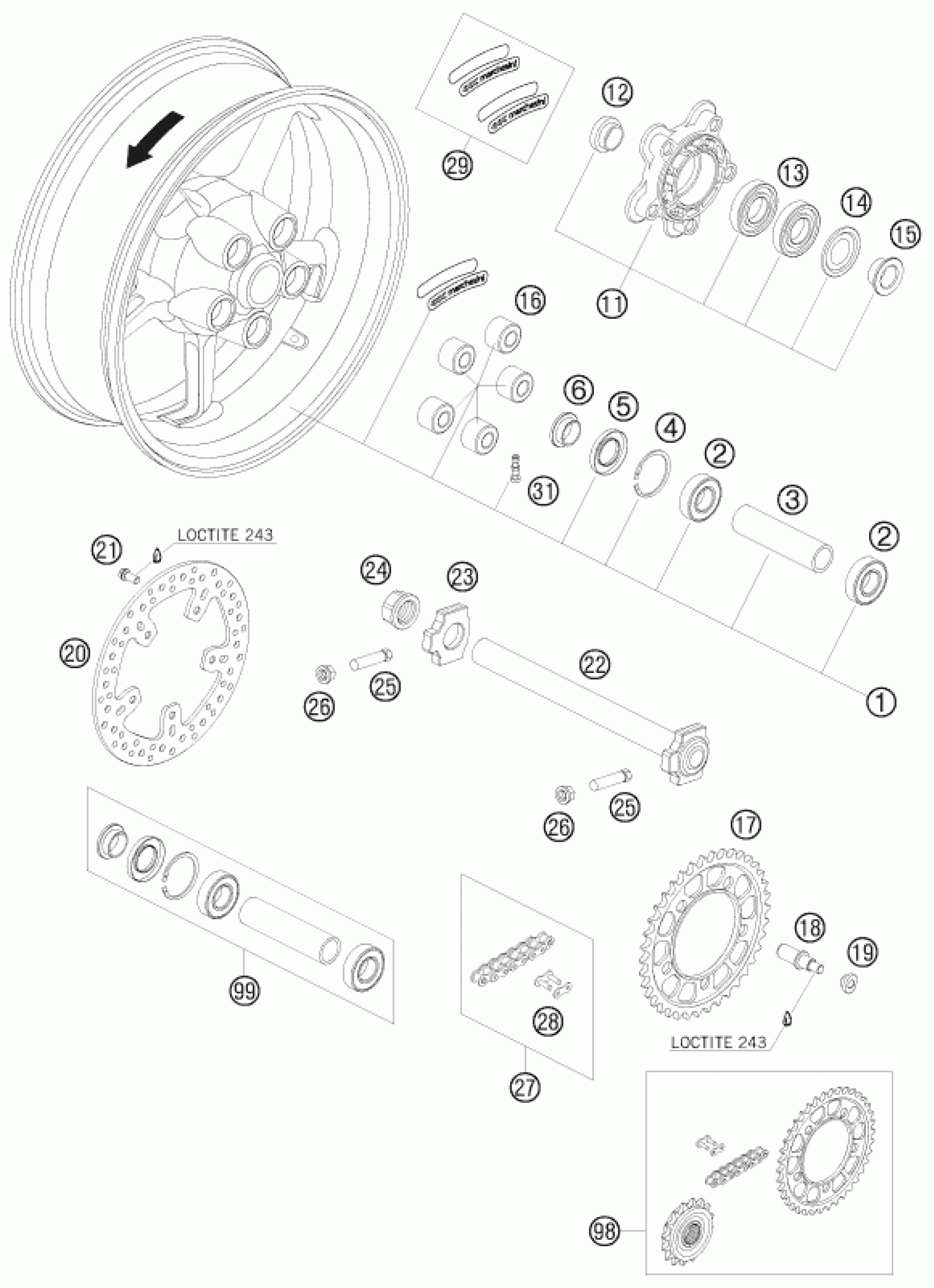

KTM 990 SUPERMOTO BLACK 2008 REAR WHEEL Diagram
#
Description
Price
1
REAR WHEEL CPL. BLACK 07
6101000104430
$1,218.95
2
Grooved ball bear. 6205-2RSHC3
0625062052
$30.85
3
BEARING SPACER TUBE REAR 05
61010011000
$18.20
4
CIRCLIP DIN0472-52X2
0472052200
$3.08
5
Radial shaft seal 30X52X7
0760305271
$5.23
6
SPACER BUSH. REAR WHEEL R/S 03
60010013000
$10.70
11
SPROCKET SUPPORT CPL. 06
61010050144
$197.95
12
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
$17.38
13
BALL BEARING 6006 DDU2CG23S6NM
0625060060
$18.69
14
NILOS RING 6006AV
60110016000
$9.72
15
SPACER BUSH. SPROCKET SUPP. 06
60110012000
$20.09
16
DAMPING RUBBER 05
61010059000
$16.63
17
REAR SPROCKET 38-T STEEL 05
61010051138
Unavailable
17
REAR SPROCKET 39-T STEEL 05
61010051139
Unavailable
17
REAR SPROCKET 40-T STEEL 05
61010051140
Unavailable
17
REAR SPROCKET 41-T STEEL 05
61010051141
$75.45
17
REAR SPROCKET 42-T STEEL 05
61010051142
Unavailable
18
BOLT FOR SPROCKET SUPPORT 05
61010056000
$6.35
19
NUT REAR SPROCKET 05
61010057000
$4.11
20
BRAKE DISK REAR D=240MM 05
61010060000
$147.07
21
SPECIAL SCREW M8X18 05
61009062018
$4.11
22
WHEEL SPINDLE REAR CPL. 03
60010081044
$56.09
23
Chain tension adjuster, right,
60010084000
$22.81
24
Collar nut M25X1.5 WS=32 05
61010086000
$17.20
25
screw M10x1.25x50 WS10
50304040100
$5.23
26
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
31
VALVE CPL. BREMBO DUKE 2003
58709076000
$8.69
27
CHAIN 525 WITH MASTER LINK 03
60010165118
$231.40
28
MASTER LINK FOR CHAIN 525 03
60010066000
Unavailable
29
STICKER MARCH. 2L/S+2R/S WHITE
00050000120
$13.74
99
REAR WHEEL REP. KIT
61010015000
Unavailable
98
DRIVETRAIN KIT SM/SMR 17T/41T
00050002012
Unavailable
