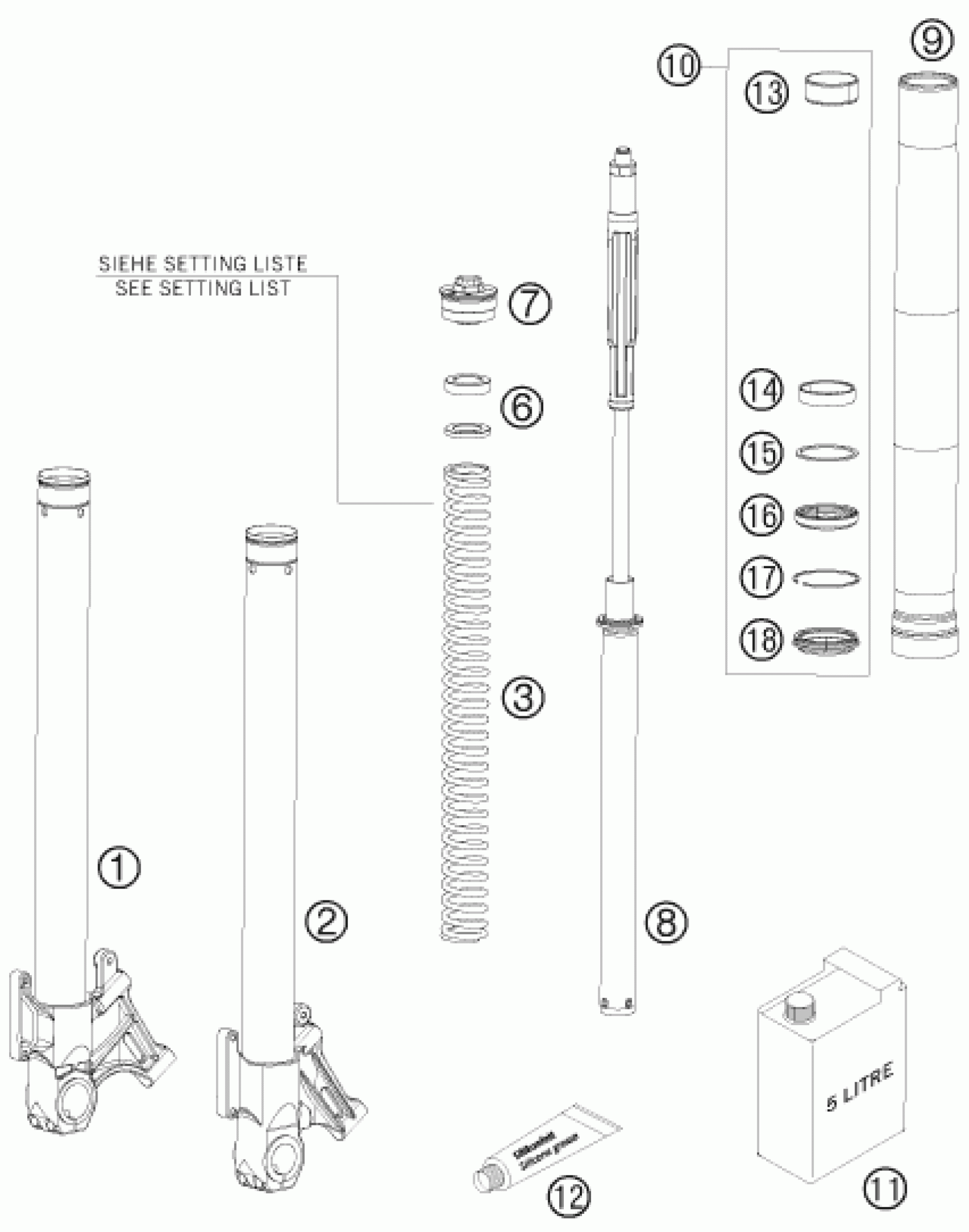

KTM 990 SUPERMOTO BLACK 2008 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

11

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

12

SILICONE GREASE F. DUST STRI

T511

Unavailable

1

AXLE CLAMP R/S CPL. 05

48600482S1

Unavailable

2

AXLE CLAMP L/S CPL. 05

48600483S1

Unavailable

3

SPRING D43,2 L450 6,2N/MM D5,5

91410066S

Unavailable

6

Preload bush 26,5x42x1,5

48600053

Unavailable

6

Preload bush 42x26,5x2,5

48600036

Unavailable

6

Preload bush 26,5x42x5

48600037

Unavailable

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

Unavailable

8

CARTRIDGE CPL. FOR SPRING D5.5

48600502S1

Unavailable

9

OUTER TUBE L=550MM D=54/60

48600484

Unavailable

10

REPAIR-KIT GASKET 05

R14011

Unavailable

13

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

14

DU-BUSH D48XD52X12DDL02

48600429

Unavailable

15

Supportwasher 50x57,6x1,5

48600013

Unavailable

16

Shaft seal SKF 48x57,8x9,5 bla

48600399

Unavailable

17

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

18

DUST CAP D=48 58,4X11,8

48600400

Unavailable

3

SPRING 5,9 N/MM SET D=5,5MM

91410045S

Unavailable

3

SPRING D43.2 L450 6.5N/MM D5.5

91410067S

Unavailable
