Description

Price

1

FRAME ''FC08'' BLACK 08

6260300100033

Unavailable

3

ENGINE SUPPORT L/S 07

6250300500001S

$87.49

4

ENGINE SUPPORT R/S 07

6250300600001S

$87.49

5

AH collar screw M10x24 ISA45

0035100249

$3.08

6

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

7

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

8

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

9

CHAIN SLIDING BLOCK 05

60004076100

$8.78

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

11

COVER ENGINE SUPPORT LEFT

62603005050

$4.11

12

COVER ENGINE

62603006050

$4.11

13

COUNTERSUNK SCREW ISA25 M5X12

0019050121

$2.05

14

COLLAR NUT M10 WS=13

54630044000

$1.49

19

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

21

retaining washer DIN 6799 - 6

0799060003

$1.49

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

24

RUBBER SLEEVE 03

60003098000

$4.11

25

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

26

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

27

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

28

LOCK WASHER 8MM

36003014000

$2.05

30

SUB FRAME PLATIN 08

6260300200092

Unavailable

31

COUNTERSUNK SCREW ISA45 M10X28

0019100289S

$5.23

32

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

34

FOOTREST BRACKET REAR L/S 07

6250304800001S

$103.24

35

FOOTREST BRACKET REAR R/S 07

6250304900001S

$97.51

36

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

38

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

39

Footrest cmpl. r/s rear 03

60003051000

$61.89

46

PLUG ZK 8/5 06

60103088000

$1.49

50

FOOT PEG L/S SILVER 02

59003040250

$43.66

51

FOOT PEG R/S SILVER 02

59003041250

$43.66

52

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

53

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

54

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

55

Self locking nut DIN 985 M5

0985050003

$2.05

56

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

57

FOOTREST SPRING L/S & R/S

54603041000

$5.23

58

washer DIN 125 A 10.5

0125100003

$2.05

59

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

60

CAGE NUT M8

60003095100

$2.05

61

CAGE NUT M6 SL K100-1 1,5MM

60011038000

$2.32

2

PLASTIC CAP SFL10

54403135000

$2.05

63

clip nut M6

54603048100

$4.11

64

COUNTERSUNK SCREW ISA45 M10X23

0019100239S

$4.11

62

RANGE CHANGE METAL NUT M8

54603048000

$4.11

65

BLIND RIVET NUT M8 HUC/ROF 5 0

61003002080

$6.26

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

$12.52

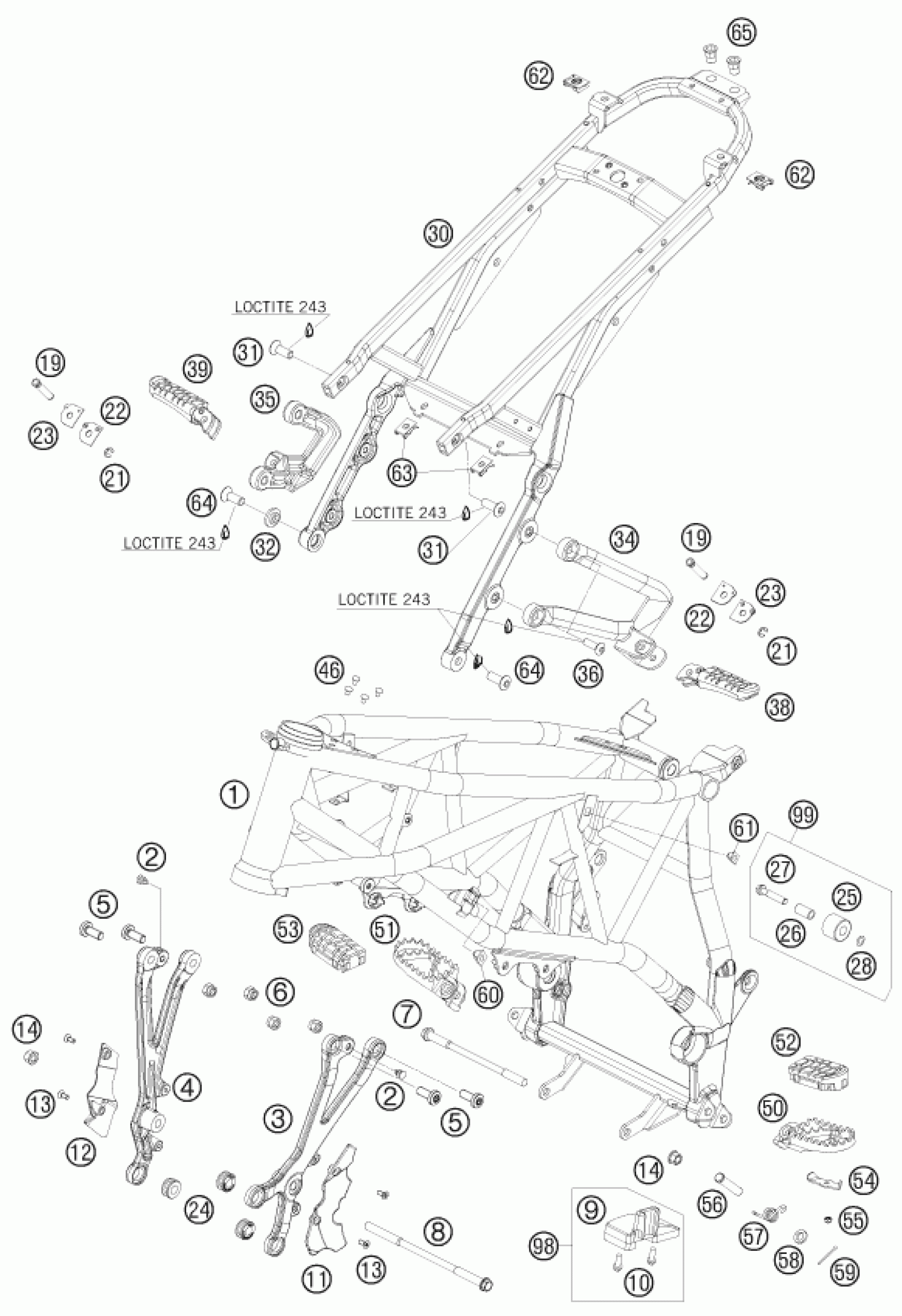

KTM 990 SUPERMOTO BLACK 2008 FRAME Diagram

FRAME ''FC08'' BLACK 08

ENGINE SUPPORT L/S 07

ENGINE SUPPORT R/S 07

AH collar screw M10x24 ISA45

SELF LOCKING NUT M10 CU WS=14

ENGINE BRAC. SCREW M10X172 03

ENGINE BRAC. SCREW M10X206 03

CHAIN SLIDING BLOCK 05

EJOT PT SCREW K60X20 ALU WS=6

COVER ENGINE SUPPORT LEFT

COVER ENGINE

COUNTERSUNK SCREW ISA25 M5X12

COLLAR NUT M10 WS=13

BOLT FOR FOOTREST REAR 03

retaining washer DIN 6799 - 6

ENGAGE PANEL FOOTREST L/S 03

ENGAGE PANEL FOOTREST R/S 03

RUBBER SLEEVE 03

CHAIN ROLL 12X29X22,5 '98

BUSH CHAIN ROLL 8X12X23 '98

HH COLLAR SCREW M8X40 TX40

LOCK WASHER 8MM

SUB FRAME PLATIN 08

COUNTERSUNK SCREW ISA45 M10X28

COLLAR BUSHING 10X15X25X4 03

FOOTREST BRACKET REAR L/S 07

FOOTREST BRACKET REAR R/S 07

COUNTER-SUNK SCREW ISA45 M8X26

FOOTREST CPL. L/S REAR 03

Footrest cmpl. r/s rear 03

PLUG ZK 8/5 06

FOOT PEG L/S SILVER 02

FOOT PEG R/S SILVER 02

FOOTREST RUBBER FRONT L/S 03

FOOTREST RUBBER FRONT R/S 03

CLOSING PANEL FRONT L/S R/S 03

Self locking nut DIN 985 M5

PIN FOR FOOT PED 51.5X9.8 MM

FOOTREST SPRING L/S & R/S

washer DIN 125 A 10.5

PIN DIN0094-3,2X25 STEEL

CAGE NUT M8

CAGE NUT M6 SL K100-1 1,5MM

PLASTIC CAP SFL10

clip nut M6

COUNTERSUNK SCREW ISA45 M10X23

RANGE CHANGE METAL NUT M8

BLIND RIVET NUT M8 HUC/ROF 5 0

CHAIN SLIDING KIT BELOW

CHAIN ROLL KIT 06-13
