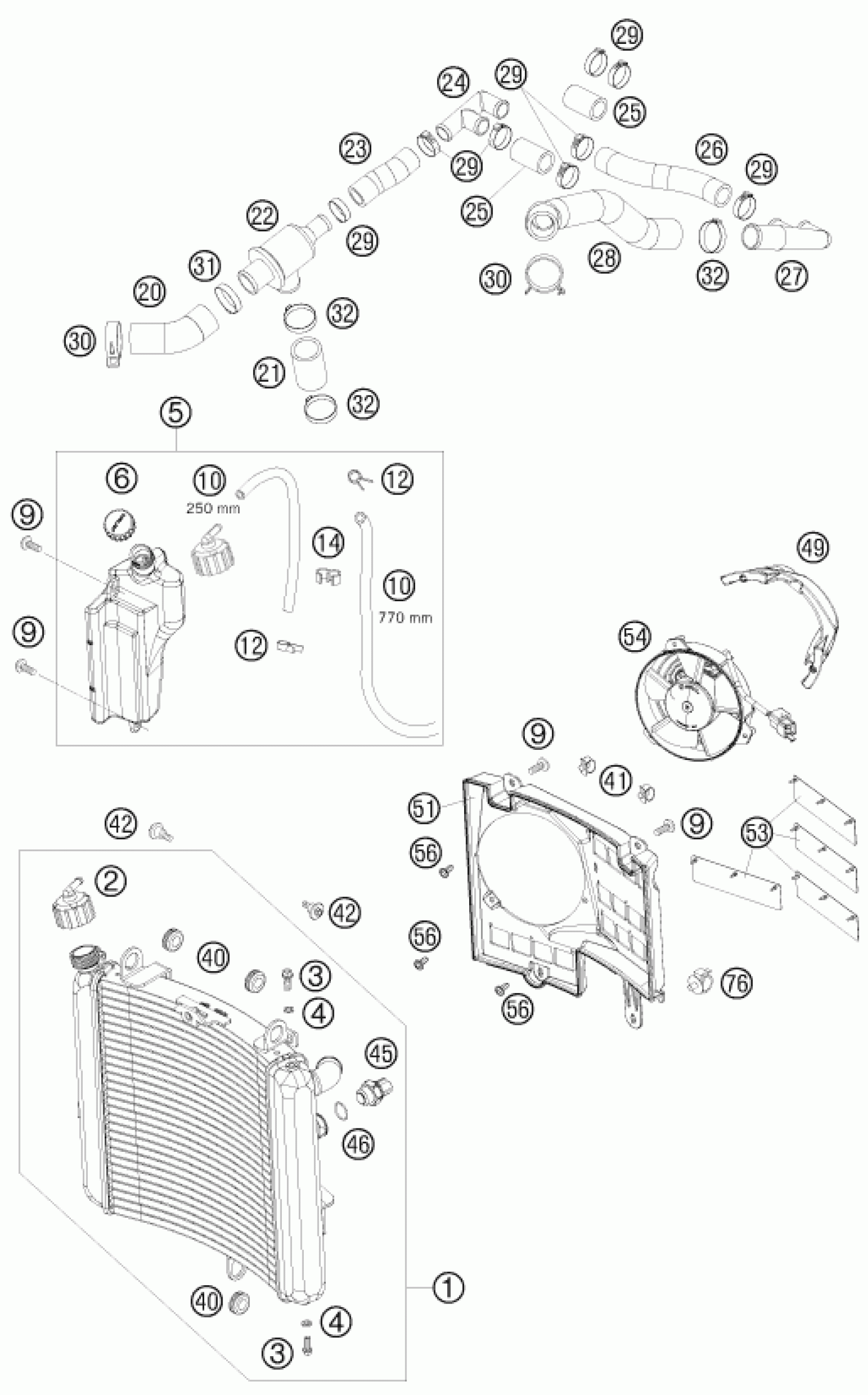

KTM 990 SUPERMOTO BLACK 2008 COOLING SYSTEM Diagram

#

Description
Price

21

RADIATOR HOSE THERM./PUMP 03

60035030000

$11.96

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

$62.64

23

RADIATOR HOSE THERM./DISTR. 05

62535025000

$9.34

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

$5.10

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

$10.46

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

$18.41

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

$12.99

28

RADIATOR HOSE ´08

62635024000

$12.15

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

$3.08

30

CLAMP STD DN32

00049320121

$4.11

1

RADIATOR 990 SM

62635010000

$528.47

2

RADIATOR CAP 1,4 BAR

62535009000

$25.42

3

HH collar screw M6x10 TX30

0025060106

$3.08

4

ALU-GASKET 6X10X1.5

60035048000

$3.08

5

EXPANSION RESERVOIR CPL. 08

62635065000

$27.88

6

PLUG F. EXPANSION TANK

60035066000

$6.72

9

HH collar screw M6x15 TX30

0024060156

$3.08

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

12

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

20

RADIATOR HOSE THERM./DISTR. 05

63035031000

$12.33

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

$4.11

32

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

WIRING HOLDER 16MM

57013072100

$1.49

42

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

45

THERMOSWITCH 98 °C FOR FAN 03

58435045098

$38.23

46

O-ring 17X1.5

0770017015

$1.49

49

FAN CAP 08

62635044060

$4.35

51

FAN COWL SUPERMOTO EFI 08

62635044000

Unavailable

53

FAN CLACK RUBBER 08

62635044050

$8.03

54

VENTILATOR

62635041000

$142.39

56

EJOT PT SCREW K50X16 1451

0081050161

$1.49

14

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

76

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11
