Description

Price

1

BATTERY 12V/11AH 03

60011053000

$366.89

2

COVER POSITIVE POLE 06

62511059160

$4.35

3

BATTERY COVER 96

58411053050

$22.65

5

STARTER CABLE L=650MM 05

62511059000

$10.62

6

BATTERY CABLE L=125MM 05

62511059050

$12.05

7

GROUND CABLE L=650MM 05

62511097000

$9.79

8

Rubber grommet, starter port 0

60040009000

$3.08

9

CLAMP D=6/8MM, BLACK

55011022100

$2.05

10

Starter reley 12V 99

58211058000

$72.64

11

Plug-in fuse, big 30A

58011109130

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

13

BRACKET START RELAY 05

62511058050

$8.71

14

EJOT PT screw K50x12

0081050121

$2.05

15

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

16

Hex. nut DIN 934 M6

0934060003

$1.49

20

VOLTAGE REGULATOR

62511034100

$163.80

21

BRACKET VOLTAGE REGULATOR 05

62511037000

$17.74

22

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

4

RUBBER L=145MM

50303018000

$6.44

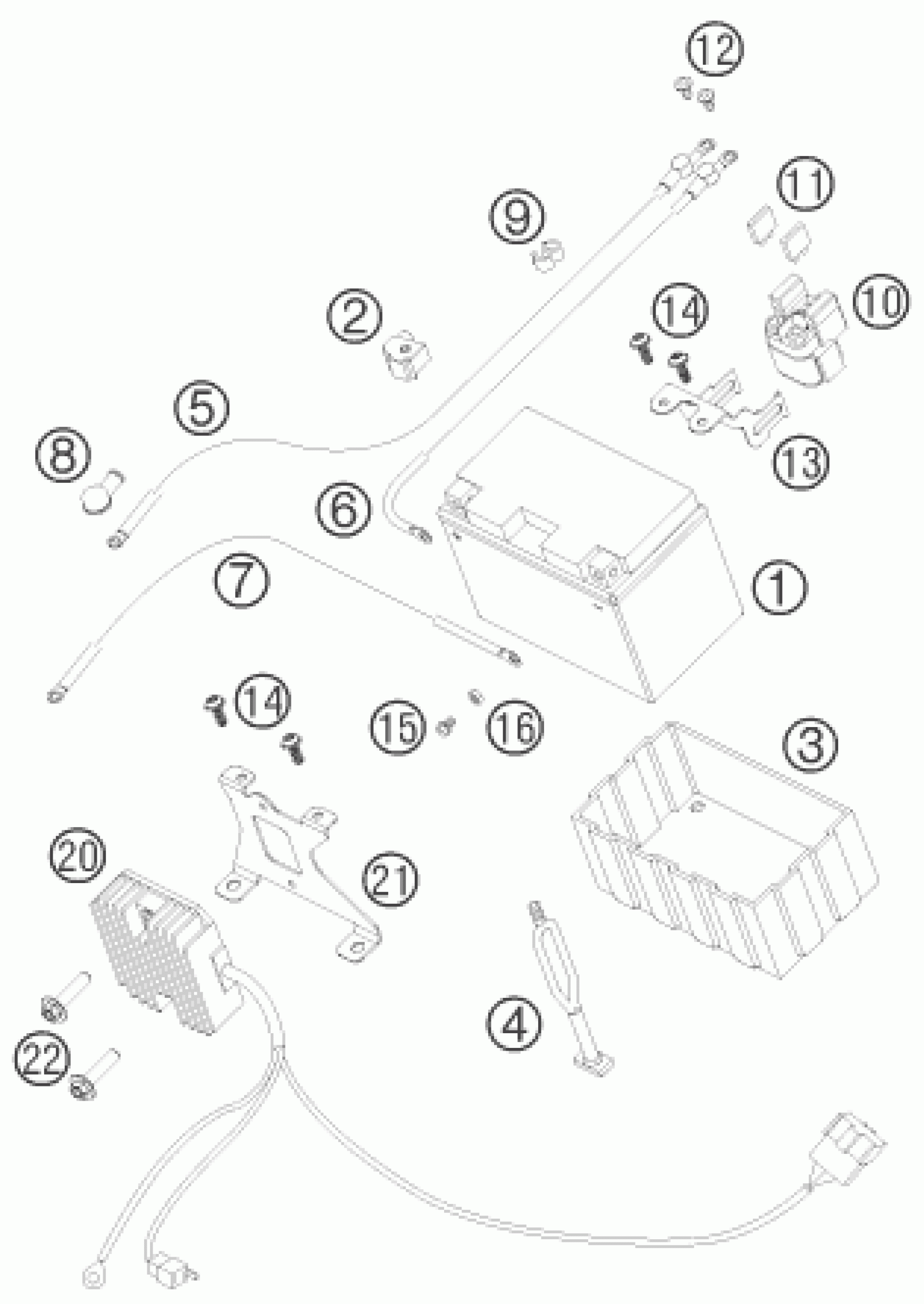

KTM 990 SUPERMOTO BLACK 2008 BATTERY Diagram

BATTERY 12V/11AH 03

COVER POSITIVE POLE 06

BATTERY COVER 96

STARTER CABLE L=650MM 05

BATTERY CABLE L=125MM 05

GROUND CABLE L=650MM 05

Rubber grommet, starter port 0

CLAMP D=6/8MM, BLACK

Starter reley 12V 99

Plug-in fuse, big 30A

Oval head screw ISO 7380 M 6X8

BRACKET START RELAY 05

EJOT PT screw K50x12

HH COLLAR SCREW M6X10 TX30

Hex. nut DIN 934 M6

VOLTAGE REGULATOR

BRACKET VOLTAGE REGULATOR 05

HH COLLAR SCREW M6X25 TX30

RUBBER L=145MM
