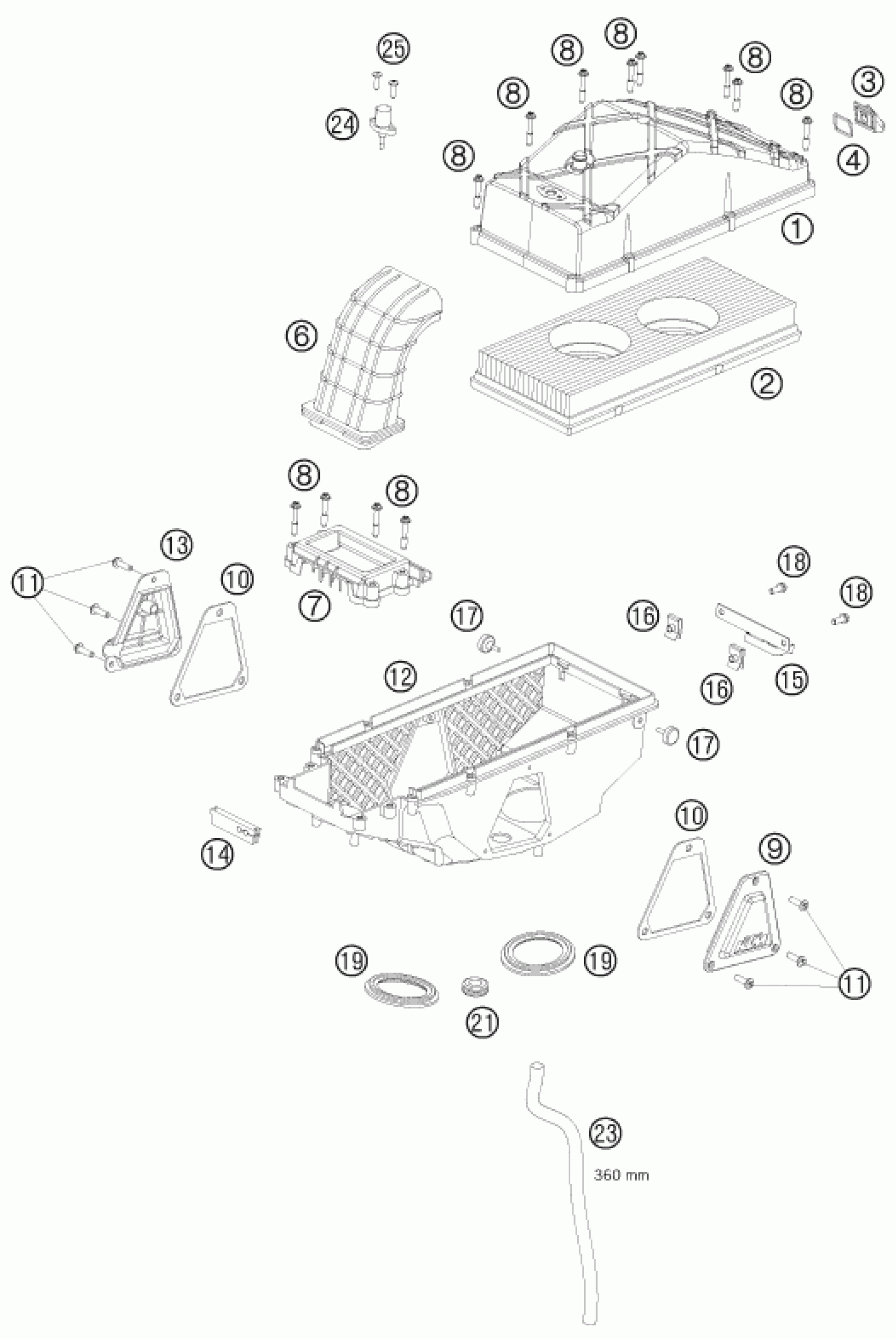

KTM 990 SUPERMOTO BLACK 2008 AIR FILTER Diagram

#

Description
Price

16

clip nut M6

54603048100

Unavailable

17

Distance rupper airbox 03

60006001021

Unavailable

18

HH collar screw M6x16 TX30

0025060166

Unavailable

19

RUBBER SLEEVE AIRBOX 03

60036045000

Unavailable

1

AIRBOX COVER 990 DUKE 04

61006002000

Unavailable

2

AIR FILTER EFI 05

61006015000

Unavailable

3

CONNECTOR FOR SAS LC8 03

60006007000

Unavailable

4

GASKET SAS CONNECTOR 03

60006007050

Unavailable

23

HOSE 10X14 PER METER

57005020001

Unavailable

6

INTAKE SNORKEL 03

60006040000

Unavailable

7

AIRBOX FRONT PART LC8 03

60006004000

Unavailable

8

SPECIAL SCREW K60X35/15 03

60006006000

Unavailable

9

AIRBOX COVER L/S R/S 03

60006003002

Unavailable

10

GASKET F. AIRBOX COVER L/S R/S

60006003050

Unavailable

13

AIRBOX COVER R/S EFI 05

61006003002

Unavailable

12

FILTER BOX LOWER PART 990 05

61006001000

Unavailable

21

RUBBER SLEEVE FUEL HOSE 03

60006001041

Unavailable

11

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

RUBBER SLEEVE F. THR. CABLE 05

61006001030

Unavailable

15

SAS-BRACKET PANEL 05

61006001020

Unavailable

24

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

25

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
