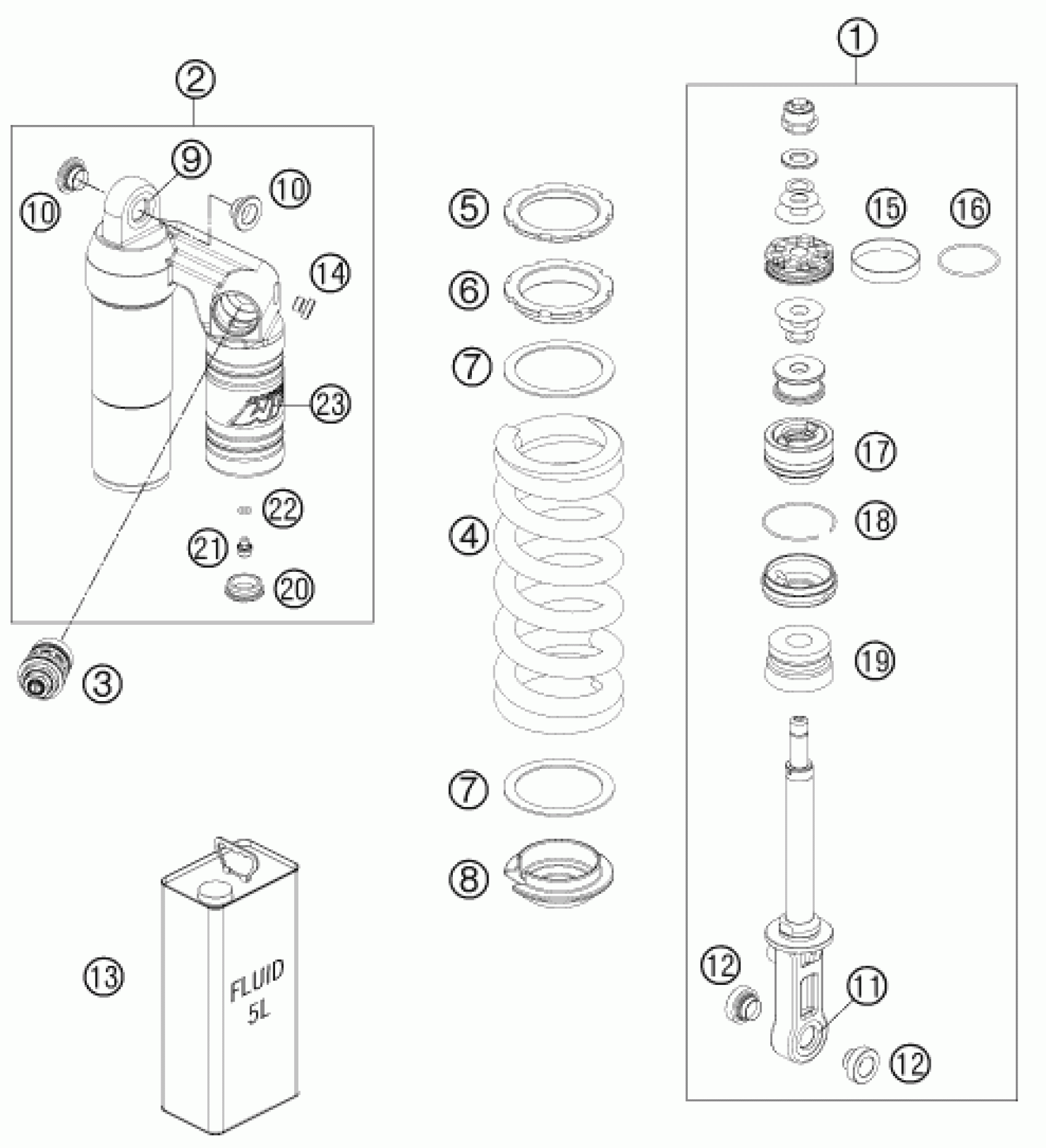

KTM 990 SUPERM. T BLACK ABS 2011 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK LOWER PART 990 SM-T

46180654S11

$461.20

2

SHOCK ABSORBER CASE CPL.

46180834SA

Unavailable

3

Compression cpl.

50180213S6

$333.34

4

SPRING 140-200(59)D13,5 ORANGE

91010301S

Unavailable

4

SPRING 150-200(59) D13,5ORANGE

91010302S

Unavailable

5

Lock nut shock M54x1,5

46180766

$26.83

6

Adjustment nut shock M54x1,5

46180765

$16.46

7

Washer 58,6x73,6x1,5

50180410

$4.11

8

Spring retainer 28x73x15

46180396

$61.42

9

Ball joint bearing kit top 12m

R12012

$35.71

10

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

11

BEARING KIT KGW 1525 990DUKE

R15009

$35.71

12

ADAPTOR BUSH KGW 14X32 07

46180362

$12.45

13

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

14

HS cylinder-head screw R1/8 l8

50180095

$2.42

15

PISTON RING

46810361

$4.01

16

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

17

Sealholder 46x28 cpl.

46180669S

$70.54

18

Round-wire snap ring 49x1,5

46810010

$3.08

19

Rubber pad 17,2x45,2x30 black

46180365

$56.84

20

Rubber cap do not open 22x5,5

46811208

$3.08

21

HS lock screw M5x6

36120151

$1.86

22

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

23

Sticker WP clear 35x55

52000086

$3.48
