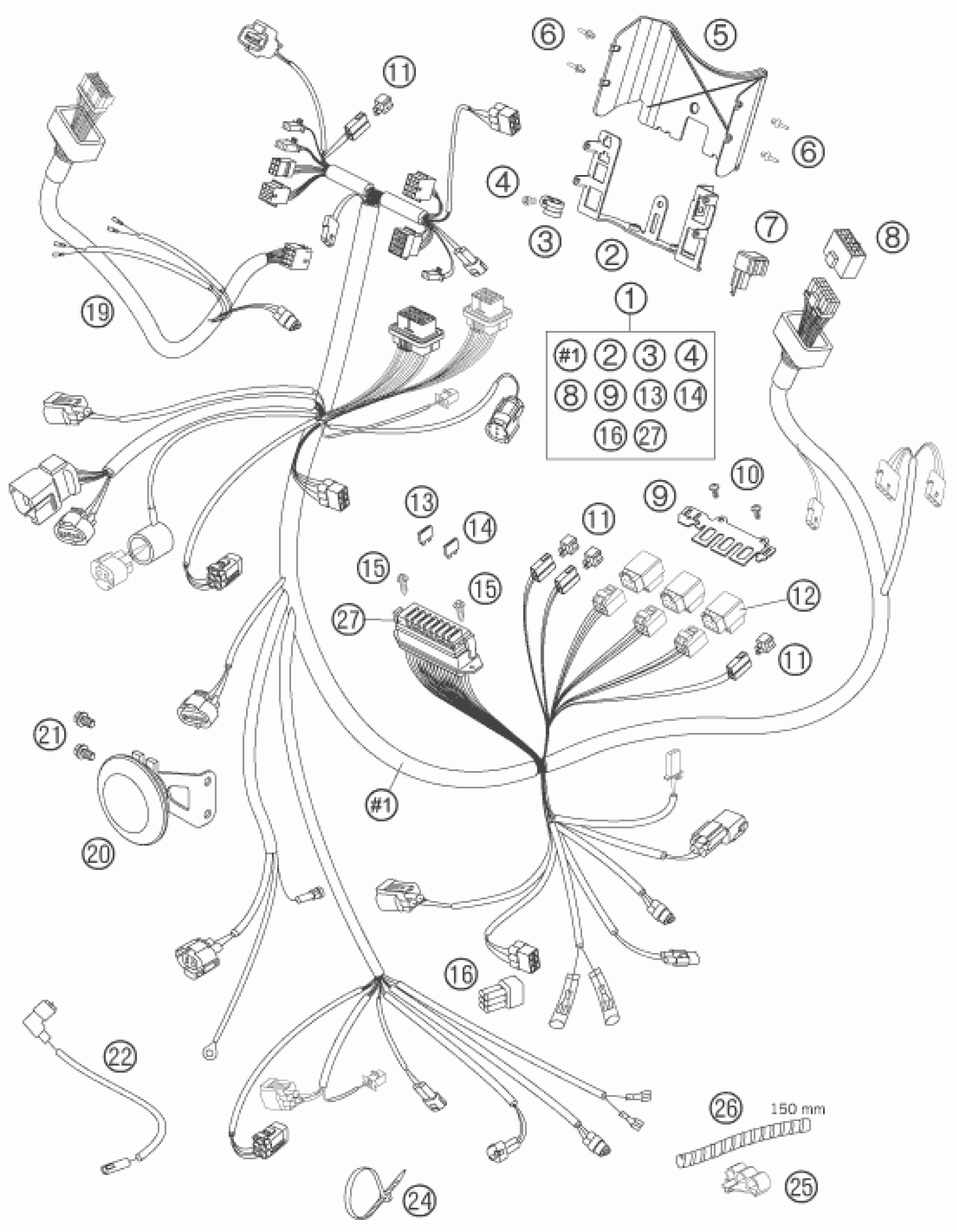

KTM 990 SUPERDUKE BLACK 2006 WIRING HARNESS Diagram

#

Description

Price

1

MAIN WIRING HARNESS 06

61011075100

Unavailable

2

BRACKET FOR PLUGS CPL. 05

61011083000

Unavailable

3

CLAMP RSGU 15/12

49007439000

Unavailable

4

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

5

BRACKET FOR PLUGS COVER 05

61011083020

Unavailable

6

PLASTIC CAP FOR M6 03

60003088000

Unavailable

7

FLASHER UNIT 97

44611207200

Unavailable

8

DUMMY PLUG ALARM SYSTEM 05

61011075020

Unavailable

9

BRACKET RELAY 05

61011057050

Unavailable

10

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

11

DIODE S3H-15 97

58411096100

Unavailable

12

STARTER RELAY '96

58411057000

Unavailable

13

Plug-in fuse, big 10A

58011109110

Unavailable

14

FUSE 15 A

58011109115

Unavailable

15

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

16

SPARE CONNECTOR BH 6-PINS

000700000BH

Unavailable

19

WIRING HARNESS FRONT 05

61011079000

Unavailable

20

DC HORN CPL. 05

61011060000

Unavailable

21

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

Unavailable

24

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

24

Cable tie 200/4.6mm black

44011076200

Unavailable

24

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

25

WIRING HOLDER 05

61011093000

Unavailable

26

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

27

FUSE-BOX COVER

58511075510

Unavailable
